RADIATOR HOSE
GSX1300RA HAYABUSA 2014 (L4) USA (E03)

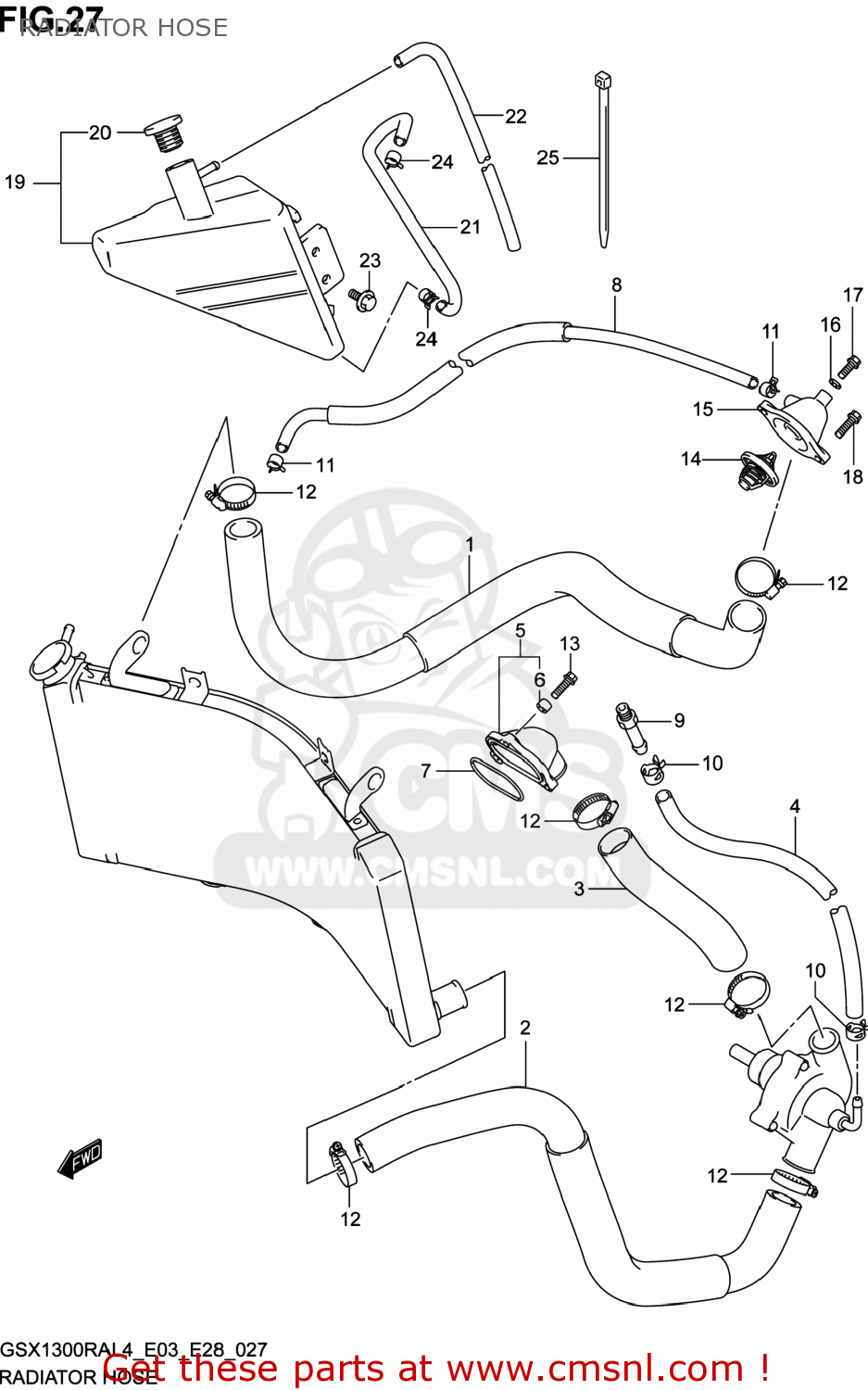

Radiator hose diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)
RADIATOR HOSE GSX1300RA HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1785115H00
ref: 1
HOSE,RADIATOR INLET
€ 49.00
2
1785215H00
ref: 2
HOSE,RADIATOR OUTLET
€ 41.50
3
1785324F00
ref: 3
HOSE,CYLINDERL INLET
€ 17.50
4
1785424F00
ref: 4
HOSE,WATER BYPASS NO.1
€ 15.00
5
1786133E20
ref: 5
CONNECTOR,CYLINDER WATER INLET
€ 19.00
6
0918006261
ref: 6
SPACER(6.5X9X8)
€ 2.00
7
1786333E00
ref: 7
O RING,CYL WATER CONNECTOR
€ 4.50
8
1785515H00
ref: 8
HOSE,WATER AIR BLEED
€ 25.00
9
0936209011
ref: 9
BOLT UNION
€ 6.00
10
0940112409
ref: 10
CLAMP
€ 3.00
11
0940110409
ref: 11
CLIP
€ 2.50
12
0940235501
ref: 12
CLAMP
€ 7.00
13
015470620A
ref: 13
BOLT
€ 2.50
14
1767015H00
ref: 14
THERMOSTAT,WATER
€ 29.50
15
1766135F00
ref: 15
COVER,THERMOSTAT
€ 33.00
16
0916806026
ref: 16
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
17
1756850F00
ref: 17
UNION BOLT,AIR VENT
€ 3.50
18
015470620A
ref: 18
BOLT
€ 2.50
19
1791015H00
ref: 19
TANK ASSY,RESERVOIR
€ 54.50
20
1793102FA0
ref: 20
CAP,RESERVOIR TANK
€ 4.50
21
1798115H00
ref: 21
HOSE,RESERVOIR TANK INLET
€ 11.50
22
1798222H00
ref: 22
HOSE,RESERVOIR TANK OVFL
€ 9.00
23
0911106085
ref: 23
BOLT(6X12)
€ 4.50
24
0940108411
ref: 24
CLIP
€ 3.00
25
0940714407
ref: 25
CLAMP(L:145)
€ 4.00
