GSX1300RA HAYABUSA 2014 (L4) USA (E03)

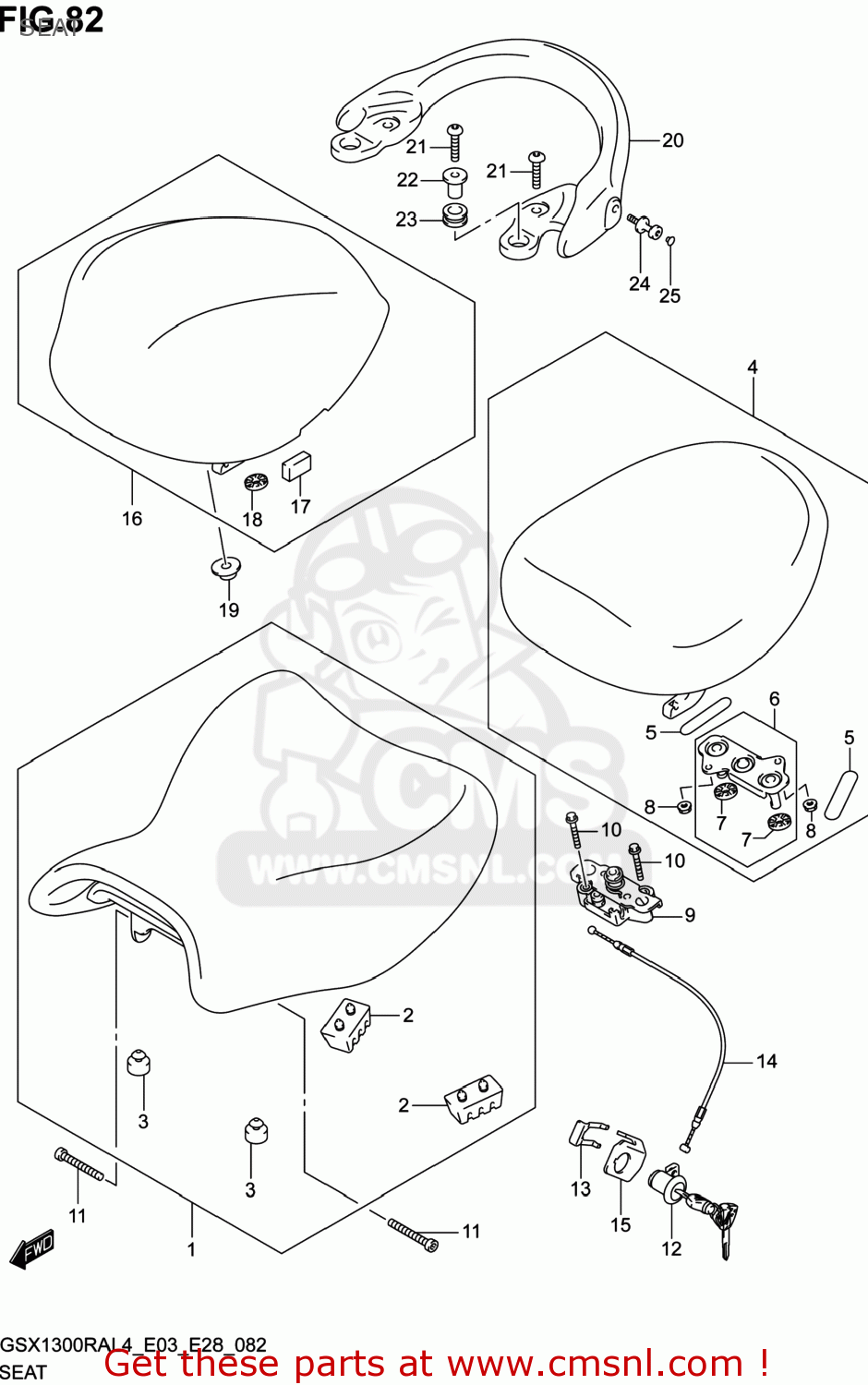

Seat diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)
SEAT GSX1300RA HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510015H01EJY
ref: 1
SEAT ASSY
€ 194.50
2
4514945330
ref: 2
CUSHION,SUPPORT(50X25X32)
€ 2.00
3
0932110011
ref: 3
CUSHION
€ 3.00
4
4530015H10U6H
ref: 4
SEAT ASSY,PILLI
€ 104.00
5
4514915H00
ref: 5
CUSHION
€ 4.50
6
4529015H00
ref: 6
STRIKER,SEAT LOCK
€ 31.50
7
4521342F00
ref: 7
CUSHION
€ 2.50
8
083161006A
ref: 8
NUT
€ 2.50
9
4522015H00
ref: 9
BRACKET,STRIKER SUPPORT
€ 58.50
10
015470630A
ref: 10
BOLT
€ 2.50
11
4519115H00
ref: 11
BOLT,SEAT FR
€ 4.00
12
9570014F00
ref: 12
LOCK SET,SEAT
€ 75.50
13
4528911F00
ref: 13
PLATE,SEAT LOCK ASSY
€ 3.00
14
4528018G01
ref: 14
CABLE,SEAT LOCK
€ 15.00
15
4528814F20
ref: 15
GUIDE,SEAT LOCK CABLE
€ 4.50
16-1
4555015H01YVB
ref: 16-1
BOX,SEAT TAIL(BLACK)
€ 148.00
16-2
4555015H01YVZ
ref: 16-2
BOX,SEAT TAIL(RED)
€ 336.00
16-3
4555015H01YKY
ref: 16-3
BOX,SEAT TAIL(BLUE)
€ 161.50
17
4555315H00
ref: 17
CUSHION
€ 4.50
18
4521342F00
ref: 18
CUSHION
€ 2.50
19
4719024F01
ref: 19
WASHER,FRAME COVER
€ 7.00
20-1
4621115H00YVB
ref: 20-1
HANDLE,PILLION RIDER
€ 233.00
20-2
4621115H00YVZ
ref: 20-2
HANDLE,PILLION RIDER
€ 289.00
20-3
4621115H00YKY
ref: 20-3
HANDLE,PILLION RIDER
€ 233.00
21
0910608137
ref: 21
BOLT(8X33)
€ 5.50
22
4719024F11
ref: 22
WASHER,PILLION
€ 8.00
23
4621724F00
ref: 23
CUSHION,PILLION RIDER HANDLE
€ 3.00
24
4621224F11
ref: 24
HOOK,PILLION RIDER HANDLE
€ 18.50
25
0925005009
ref: 25
CAP(OD:10)
€ 2.50
