REAR SWINGINGARM

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

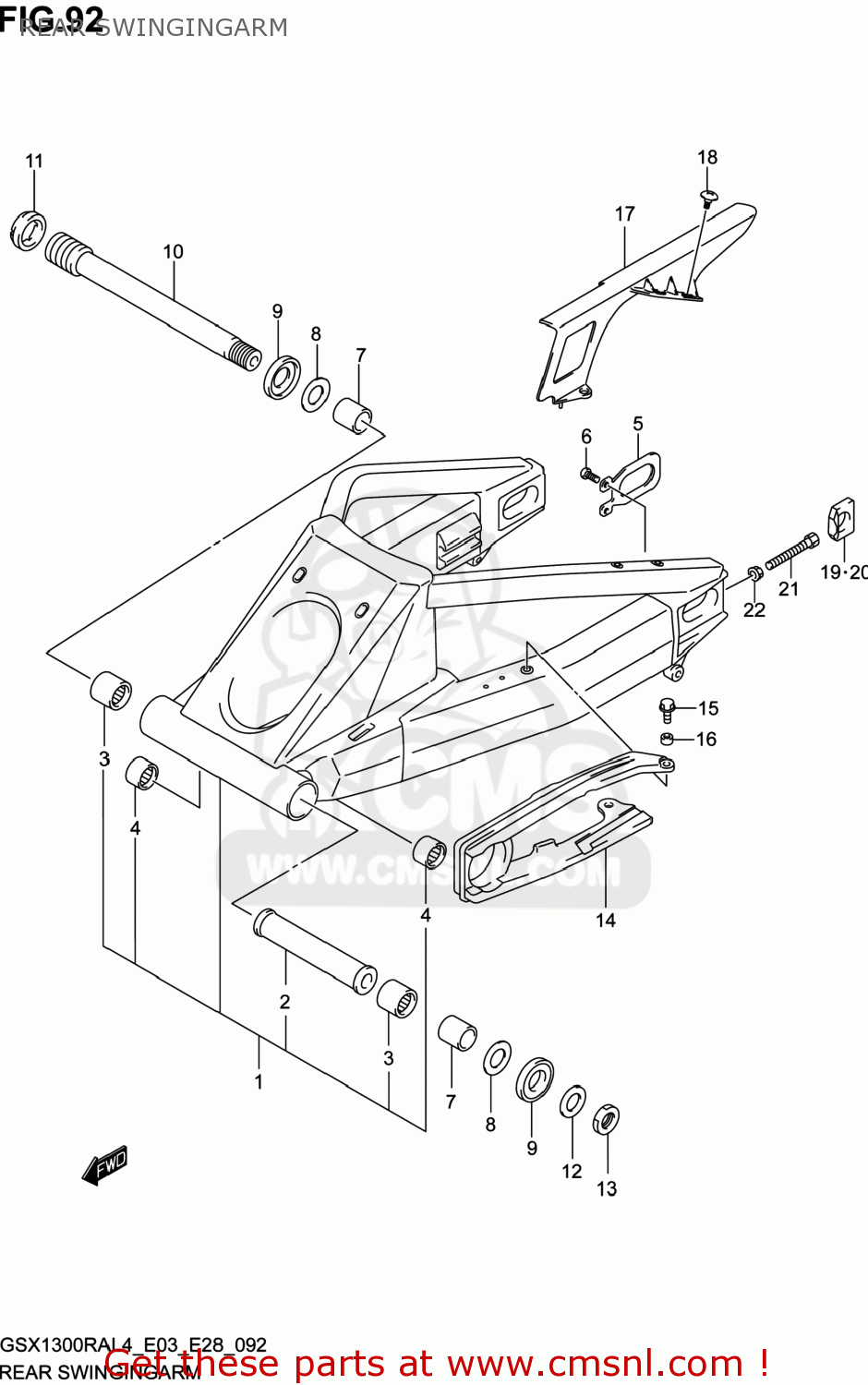

Rear swingingarm diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

REAR SWINGINGARM GSX1300RA HAYABUSA 2014 (L4) USA (E03)
REAR SWINGINGARM GSX1300RA HAYABUSA 2014 (L4) USA (E03)
REAR SWINGINGARM GSX1300RA HAYABUSA 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6100024F50YAP
ref: 1
SWINGINGARM ASSY,RR
€ 1,496.00
2
6128133E20
ref: 2
SPACER,RR SWGARM PIVOT CTR
6128133E20
€ 26.00
3
0926330040
ref: 3
BEARING(30X40X25)
0926330040
€ 31.50
4
0926317037
ref: 4
BEARING(17X24X25)
0926317037
€ 19.00
5
6112433E00
ref: 5
PLATE,RR SWING ARM BRKT
6112433E00
€ 3.50
6
0912506073
ref: 6
SCREW(6X16)
0912506073
€ 3.00
7
6125117E20
ref: 7
SPACER,RR SWGARM PIVOT BEARING
6125117E20
€ 7.00
8
0821125481
ref: 8
WASHER
0821125481
€ 5.50
9
6126217E10
ref: 9
DUST SEAL,RR SWGARM PIVOT
6126217E10
€ 6.50
10
6121116G00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 74.00
11
6121440C31
ref: 11
NUT,RR SWGARM PIVOT BOLT
6121440C31
€ 16.50
12
0916025070
ref: 12
WASHER(25.2X42X3.2)
0916025070
€ 4.50
13
0915925003
ref: 13
NUT
0915925003
€ 29.00
14
6127315H00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
6127315H00
€ 29.00
15
0911606152
ref: 15
BOLT(6X20)
0911606152
€ 2.00
16
0918006306
ref: 16
SPACER(6.5X9X5)
0918006306
€ 2.00
17
6131115H00
ref: 17
CASE,CHAIN
6131115H00
€ 28.50
18
0913906168
ref: 18
SCREW(6X16)
0913906168
€ 2.00
19
6144640F10
ref: 19
ADJUSTER,CHAIN
6144640F10
€ 31.00
20
6144540F20
ref: 20
ADJUSTER,CHAIN
6144540F20
€ 31.00
21
0910008287
ref: 21
BOLT(8X50)
0910008287
€ 3.00
22
083161008A
ref: 22
NUT
083161008A
€ 2.50
