REAR WHEEL (GSX1300RAL4 E33)

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

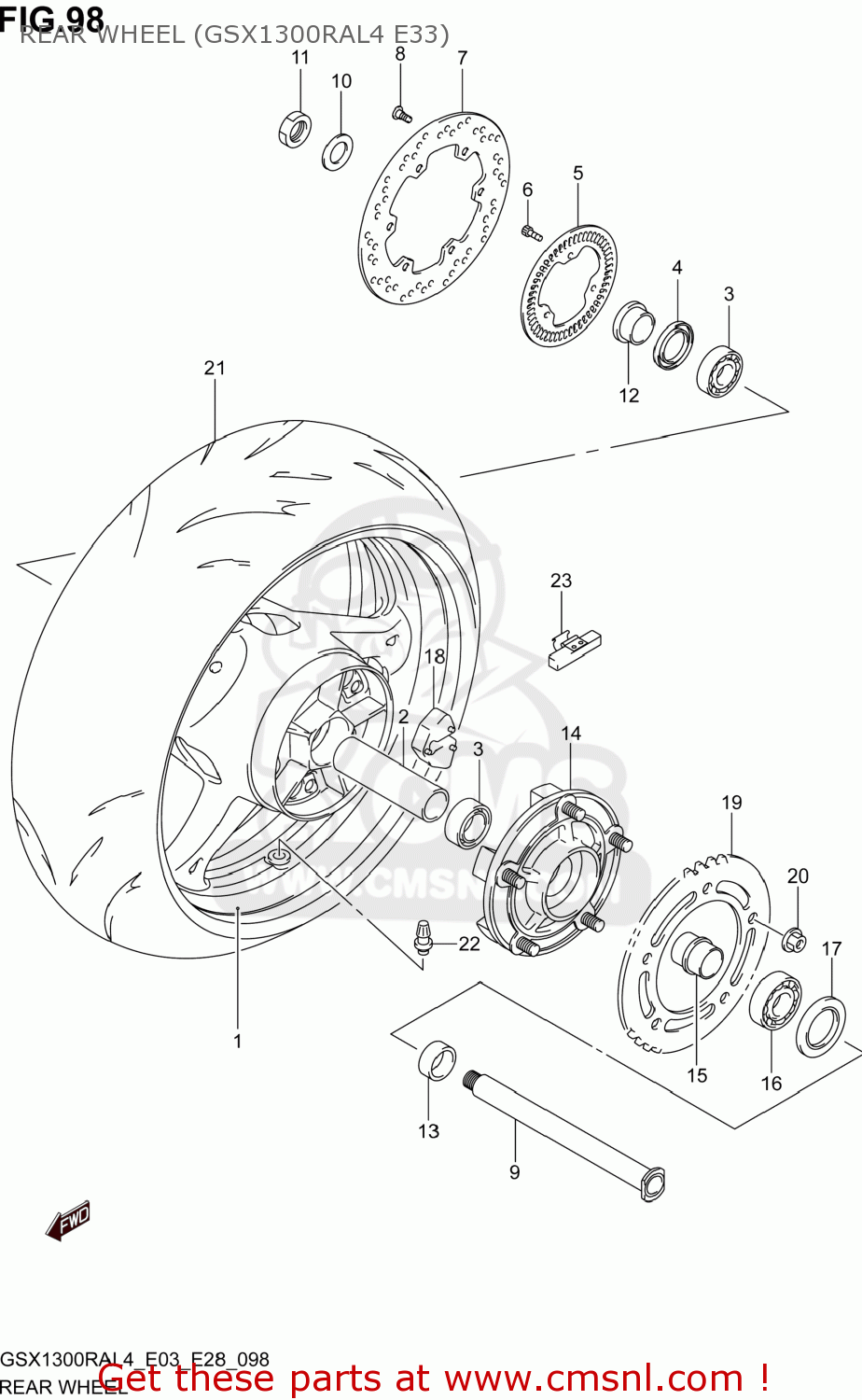

Rear wheel (gsx1300ral4 e33) diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

REAR WHEEL (GSX1300RAL4 E33) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

REAR WHEEL (GSX1300RAL4 E33) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6411115H10019
ref: 1

WHEEL,RR(17M/CXMT6.00)

€ 908.50

1

6411115H10019
ref: 1

WHEEL,RR(17M/CXMT6.00)

€ 908.50

2

6473140F10
ref: 2

SPACER,RR WHEEL BEARING

€ 40.00

3

0926228052
ref: 3

BEARING(28X52X12)

€ 24.00

4

0928437001
ref: 4

SEAL,OIL(37X52X8)

€ 9.00

5

6416223H00
ref: 5

RING,SPEED SENSOR RR(60T)

€ 21.50

6

071300512A
ref: 6

BOLT

€ 2.50

7

6921115H00
ref: 7

DISC,RR BRAKE

€ 137.50

8

0910608160
ref: 8

BOLT(8X21)

€ 3.50

9

6471133E20
ref: 9

AXLE,RR

€ 85.50

10

0916025070
ref: 10

WASHER(25.2X42X3.2)

€ 4.50

11

0915925003
ref: 11

NUT

€ 29.00

12

6474135F00
ref: 12

SPACER,RR AXLE,R

€ 9.00

13

6475149G00
ref: 13

SPACER,RR AXLE,L

€ 21.00

14

6461035F30
ref: 14

DRUM,RR SPROCKET

€ 219.00

15

6473335F00
ref: 15

RETAINER,RR SPROCKET DRUM

€ 21.50

16

0926232022
ref: 16

BEARING(32X65X17)

€ 49.00

17

0928539001
ref: 17

SEAL,OIL(39X65X7)

€ 9.00

18

6465135F20
ref: 18

ABSORBER,RR HUB SHOCK

€ 18.50

19

6451115H00
ref: 19

SPROCKET,RR(43T-530)

€ 64.00

20

083193110A
ref: 20

NUT

€ 3.00

21

6511024F50
ref: 21

TIRE,RR

€ 349.50

21

6511024F50
ref: 21

TIRE,RR

€ 349.50

22

4313024A00
ref: 22

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

23-1

5541122H00
ref: 23-1

BALANCER,WHEEL(10G)

€ 4.50

23-2

5541222H00
ref: 23-2

BALANCER,WHEEL(20G)

€ 5.50

23-3

5541322H00
ref: 23-3

BALANCER,WHEEL(30G)

€ 6.00
