METER PANEL
GSX1300RA HAYABUSA 2014 (L4) USA (E03)

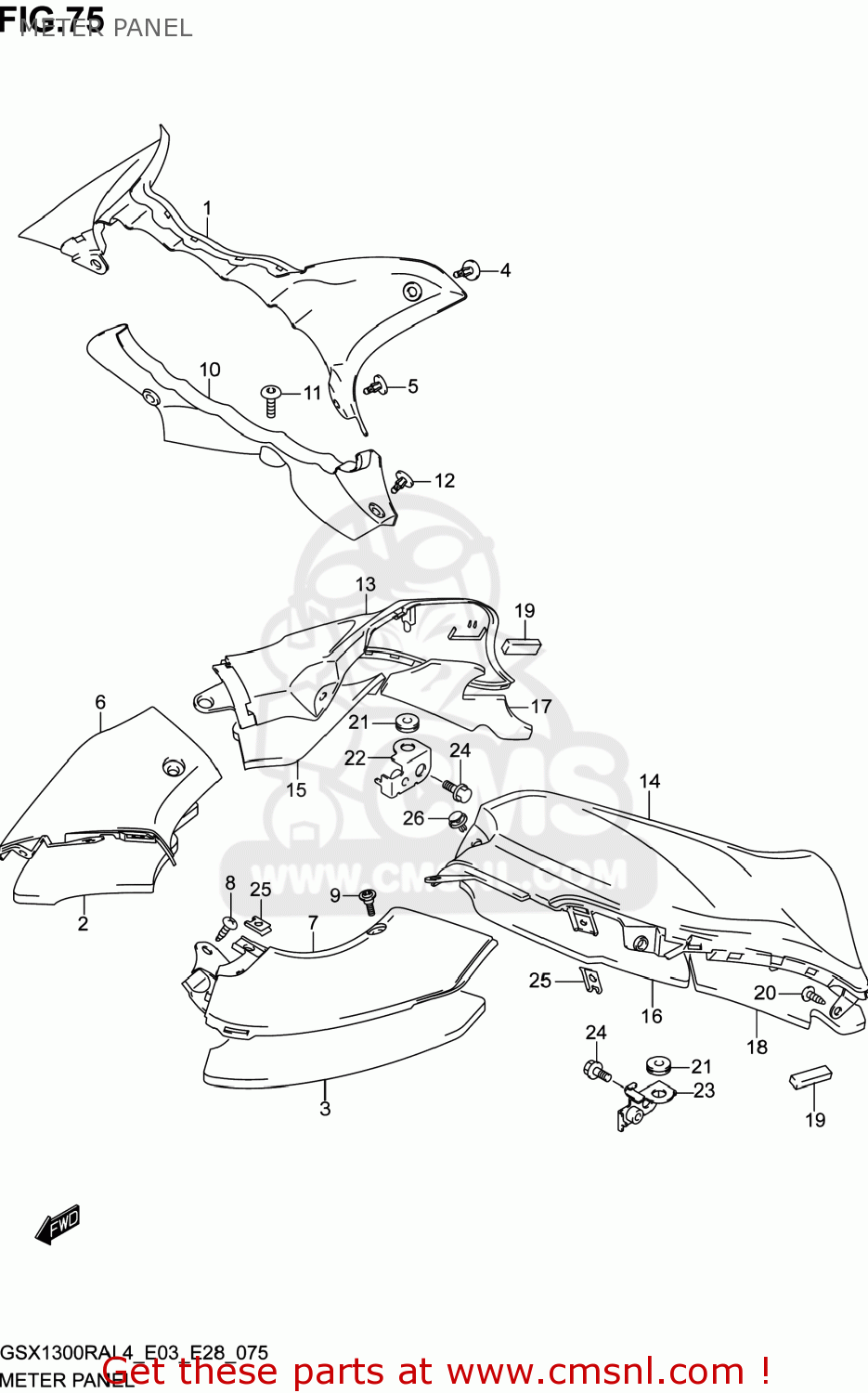

Meter panel diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)
METER PANEL GSX1300RA HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9442415H00
ref: 1
PANEL,METER UPR
€ 28.50
2
9464315H00
ref: 2
CUSHION,PANEL UPR,R
€ 14.00
3
9464415H00
ref: 3
CUSHION,PANEL UPR,L
€ 14.00
4
09409063145PK
ref: 4
CLIP(BLACK)
€ 3.50
5
0940907333
ref: 5
CLIP
€ 2.50
6
9464115H00
ref: 6
PANEL,UPR,R
€ 26.50
7
9465115H00
ref: 7
PANEL,UPR,L
€ 26.00
8
032411516B
ref: 8
SCREW
€ 2.00
9
0913905504
ref: 9
SCREW(5X16)
€ 4.00
10
9442515H00
ref: 10
PANEL,METER RR
€ 30.00
11
0913905503
ref: 11
SCREW(5X13)
€ 2.50
12
0940908327
ref: 12
CLIP
€ 3.00
13
9462115H00
ref: 13
PANEL,SIDE,R
€ 45.00
14
9463115H00
ref: 14
PANEL,SIDE,L
€ 38.50
15
9462215H00
ref: 15
CUSHION,SIDE PANEL FR,R
€ 18.50
16
9463215H00
ref: 16
CUSHION,SIDE PANEL FR,L
€ 18.50
17
9462315H00
ref: 17
CUSHION,SIDE PANEL RR,R
€ 16.50
18
9463315H00
ref: 18
CUSHION,SIDE PANEL RR,L
€ 14.00
19
3365202H00
ref: 19
CUSHION
€ 5.00
20
0913205053
ref: 20
SCREW(5X16)
€ 2.50
21
4719106J00
ref: 21
CUSHION,COVER SIDE FR,L
€ 4.00
22
9452024F10
ref: 22
BRACKET,PANEL,R
€ 17.00
23
9453024F10
ref: 23
BRACKET,PANEL,L
€ 18.00
24
015500620B
ref: 24
BOLT
€ 2.50
25
9448424F00
ref: 25
NUT,COWL
€ 4.00
26
0940907332
ref: 26
CLIP
€ 3.00
