HANDLEBAR (GSX1300RAL4 E03)

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

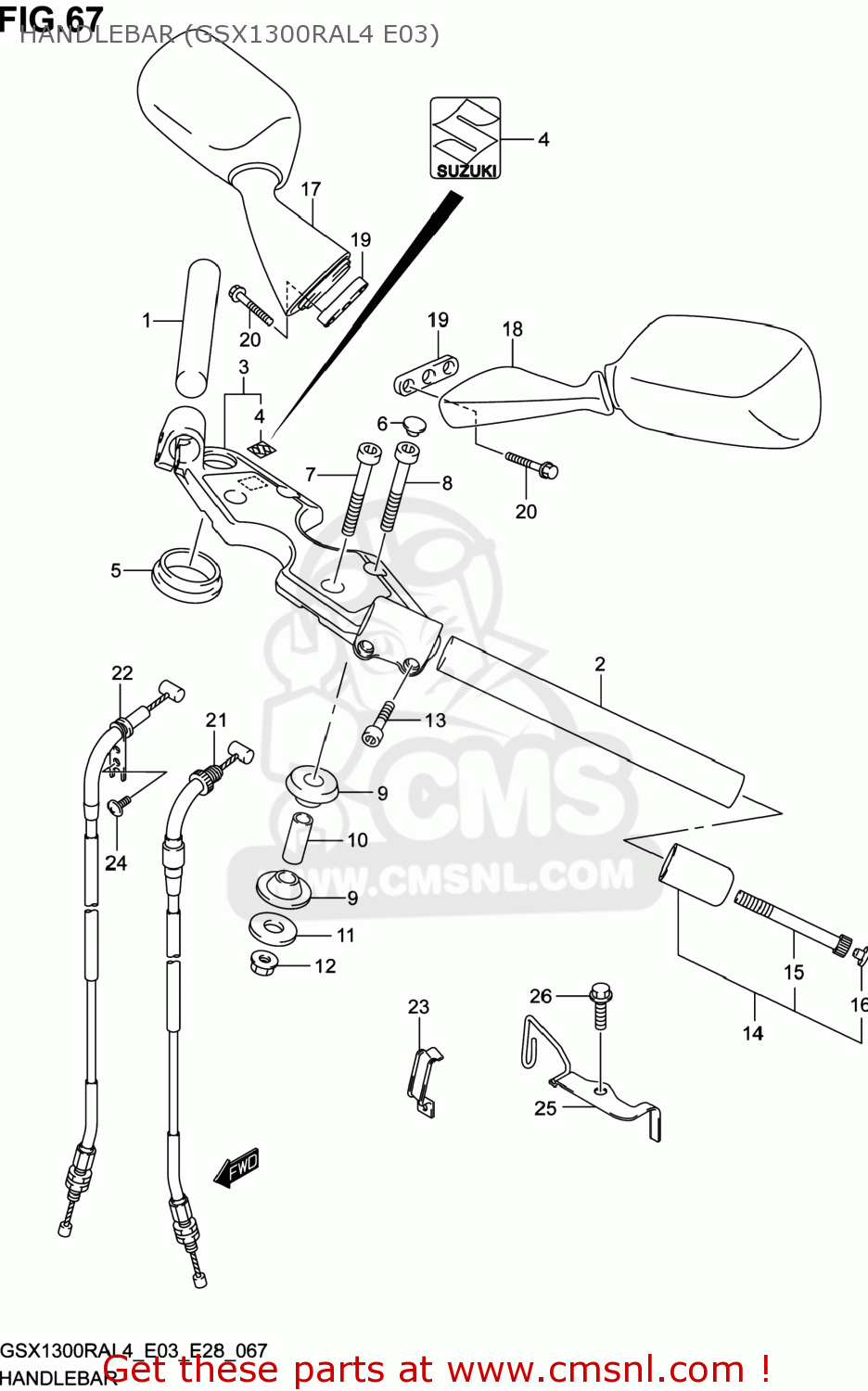

Handlebar (gsx1300ral4 e03) diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

HANDLEBAR (GSX1300RAL4 E03) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

HANDLEBAR (GSX1300RAL4 E03) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611115H00
ref: 1

HANDLEBAR,R

€ 42.00

2

5615115H00
ref: 2

HANDLEBAR,L

€ 34.00

3

5621015H10
ref: 3

HOLDER,HANDLEBAR

€ 347.00

4

6828147HA0
ref: 4

EMBLEM,"S"

€ 7.00

5

5624724F00
ref: 5

CUSHION,HANDLE HOLDER

€ 7.00

6

5624624F00
ref: 6

CAP,HANDLE HOLDER BRACKET BOLT

€ 7.00

7

071301065B
ref: 7

BOLT

€ 3.50

8

071301060A
ref: 8

BOLT

€ 3.50

9

5624001D00
ref: 9

CUSHION,UPR BRACKET

€ 23.00

10

5624301D00
ref: 10

SPACER,STEERING STEM HEAD

€ 6.00

11

0916010094
ref: 11

WASHER(10.5X30X3.2)

€ 3.50

12

083193110A
ref: 12

NUT

€ 3.00

13

0910606090
ref: 13

BOLT(6X25)

€ 2.50

14

5620015830
ref: 14

BALANCER SET,HANDLEBAR

€ 35.00

15

071300660B
ref: 15

BOLT

€ 3.00

16

0925005009
ref: 16

CAP(OD:10)

€ 2.50

17

5650024F20
ref: 17

MIRROR ASSY,RR VIEW,R

€ 150.50

18

5660024F20
ref: 18

MIRROR ASSY,RR VIEW,L

€ 71.50

19

9457624F00
ref: 19

CUSHION,RR VIEW MIRRORR

€ 5.00

20

015470630B
ref: 20

BOLT

€ 3.00

21

5830015H20
ref: 21

CABLE ASSY,THROTTLE NO.1

€ 51.00

22

5830015H30
ref: 22

CABLE ASSY,THROTTLE NO.2

€ 47.50

23

5862324F10
ref: 23

GUIDE,CABLE

€ 5.00

24

0912505042
ref: 24

SCREW(5X10)

€ 2.50

25

5862015H00
ref: 25

GUIDE,CABLE

€ 15.00

26

015470612A
ref: 26

BOLT

€ 2.00
