OIL PAN/OIL PUMP

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

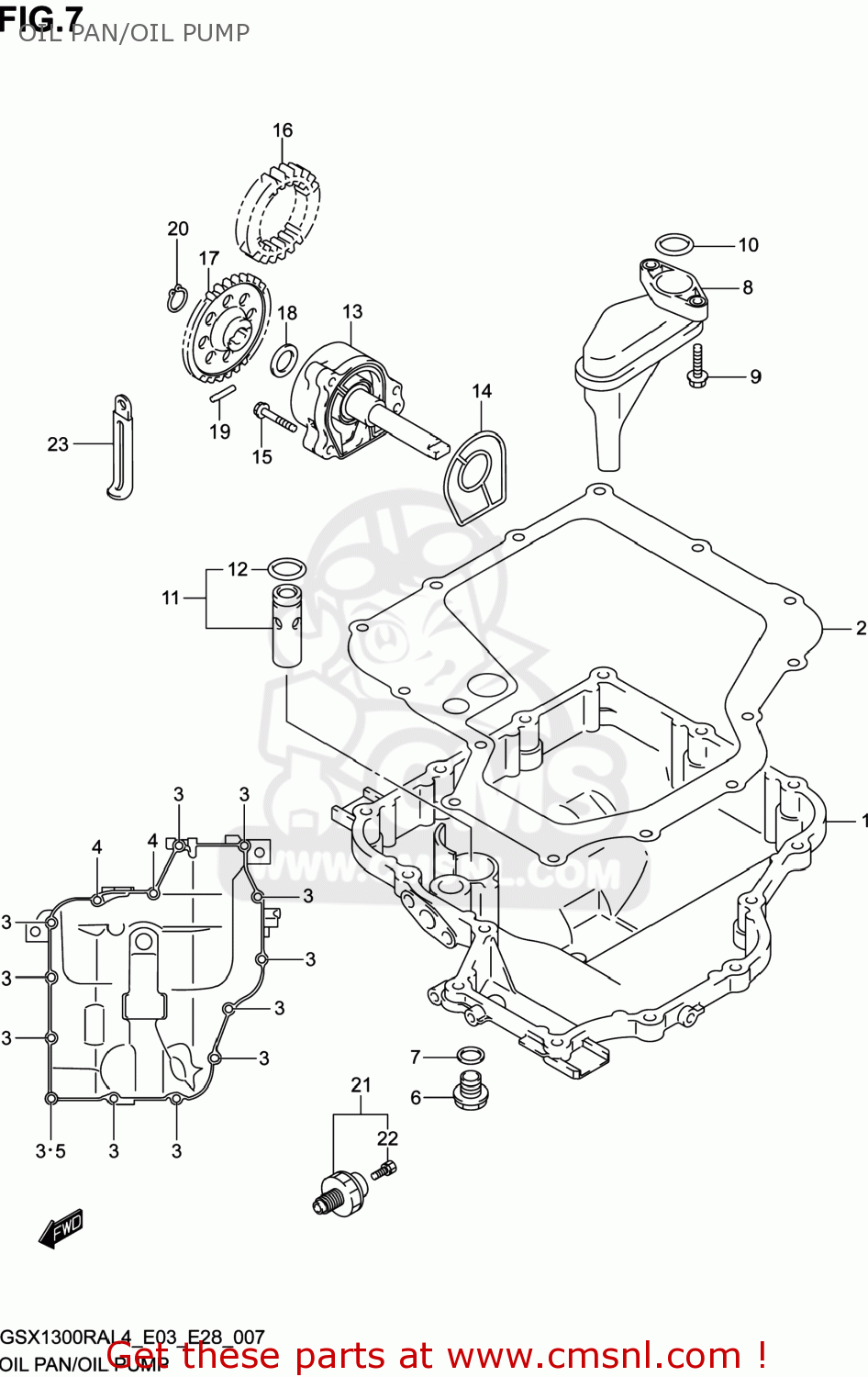

Oil pan/oil pump diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

OIL PAN/OIL PUMP GSX1300RA HAYABUSA 2014 (L4) USA (E03)
OIL PAN/OIL PUMP GSX1300RA HAYABUSA 2014 (L4) USA (E03)
OIL PAN/OIL PUMP GSX1300RA HAYABUSA 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1151124F10
ref: 1
PAN,OIL
1151124F10
€ 195.00
2
1148924F10
ref: 2
GASKET,OIL PAN(ASB) (NAS)
1148924F10
€ 15.50
3
015470630A
ref: 3
BOLT
015470630A
€ 2.50
4
015470640A
ref: 4
BOLT
015470640A
€ 2.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
0924714036
ref: 6
PLUG(14X20)
0924714036
€ 5.50
7
0916814002
ref: 7
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
8
1652024F00
ref: 8
STRAINER,ENGINE OIL
1652024F00
€ 24.00
9
015500620A
ref: 9
BOLT
015500620A
€ 2.50
10
0928019008
ref: 10
O RING(D:2.62,ID:20.3)
0928019008
€ 5.50
11
1644024F00
ref: 11
VALVE ASSY,OIL RELIEF(7K)
1644024F00
€ 41.50
12
0928013004
ref: 12
O RING(D:1.9,ID:13)
0928013004
€ 2.50
13
1640024F01
ref: 13
PUMP ASSY,ENGINE OIL
1640024F01
€ 165.00
14
1649124F00
ref: 14
O RING,OIL PUMP
1649124F00
€ 5.50
15
015470630A
ref: 15
BOLT
015470630A
€ 2.50
16
1632133E10
ref: 16
GEAR,OIL PUMP DRIVE
1632133E10
€ 37.00
17
1633133E00
ref: 17
GEAR,OIL PUMP DRIVEN
1633133E00
€ 39.50
18
0918112158
ref: 18
SHIM(12X20X0.5)
0918112158
€ 2.00
19
0926105006
ref: 19
PIN(5X18)
0926105006
€ 1.50
20
083313112A
ref: 20
CIRCLIP
083313112A
€ 2.00
21
3782033D10
ref: 21
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
22
3782233D00
ref: 22
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
23
0940406429
ref: 23
CLAMP(L:45)
€ 2.50
