CLUTCH

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

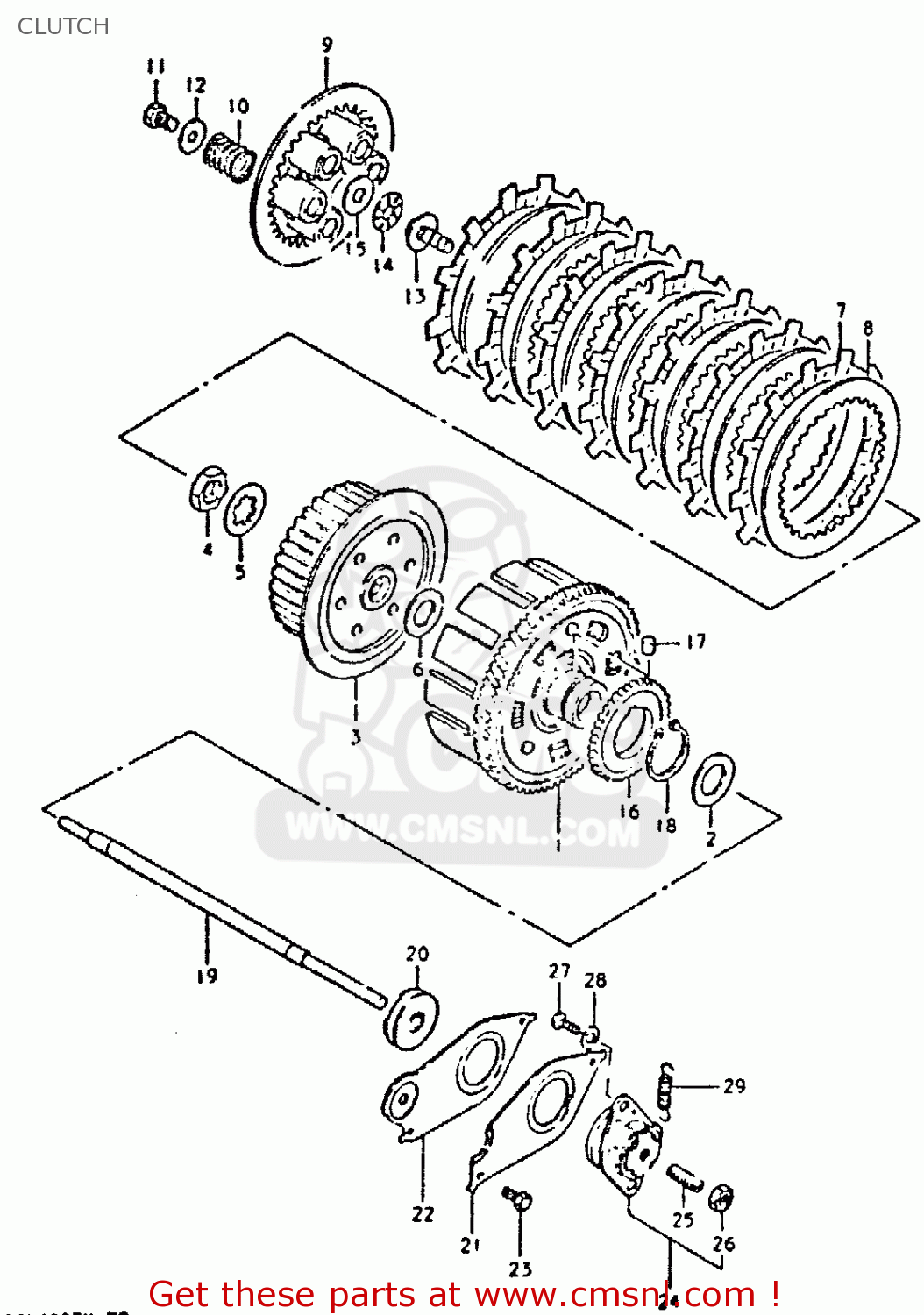

Clutch diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

CLUTCH GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
CLUTCH GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
CLUTCH GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1
2120044100
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
2120044100
€ 333.00
2
0821125381
ref: 2
WASHER
0821125381
€ 3.00
3
2141144100
ref: 3
HUB,CLUTCH SLEEVE
2141144100
€ 56.50
4
0914020002
ref: 4
NUT (20MM)
0914020002
€ 3.50
5
0916720006
ref: 5
WASHER,LOCK
0916720006
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
0916020015
€ 4.50
7
2144140402
ref: 7
PLATE,CLUTCH DRIVE (MCA)
2144140402
€ 20.50
8
2145145000
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
9
2146216500
ref: 9
TO 21462-16501
DISC,CLUTCH PRESSURE
2146216500
€ 51.00
10
0944019003
ref: 10
TO 09440-19013
SPRING
0944019003
€ 5.50
11
0110706168
ref: 11
BOLT, UPPER
€ 3.00
12
0916006020
ref: 12
WASHER
0916006020
€ 2.00
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
2312144100
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
0926315003
€ 7.00
15
0916015015
ref: 15
WASHER
€ 4.00
16
1632144001
ref: 16
GEAR,OIL PUMP DRIVE
1632144001
€ 26.00
17
0926106002
ref: 17
PIN(6X6)
0926106002
€ 1.50
18
0833131389
ref: 18
CIRCLIP
0833131389
€ 2.50
19
2310044101
ref: 19
ROD,CLUTCH PUSH
€ 18.50
20-1
0928306002
ref: 20-1
FLANGED TYPE
SEAL,OIL(6X34X8)
0928306002
€ 7.00
20-2
0928506011
ref: 20-2
WITH HOLDER (23117-4
SEAL,OIL(6X34X10)
0928506011
€ 9.50
21
2311744100
ref: 21
PLATE,CLUTCH PUSH ROD
2311744100
€ 6.00
22
2311744101
ref: 22
PLATE,CLUTCH PUSH ROD
2311744101
€ 6.50
23
0110706128
ref: 23
BOLT
0110706128
€ 2.00
24
2320044100
ref: 24
SCREW ASSEMBLY,CLUTCH RELEASE
€ 63.00
25
0913406001
ref: 25
SCREW
0913406001
€ 3.00
26
0831022068
ref: 26
NUT 6MM
€ 2.50
27
0311106128
ref: 27
SCREW
€ 1.50
28
0832221068
ref: 28
WASHER
0832221068
€ 2.00
29
0944308001
ref: 29
SPRING
0944308001
€ 3.00
