LEFT HANDLE SWITCH

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

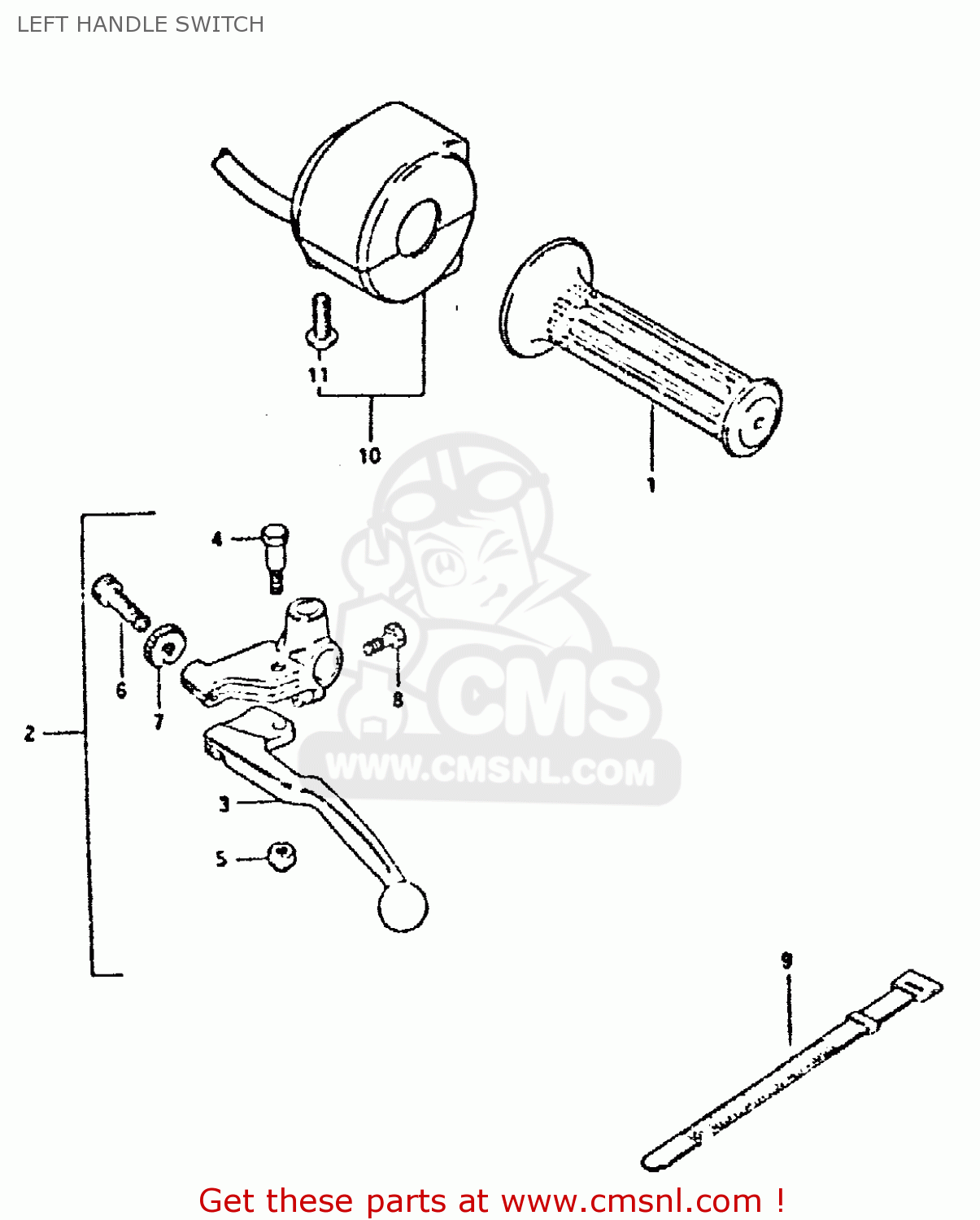

Left handle switch diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

5721145030
ref: 1

GRIP,LEFT

€ 18.50

5750049101
ref: 2

LEVER ASSY, CLUTCH

€ 49.50

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

5743111011
ref: 4

BOLT,LEVER

€ 6.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 8

BOLT

€ 2.00

0940712402
ref: 9

CLAMP(L:120)

€ 3.00

10-1

3740045210
ref: 10-1
GSX400ET, GSX400ST

SWITCH ASSY, HANDLE LH

€ 161.00

10-2

3740045211
ref: 10-2
GSX400EX, GSX400SX

SWITCH ASSY, HANDLE LH

€ 161.00

0211205258
ref: 11

SCREW

€ 2.00
