FOOTREST

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

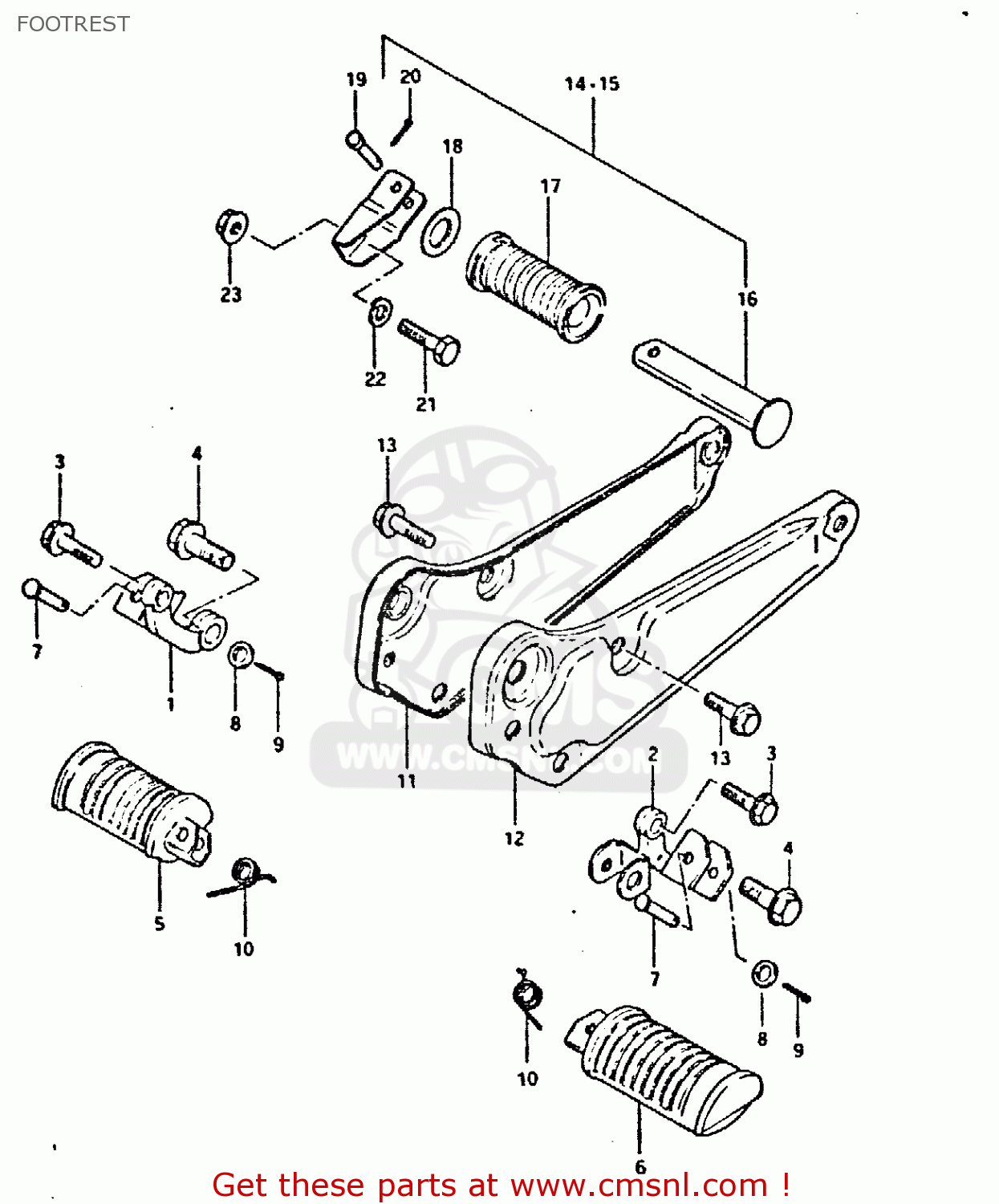

Footrest diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FOOTREST GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FOOTREST GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1

4351044100
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 31.00

2

4352044100
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 42.00

3

0152708307
ref: 3

BOLT

€ 3.50

4

0152710308
ref: 4

BOLT

€ 3.50

5

4355049002
ref: 5

RUBBER,FRONT FOOTREST

€ 22.50

6

4356049002
ref: 6

FOOTREST

€ 22.50

7

0920008002
ref: 7

PIN

€ 2.00

8

0832211088
ref: 8

WASHER

€ 2.00

9

0411120158
ref: 9

PIN

€ 1.50

10

0944814012
ref: 10

SPRING

€ 3.00

11

4381044100
ref: 11

BRACKET

€ 54.50

12

4382044100
ref: 12

BRACKET

€ 46.00

13

0152710207
ref: 13

BOLT

€ 3.00

14

4360044100
ref: 14

FOOTREST ASSEMBLY,REAR

€ 10.00

15

4370044100
ref: 15

FOOTREST ASSEMBLY,PILLION

€ 10.50

16

4361044000
ref: 16

BAR,PILLION FOOTREST

€ 14.50

17

4361244100
ref: 17

RUBBER,PILLION FOOTREST

€ 4.50

18

0916019006
ref: 18

WASHER (19.5X32X2)

€ 2.00

19

0920006010
ref: 19

PIN

€ 2.50

20

0411120158
ref: 20

PIN

€ 1.50

21

0110710358
ref: 21

BOLT,M10X1.25X

€ 2.50

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

0831616108
ref: 23

NUT

€ 2.00
