FUEL COCK

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

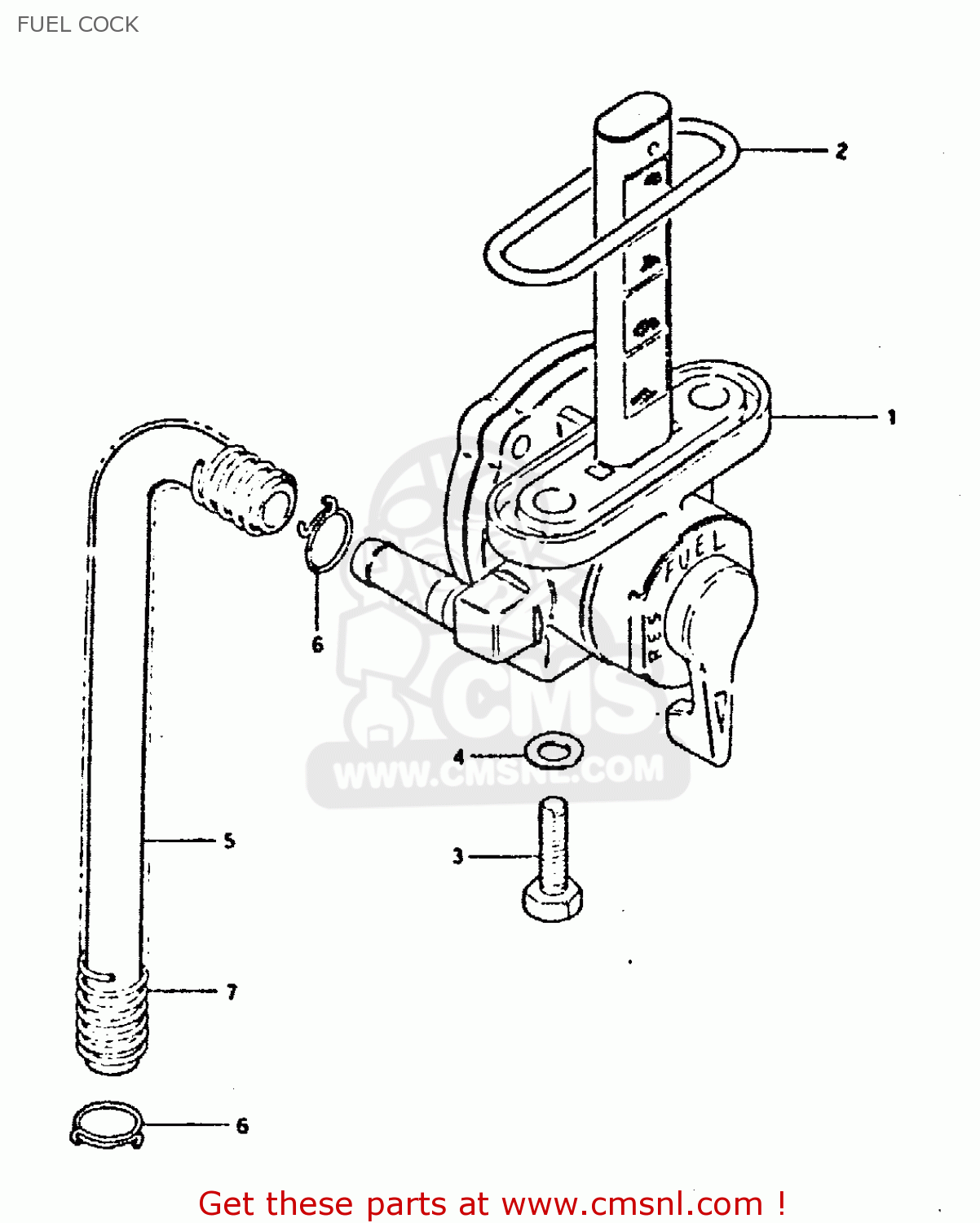

Fuel cock diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1-1

4430044170
ref: 1-1
MODEL T

COCK ASSEMBLY,FUEL

€ 100.00

1-2

4430044171
ref: 1-2
MODEL X

COCK ASSEMBLY,FUEL

€ 100.00

4434849170
ref: 2

O RING

€ 3.50

3-1

0912806006
ref: 3-1
MODEL T

BOLT(6X20)

€ 2.00

3-2

0912806005
ref: 3-2
MODEL X

SCREW

€ 2.50

0916806010
ref: 4

GASKET

€ 2.00

0934307026
ref: 5

HOSE

€ 17.50

0940110403
ref: 6

CLIP

€ 7.00

0944013016
ref: 7

SPRING

€ 14.50
