STARTER CLUTCH

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

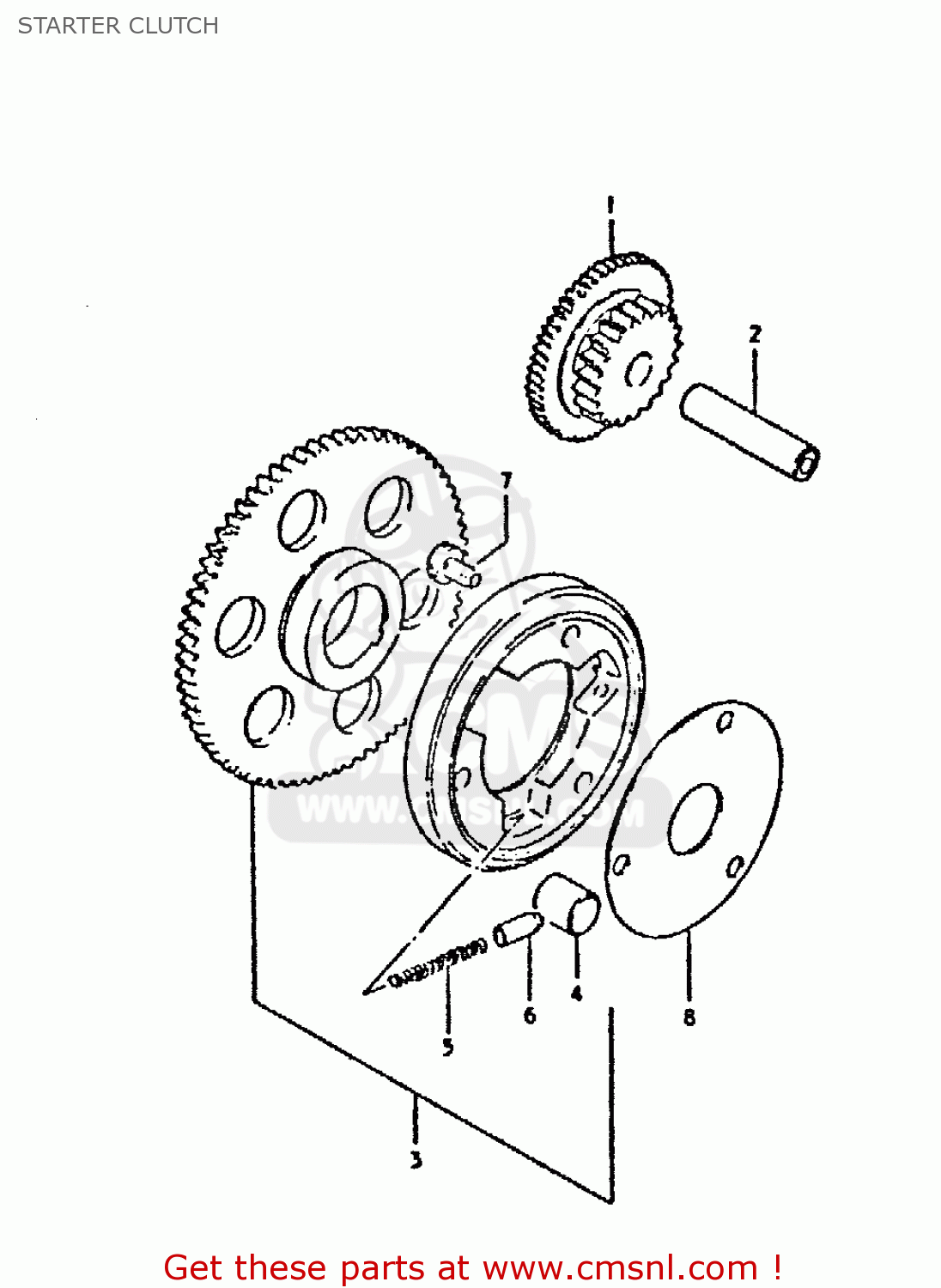

Starter clutch diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

STARTER CLUTCH GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

STARTER CLUTCH GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1

1261144100
ref: 1

GEAR,STARTER IDLE

€ 132.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260044830
ref: 3

CLUTCH SET,STARTER

€ 313.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
