CYLINDER HEAD

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

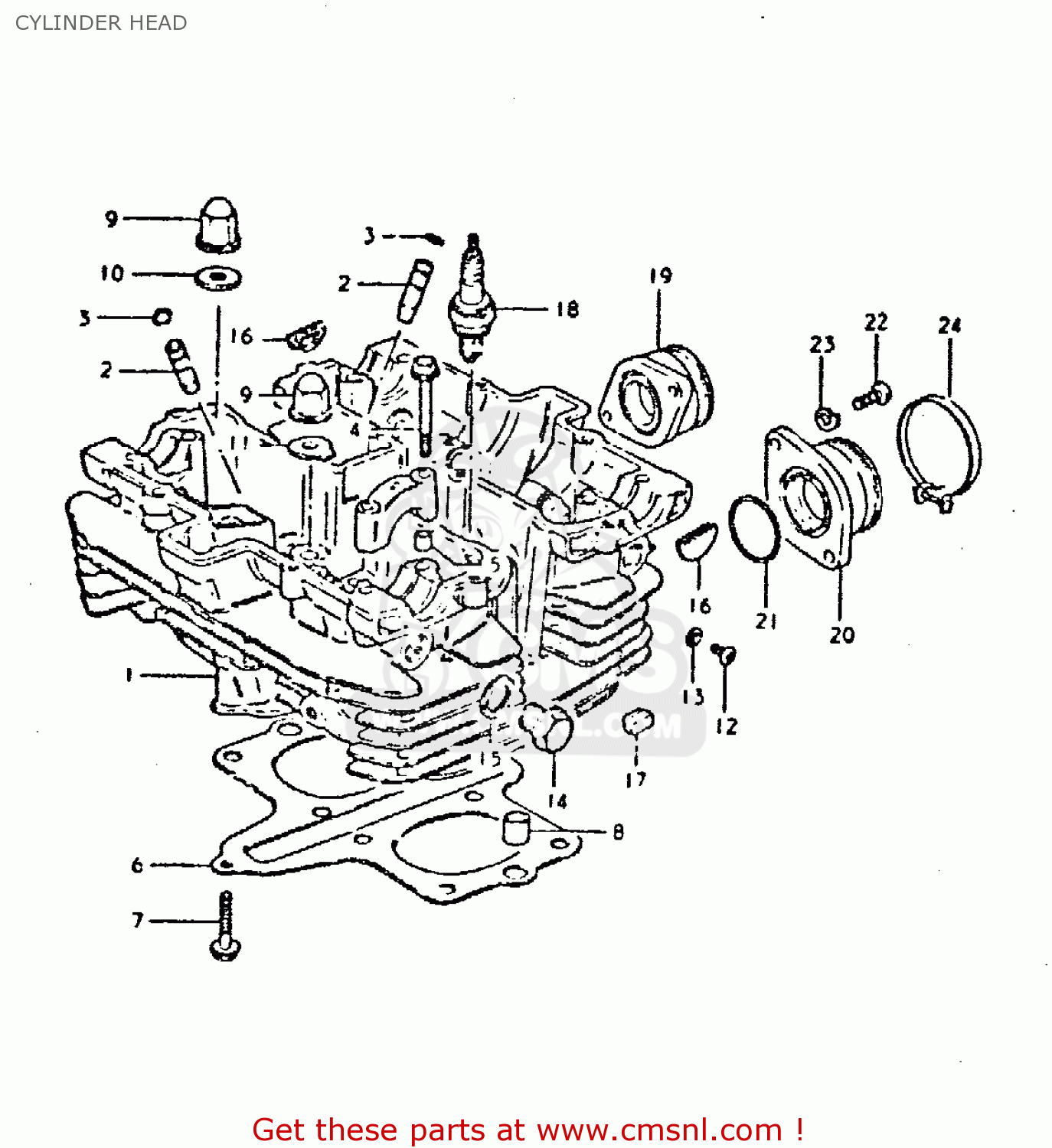

Cylinder head diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

CYLINDER HEAD GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
CYLINDER HEAD GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
CYLINDER HEAD GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1
1110044840
ref: 1
CYLINDER HEAD SET
€ 524.50
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
1111549290
€ 19.50
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
1114144200
ref: 6
GASKET (MCA)
1114144200
€ 117.00
7
0151706308
ref: 7
BOLT
€ 2.00
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0915910026
ref: 9
NUT
0915910026
€ 6.00
10
0916810019
ref: 10
GASKET (NAS)
0916810019
€ 3.50
11
0916810018
ref: 11
GASKET(10X22X2.3) (NAS)
0916810018
€ 3.00
12
0211205088
ref: 12
SCREW
0211205088
€ 2.00
13
0916805010
ref: 13
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
14
0924714012
ref: 14
PLUG (14X12)
0924714012
€ 3.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
16
0924123002
ref: 16
PLUG
0924123002
€ 8.50
17
1115245000
ref: 17
MODEL T
PAD
1115245000
€ 3.50
18-1
0948200149
ref: 18-1
SPARK PLUG DR8ES-L
0948200149
€ 3.50
18-2
0948200223
ref: 18-2
PLUG,SPARK(X24ESR-U)
€ 3.50
18-3
NOTUSED
ref: 18-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18-4
NOTUSED
ref: 18-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
1311044200
ref: 19
PIPE,INTAKE,R
1311044200
€ 30.50
20
1312044200
ref: 20
PIPE,INTAKE,L
1312044200
€ 29.00
21
0928034002
ref: 21
O-RING
0928034002
€ 3.50
22
0211206208
ref: 22
SCREW
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0940254303
ref: 24
CLAMP
0940254303
€ 4.00
