COWLING (GSX400ST / GSX400SX E22)

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

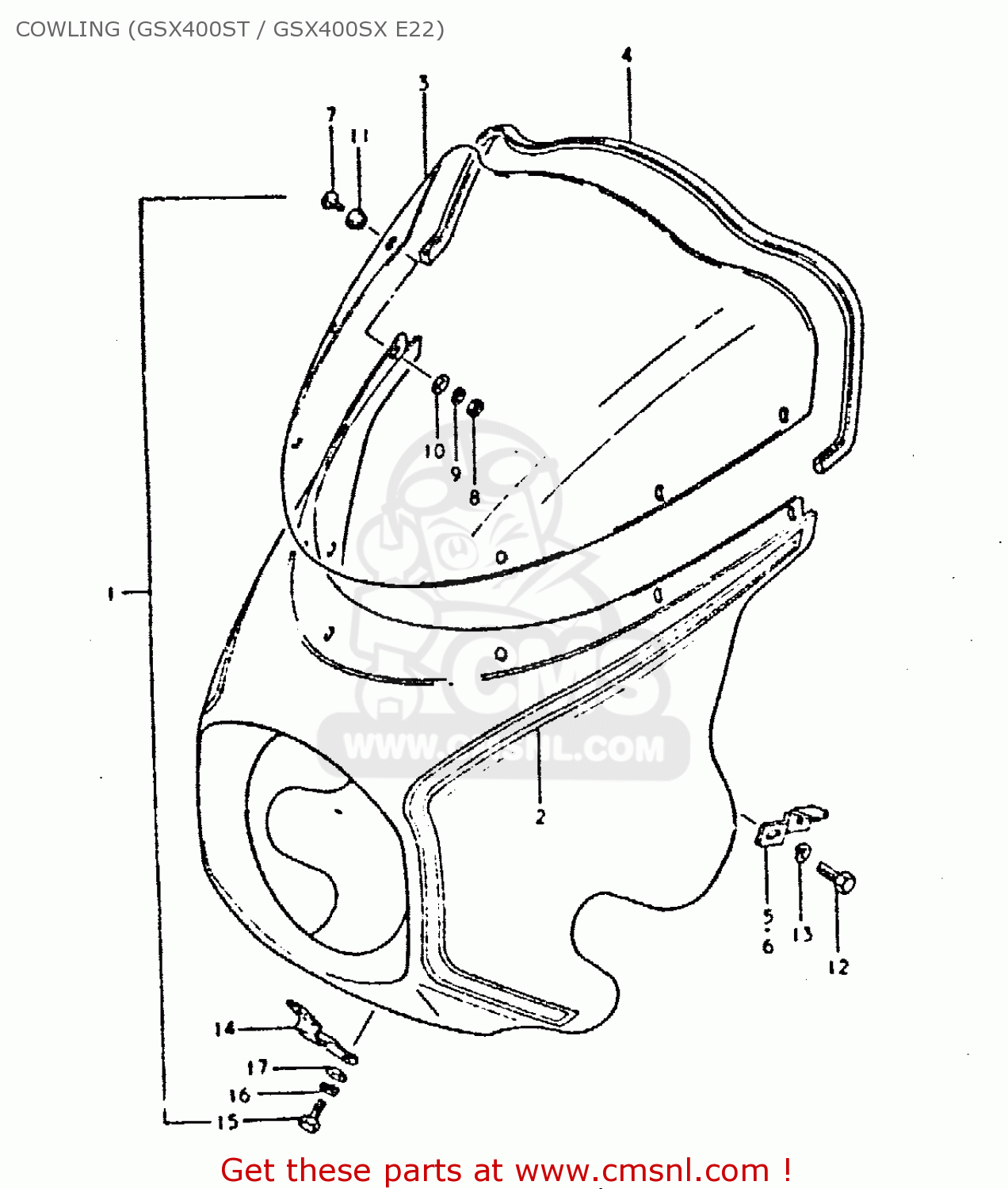

Cowling (gsx400st / gsx400sx e22) diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

COWLING (GSX400ST / GSX400SX E22) GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
COWLING (GSX400ST / GSX400SX E22) GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
COWLING (GSX400ST / GSX400SX E22) GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
9440044121019
ref: 1-1
COWLING ASSY
€ 0.00
1-2
9440044121737
ref: 1-2
COWLING ASSY
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
681904411073F
ref: 2-1
FOR 94400-44121-019
TAPE SET
€ 0.00
2-2
681904411073G
ref: 2-2
FOR 94400-44121-737
TAPE SET
€ 0.00
2-3
NOTUSED
ref: 2-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-4
NOTUSED
ref: 2-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
9461144110
ref: 3
WINDOW, COWLING
€ 0.00
4
9463144110
ref: 4
MOLD,COWLING
9463144110
€ 18.00
5
9451044100
ref: 5
BRACKET,COWLING,RIGHT
€ 10.00
6
9452044100
ref: 6
BRACKET, LH
9452044100
€ 8.00
7
0214205125
ref: 7
SCREW M5X12 DIN 7985/N
0214205125
€ 1.50
8
0831011058
ref: 8
NUT
0831011058
€ 2.50
9
0832121058
ref: 9
LOCK WASHER
0832121058
€ 2.00
10
0832221058
ref: 10
WASHER
€ 2.50
11
0932005008
ref: 11
CUSHION
0932005008
€ 5.00
12
0110706108
ref: 12
BOLT
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
9455144100
ref: 14
BRACKET,COWLING,LOWER
€ 17.00
15
0110706128
ref: 15
BOLT
0110706128
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
