FRONT WHEEL

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

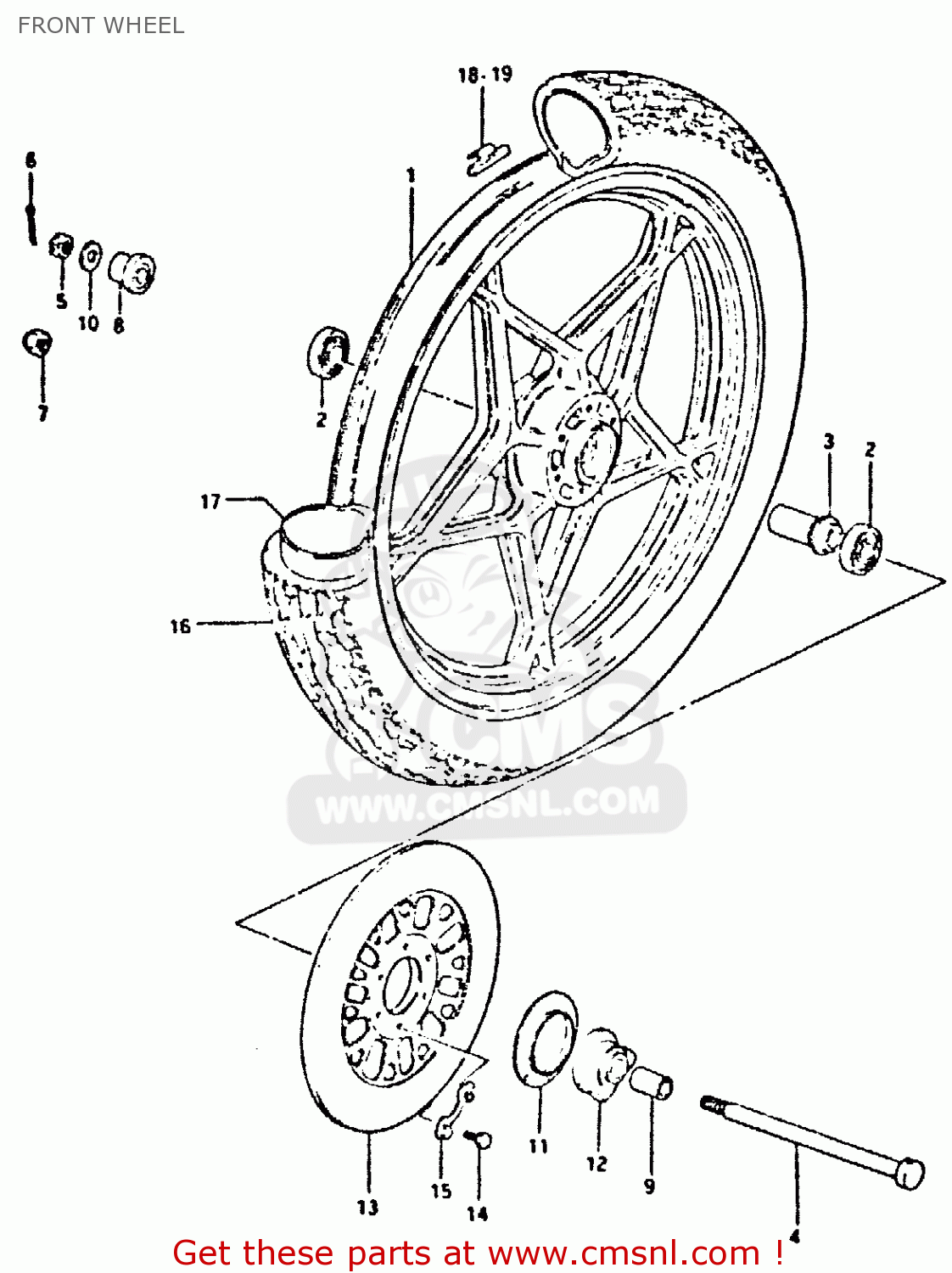

Front wheel diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRONT WHEEL GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRONT WHEEL GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1-1

5411144001
ref: 1-1
GSX400ET, GSX400EX

WHEEL (DARK GRAY)

€ 541.50

1-2

5411144020
ref: 1-2
GSX400ST, GSX400SX

WHEEL (GOLD)

€ 236.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015011
ref: 3

SPACER(15.3X21.7X63)

€ 7.50

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018410
ref: 8

SPACER,FR HUB BEARING,R

€ 17.00

9

0918015034
ref: 9

SPACER(15X22X30)

€ 7.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

12

5460018402
ref: 12

BOX ASSY,SPEEDOMETER GEAR

€ 90.50

13

5921145200
ref: 13

DISC,FR BRAKE

€ 144.00

14

0910008140
ref: 14

BOLT(8X25)

€ 2.00

15

0916908016
ref: 15

WASHER

€ 3.50

16-1

5510044010
ref: 16-1
IRC

TIRE,FRONT

€ 123.00

16-2

5510044130
ref: 16-2
BS

TIRE,FRONT

€ 123.00

17-1

5520011601
ref: 17-1

TUBE,INNER

€ 24.50

17-2

5520018030
ref: 17-2

TUBE,INNER

€ 24.50

18

5541147001
ref: 18

BALANCER,WHEEL

€ 4.00

19

5541247001
ref: 19

BALANCER,WHEEL

€ 3.50
