SEAT TAIL COVER (GSX400SX)

GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

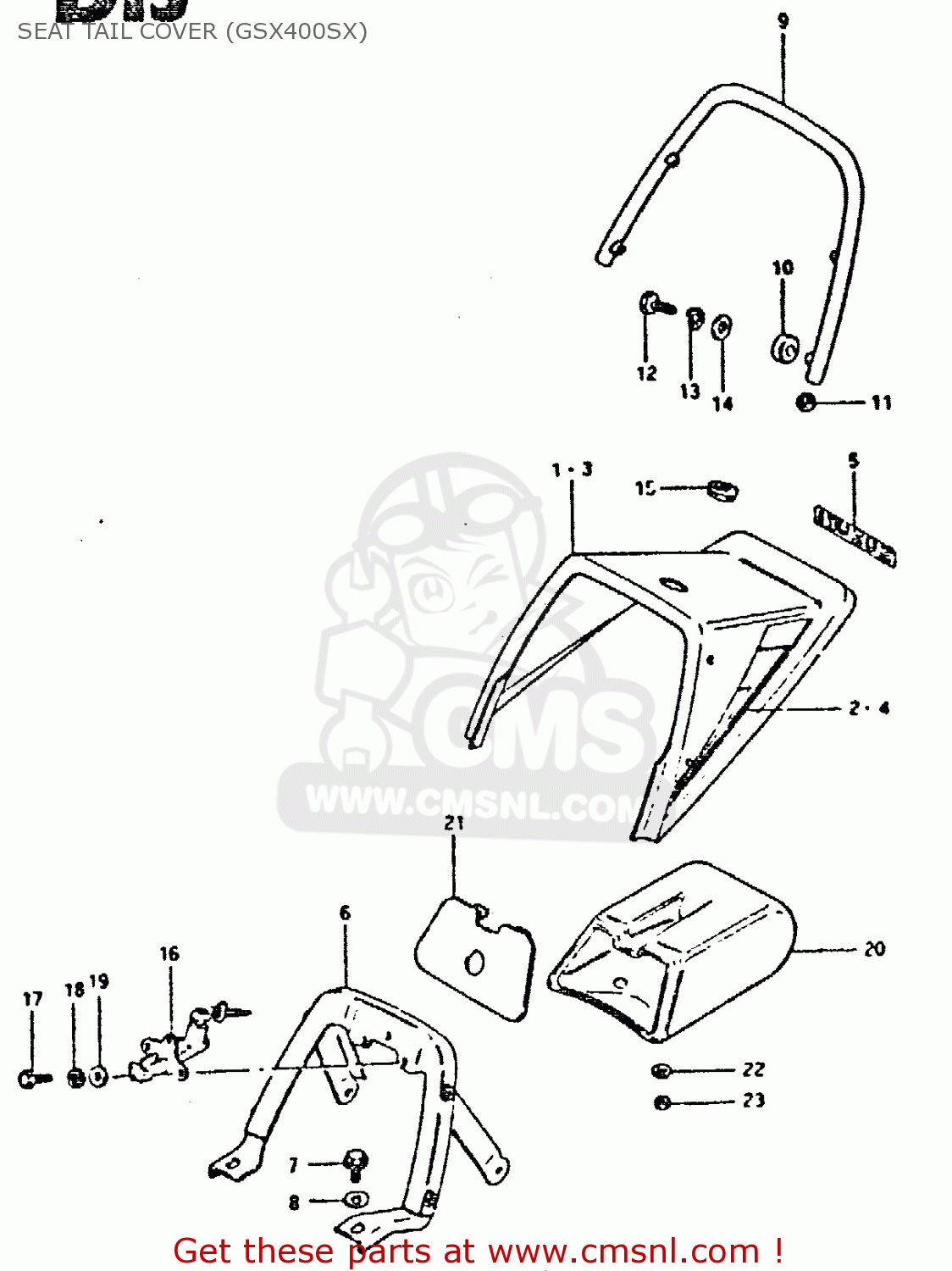

Seat tail cover (gsx400sx) diagram GSX400S 1981 (X) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

4551144101019
ref: 1

COVER,SEAT TAIL

€ 46.00

681604418075S
ref: 2

TAPE SET

€ 0.00

455114410110V
ref: 3

TAIL COVER, SEAT (WHITE)

€ 46.00

681604418076P
ref: 4

TAPE SET

€ 0.00

6816649200538
ref: 5

EMBLEM,SEAT TAIL COVER

€ 5.00

4553044103
ref: 6

BRACKET, SEAT TAIL COVER

€ 0.00

0151708168
ref: 7

BOLT

€ 3.00

0916008007
ref: 8

WASHER (8.7X22X2)

€ 2.00

4621044100
ref: 9

HANDLE,PILLION RIDER

€ 39.50

4621249000
ref: 10

CUSHION

€ 15.00

4621349000
ref: 11

END,SHEET HANDLE

€ 5.50

0110708308
ref: 12

BOLT (8X30)

€ 2.50

0832121088
ref: 13

LOCK WASHER

€ 2.00

0832211088
ref: 14

WASHER

€ 2.00

4552249200
ref: 15

GROMMET,SEAT LOCK HOLE

€ 5.50

9570049830
ref: 16

LOCK SET,SEAT

€ 81.50

0110706128
ref: 17

BOLT

€ 2.00

0832121068
ref: 18

LOCK WASHER

€ 2.50

0832221068
ref: 19

WASHER

€ 2.00

9499044100
ref: 20

BOX, SEAT TAIL

€ 48.50

9499244100
ref: 21

LID,SEAT TAIL BOX

€ 19.00

0832221068
ref: 22

WASHER

€ 2.00

0831921068
ref: 23

NUT 6MM

€ 2.00
