CAM CHAIN

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

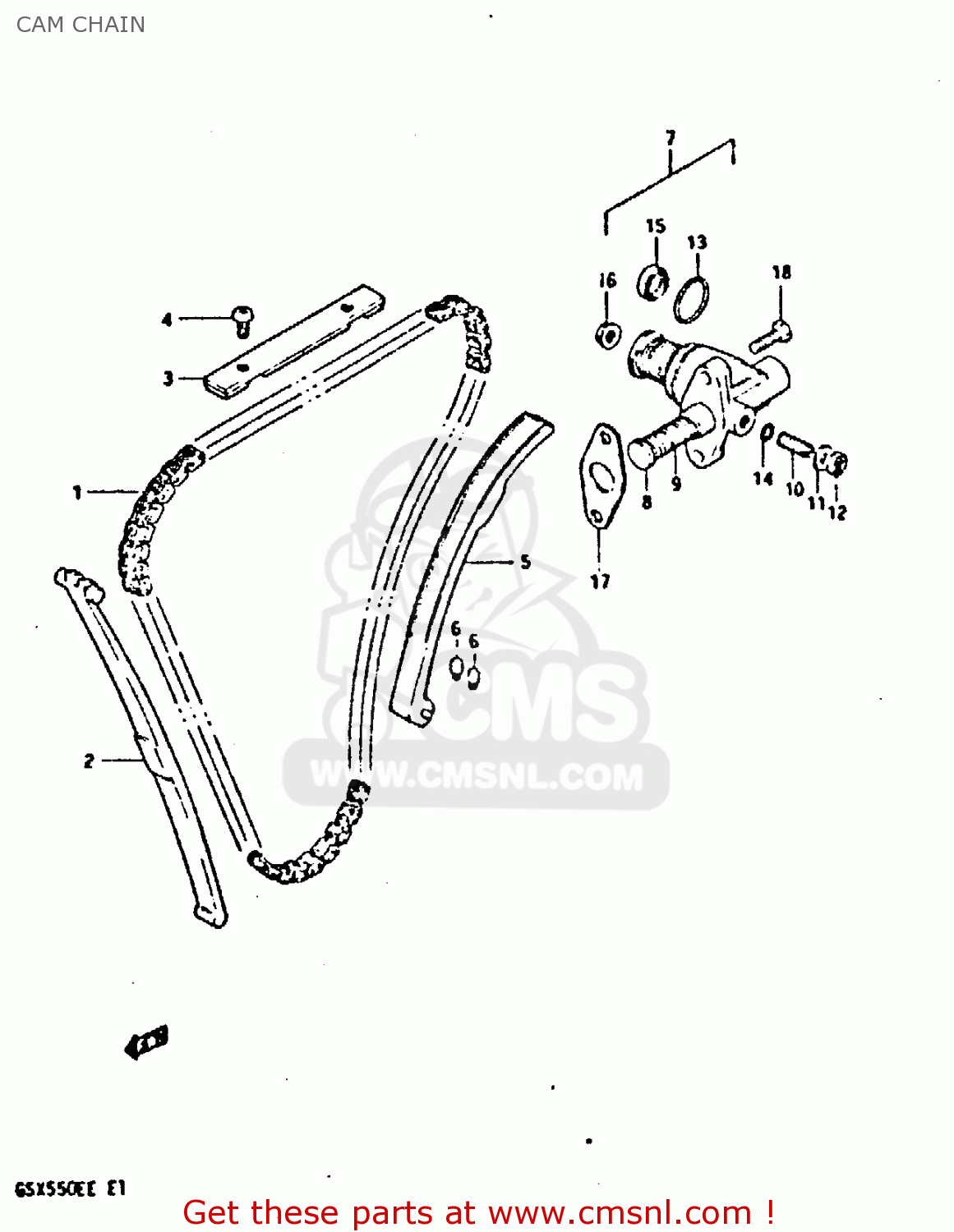

Cam chain diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

CAM CHAIN GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
CAM CHAIN GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
CAM CHAIN GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1276043400
ref: 1
CHAIN,CAMSHAFT DRIVE
1276043400
€ 114.00
2
1277143400
ref: 2
GUIDE,CAM CHAIN NO.1
1277143400
€ 29.50
3
1278233200
ref: 3
GUIDE,CAM CHAIN NO.2
€ 37.50
4
0211205108
ref: 4
SCREW
0211205108
€ 2.00
5
1281043400
ref: 5
TENSIONER,CAM CHAIN
1281043400
€ 62.50
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281444101
€ 8.50
7
1283033302
ref: 7
ADJUSTER ASSY,TENSIONER
1283033302
€ 116.50
8
1263333201
ref: 8
PUSH ROD
€ 0.00
9
0944012029
ref: 9
SPRING
0944012029
€ 3.50
10
1283845010
ref: 10
SCREW,TENSIONER ADJUST
€ 6.00
11
0832211085
ref: 11
WASHER,8.5X16X
€ 1.50
12
0831011085
ref: 12
NUT
€ 1.50
13
0928021013
ref: 13
O RING(D:2.4,ID:20.8)
0928021013
€ 4.50
14
0928006005
ref: 14
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
0928410006
€ 4.00
16
0831616065
ref: 16
NUT
€ 2.50
17
1283731310
ref: 17
FROM 12837-47000
GASKET,TENSIONER ADJUSTER (MCA)
1283731310
€ 7.50
18
0912806022
ref: 18
SCREW
€ 2.50
