FRAME (MODEL D)

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

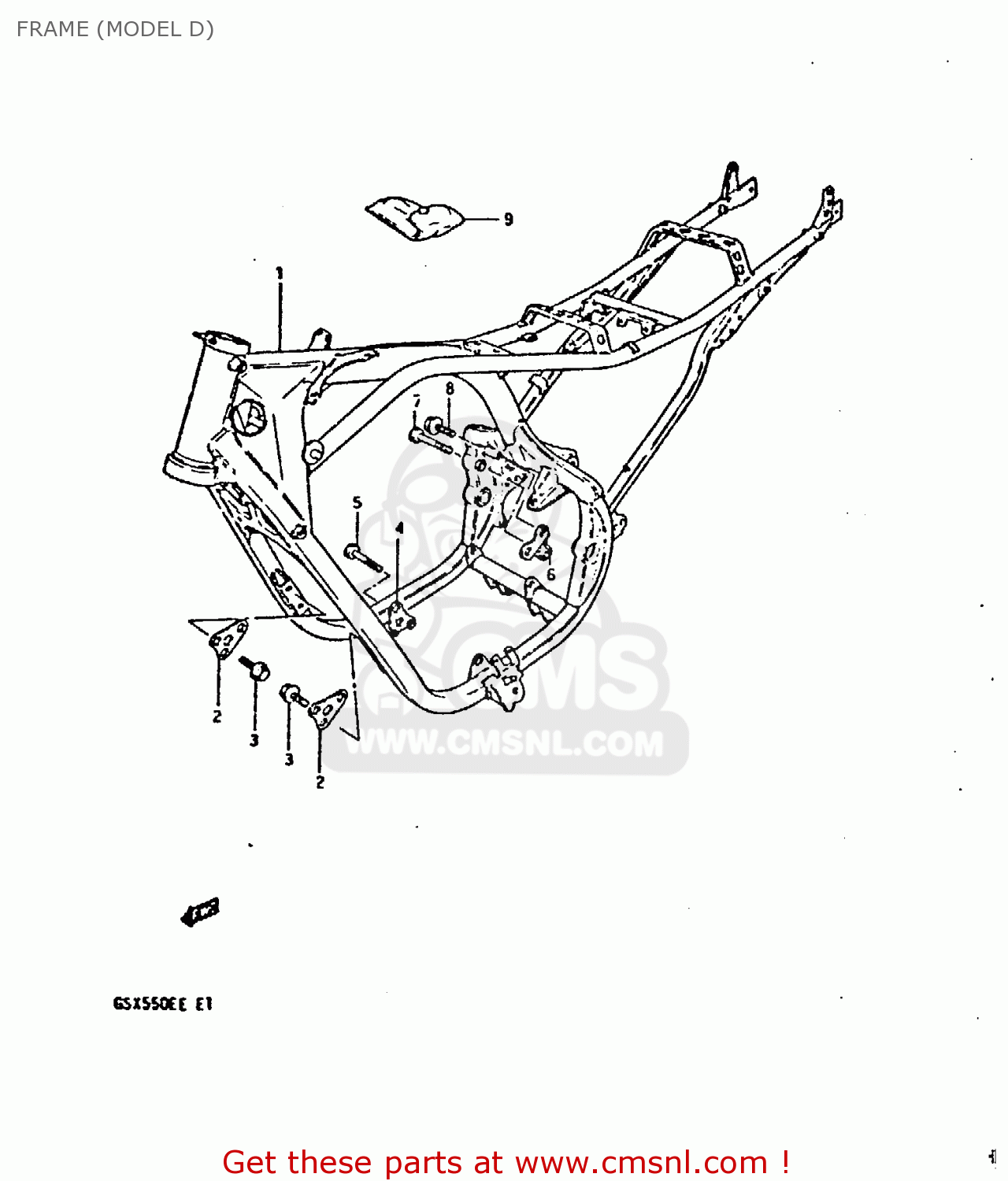

Frame (model d) diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

411004340213L
ref: 1-1

FRAME

€ 1,240.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4199143400291
ref: 2
TO 41991-43401-291

PLATE,ENGINE MOUNTING

€ 9.00

0151708168
ref: 3

BOLT

€ 3.00

4199243400291
ref: 4

PLATE,ENGINE MOUNTING NO

€ 11.50

0910608021
ref: 5

BOLT

€ 3.50

4199343400291
ref: 6

PLATE,ENGINE MOUNTING NO.4

€ 0.00

0910608021
ref: 7

BOLT

€ 3.50

0151708168
ref: 8

BOLT

€ 3.00

0980000269
ref: 9

TOOL ASSY

€ 53.00
