COVER HEADLAMP - FRONT FENDER (MODEL E)

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

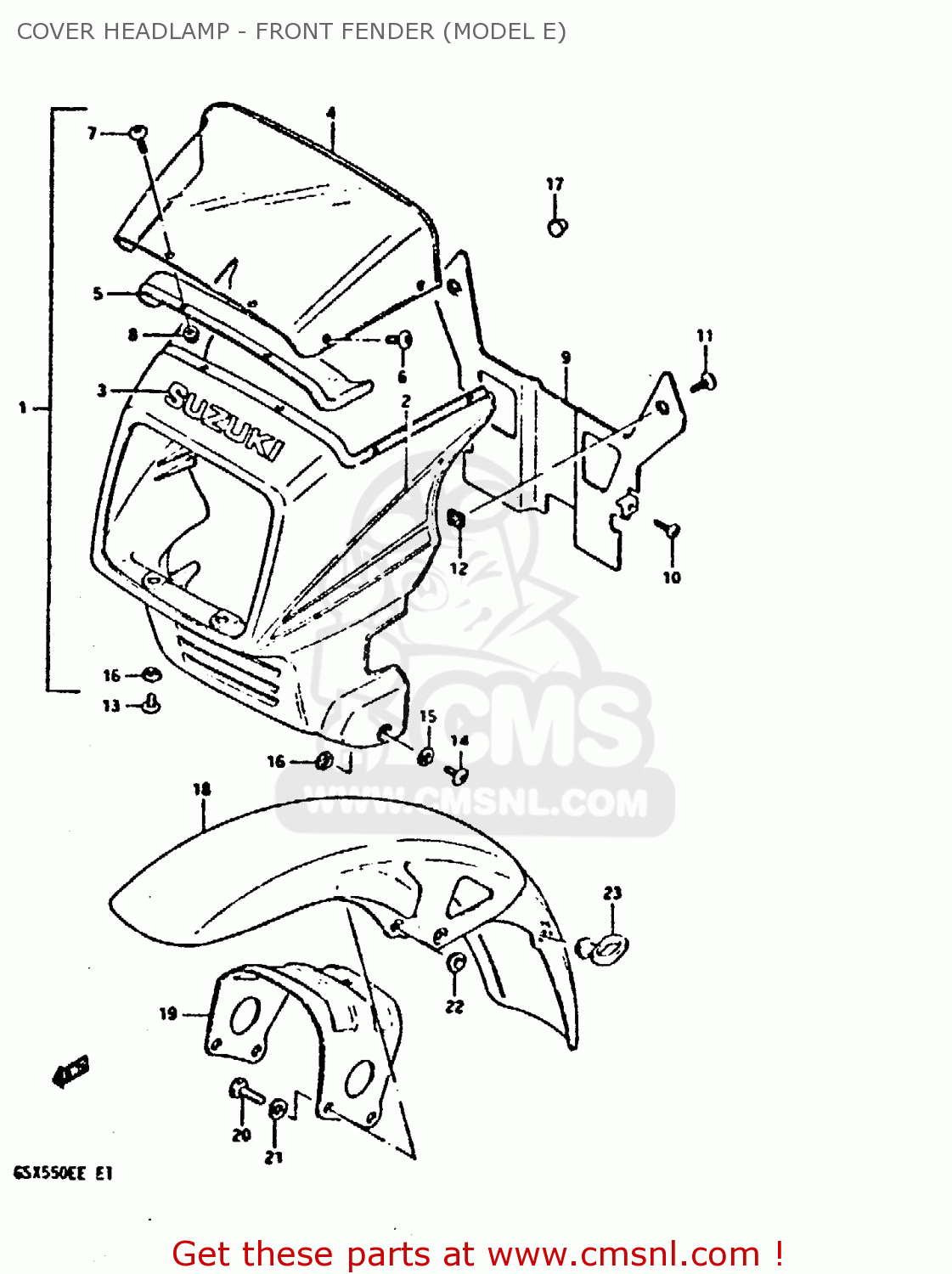

Cover headlamp - front fender (model e) diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

COVER HEADLAMP - FRONT FENDER (MODEL E) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
COVER HEADLAMP - FRONT FENDER (MODEL E) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
COVER HEADLAMP - FRONT FENDER (MODEL E) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
518004341013Z
ref: 1-1
BLACK GSX550EE
COVER ASSY, HEADLAMP
€ 627.00
1-2
518004341007P
ref: 1-2
RED GSX550EE
COVER ASSY, HEADLAMP
€ 627.00
2-1
682504341071P
ref: 2-1
FOR 13Z GSX550EE
TAPE SET
€ 0.00
2-2
682504341060D
ref: 2-2
FOR 07P GSX550EE
TAPE SET
€ 0.00
3-1
6827143400764
ref: 3-1
FOR 13Z GSX550EE
EMBLEM
€ 0.00
3-2
6827143400064
ref: 3-2
FOR 07P GSX550EE
EMBLEM,HEADLAMP
6827143400064
€ 4.00
4
5184543400
ref: 4
GSX550EE
WINDOW,COVER HEADLAMP
5184543400
€ 195.50
5
5184343400
ref: 5
GSX550EE
COVER,HEADLAMP,UPPER
€ 11.50
6
0913905021
ref: 6
GSX550EE
SCREW(5X12)
0913905021
€ 2.00
7
0913905022
ref: 7
GSX550EE
SCREW
0913905022
€ 2.50
8
0831931055
ref: 8
GSX550EE
NUT
€ 3.00
9
5187143400
ref: 9
GSX550EE
PLATE,HEADLAMP COVER
€ 11.50
10
0321105125
ref: 10
GSX550EE
SCREW
€ 2.00
11
0214204105
ref: 11
GSX550EE
SCREW
0214204105
€ 1.50
12
0914804015
ref: 12
GSX550EE
NUT
0914804015
€ 3.00
13
0214206125
ref: 13
GSX550EE
SCREW 6X12
0214206125
€ 2.00
14
0214206125
ref: 14
GSX550EE
SCREW 6X12
0214206125
€ 2.00
15
0916006039
ref: 15
GSX550EE
WASHER (6.5X18X1.6)
0916006039
€ 2.00
16
0916906034
ref: 16
GSX550EE
WASHER
0916906034
€ 2.50
17
0925006007
ref: 17
GSX550EE
PLUG
0925006007
€ 2.00
18-1
531114340013Z
ref: 18-1
FENDER, FRONT (BLACK)
€ 209.00
18-2
531114340007P
ref: 18-2
FENDER, FRONT (RED)
€ 209.00
18-3
531114340004Y
ref: 18-3
GSX550ESE/EFE
FENDER,FRONT
€ 209.00
19
5311443400
ref: 19
BRACE,FRONT FENDER
€ 18.00
20
0110708168
ref: 20
BOLT
€ 2.00
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
0916908034
ref: 22
WASHER
0916908034
€ 2.00
23
5862121203A
ref: 23
GUIDE,CABLE
€ 7.50
