HANDLEBAR (GSX550ED/EE)

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

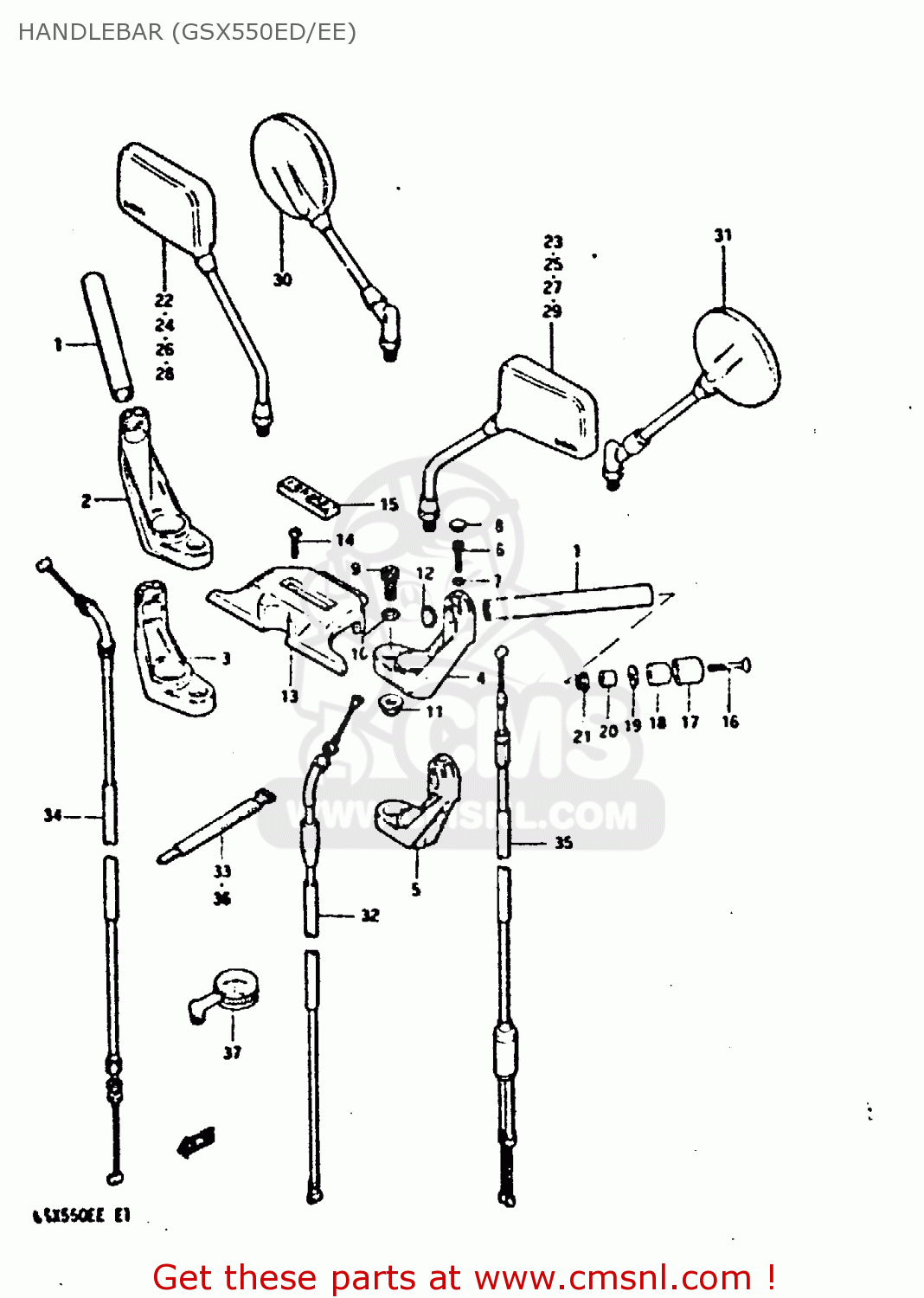

Handlebar (gsx550ed/ee) diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

HANDLEBAR (GSX550ED/EE) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
HANDLEBAR (GSX550ED/EE) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
HANDLEBAR (GSX550ED/EE) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5611043410
ref: 1-1
HANDLEBAR
5611043410
€ 20.00
1-2
5611131330
ref: 1-2
HANDLEBAR
5611131330
€ 20.00
2-1
5621131310
ref: 2-1
MODEL D
HOLDER,HANDLEBAR
€ 28.50
2-2
5621131311
ref: 2-2
MODEL E
HOLDER,HANDLEBAR,RIGHT
5621131311
€ 28.50
3-1
5621143421
ref: 3-1
MODEL D
HOLDER,HANDLEBAR
€ 62.50
3-2
5621143422
ref: 3-2
MODEL E
HOLDER,HANDLEBAR,RIGHT
5621143422
€ 62.50
4-1
5622131310
ref: 4-1
MODEL D
HOLDER,HANDLEBAR
€ 124.00
4-2
5622131311
ref: 4-2
MODEL E
HOLDER,HANDLEBAR,LEFT
€ 124.00
5-1
5622143421
ref: 5-1
MODEL D
HOLDER,HANDLEBAR
5622143421
€ 163.50
5-2
5622143422
ref: 5-2
MODEL E
HOLDER,HANDLEBAR,LEFT
5622143422
€ 163.50
6
0711008355
ref: 6
BOLT 8X35
0711008355
€ 4.00
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
0925006004
ref: 8
CAP(OD:14.5)
0925006004
€ 1.50
9
0910610023
ref: 9
BOLT(10X50)
0910610023
€ 6.00
10
0916410005
ref: 10
WASHER
0916410005
€ 6.50
11
0831921105
ref: 11
NUT
€ 3.00
12
5721543401
ref: 12
CAP,GRIP END
5721543401
€ 4.00
13
5617043400
ref: 13
PAD,HANDLEBAR
5617043400
€ 29.00
14
0211205358
ref: 14
SCREW
€ 1.50
15
6828143400
ref: 15
EMBLEM,HANDLE PAD
6828143400
€ 9.50
16
0213206555
ref: 16
SCREW 6X55
0213206555
€ 2.00
17
5627404700
ref: 17
CAP,BALANCER
5627404700
€ 96.00
18
5627149410
ref: 18
BALANCER,HANDLEBAR
5627149410
€ 14.50
19
5627534400
ref: 19
SPACER,BALANCER
5627534400
€ 2.50
20-1
5627244500
ref: 20-1
EXPANDER,HANDLE BALANCER
5627244500
€ 3.00
20-2
5627204700
ref: 20-2
EXPANDER,BALANCER
5627204700
€ 5.00
21
0915906024
ref: 21
NUT
0915906024
€ 2.00
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
NOTUSED
ref: 24
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
NOTUSED
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
NOTUSED
ref: 28
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
29
NOTUSED
ref: 29
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
30
5650009020
ref: 30
E2, E4, E21
MIRROR ASSEMBLY,RIGHT
5650009020
€ 344.50
31
5660009020
ref: 31
E2, E4, E21
MIRROR, REAR VIEW LH
€ 344.50
32
5650010020
ref: 32
E2 F.NO.110119~
MIRROR ASSEMBLY,REAR VIEW
5650010020
€ 90.00
33
5660010020
ref: 33
E2 F.NO.110119~
MIRROR ASSEMBLY,REAR VIEW
5660010020
€ 92.00
34-1
5820043420
ref: 34-1
CABLE ASSY,CLUTCH
5820043420
€ 22.50
34-2
5820043410
ref: 34-2
CABLE ASSY,CLUTCH
5820043410
€ 22.50
35
0940718301
ref: 35
CLAMP
0940718301
€ 6.00
36-1
5830043420
ref: 36-1
MODEL D
CABLE ASSEMBLY,THROTTLE
5830043420
€ 25.00
36-2
5830043421
ref: 36-2
MODEL E
CABLE ASSEMBLY,THROTTLE
€ 25.00
36-3
5830043410
ref: 36-3
MODEL D
CABLE ASSEMBLY,THROTTLE
5830043410
€ 27.00
36-4
5830043411
ref: 36-4
MODEL E
CABLE, THROTTLE (FLAT TYPE)
€ 27.00
37-1
5841043420
ref: 37-1
MODEL D
CABLE COMP,STARTER
5841043420
€ 32.50
37-2
5841043421
ref: 37-2
MODEL E
CABLE COMP,STARTER
5841043421
€ 32.50
37-3
5841043410
ref: 37-3
MODEL D
CABLE COMP,STARTER
€ 29.00
37-4
5841043411
ref: 37-4
MODEL E
CABLE, STARTER (FLAT TYPE)
5841043411
€ 29.00
38
0940718301
ref: 38
CLAMP
0940718301
€ 6.00
39
9620041330
ref: 39
GAUGE ASSY,AIR PRESSURE
9620041330
€ 77.50
