REAR MASTER CYLINDER

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

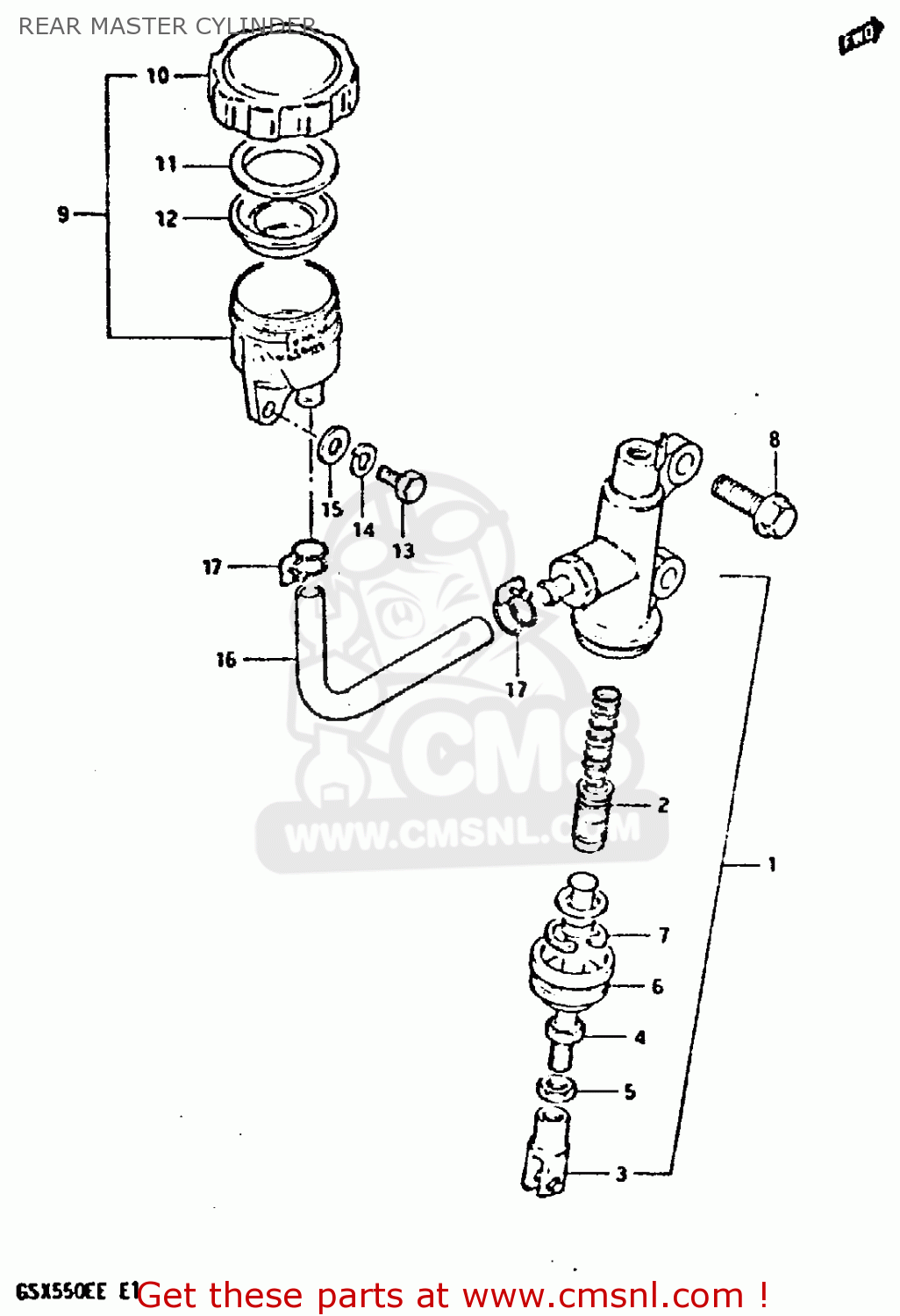

Rear master cylinder diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

6960043400
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 201.00

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

6969234300
ref: 3

YOKE

€ 11.00

6967031300
ref: 4

ROD,PUSH

€ 15.00

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6969145001
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

0151708255
ref: 8

BOLT

€ 2.50

6974034200
ref: 9

TANK ASSEMBLY,RESERVOIR

€ 27.50

5966918605
ref: 10

CAP

€ 16.50

5966818441
ref: 11

PLATE,DIAPHRAGM

€ 3.50

5966718441
ref: 12

DIAPHRAGM

€ 8.50

0110706168
ref: 13

BOLT, UPPER

€ 3.00

0832121068
ref: 14

LOCK WASHER

€ 2.50

0832221068
ref: 15

WASHER

€ 2.00

6973143401
ref: 16

HOSE,RESERVOIR TANK

€ 13.00

0940016302
ref: 17

CLAMP

€ 4.50
