REAR BRAKE HOSE

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

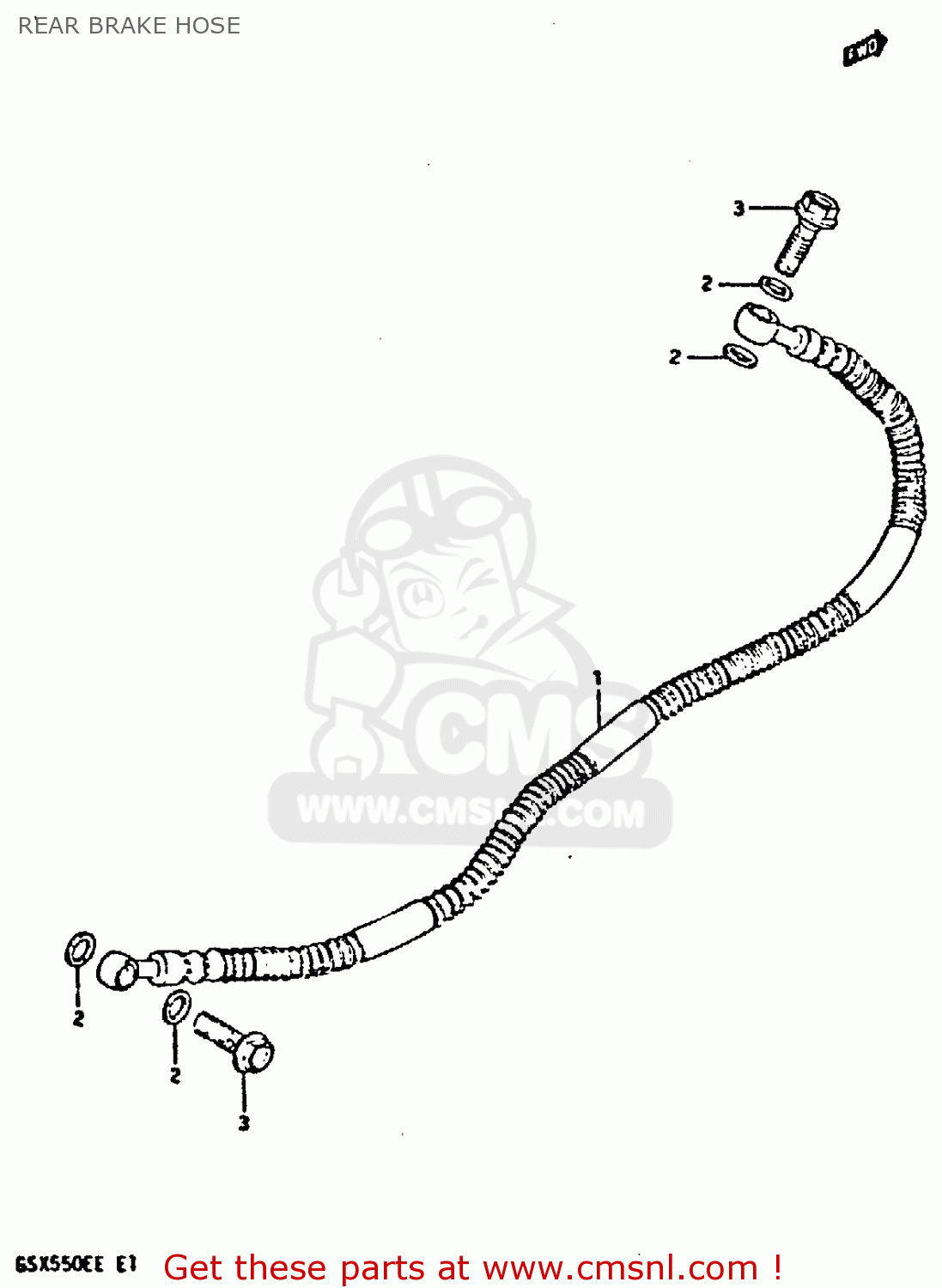

Rear brake hose diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

REAR BRAKE HOSE GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

REAR BRAKE HOSE GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

6948043403
ref: 1

HOSE,REAR BRAKE

€ 72.00

2

0916110005
ref: 2

WASHER

€ 2.00

3

0936010009
ref: 3

BOLT UNION

€ 6.50
