STEERING STEM (GSX550ESD/ESE/EFE)

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

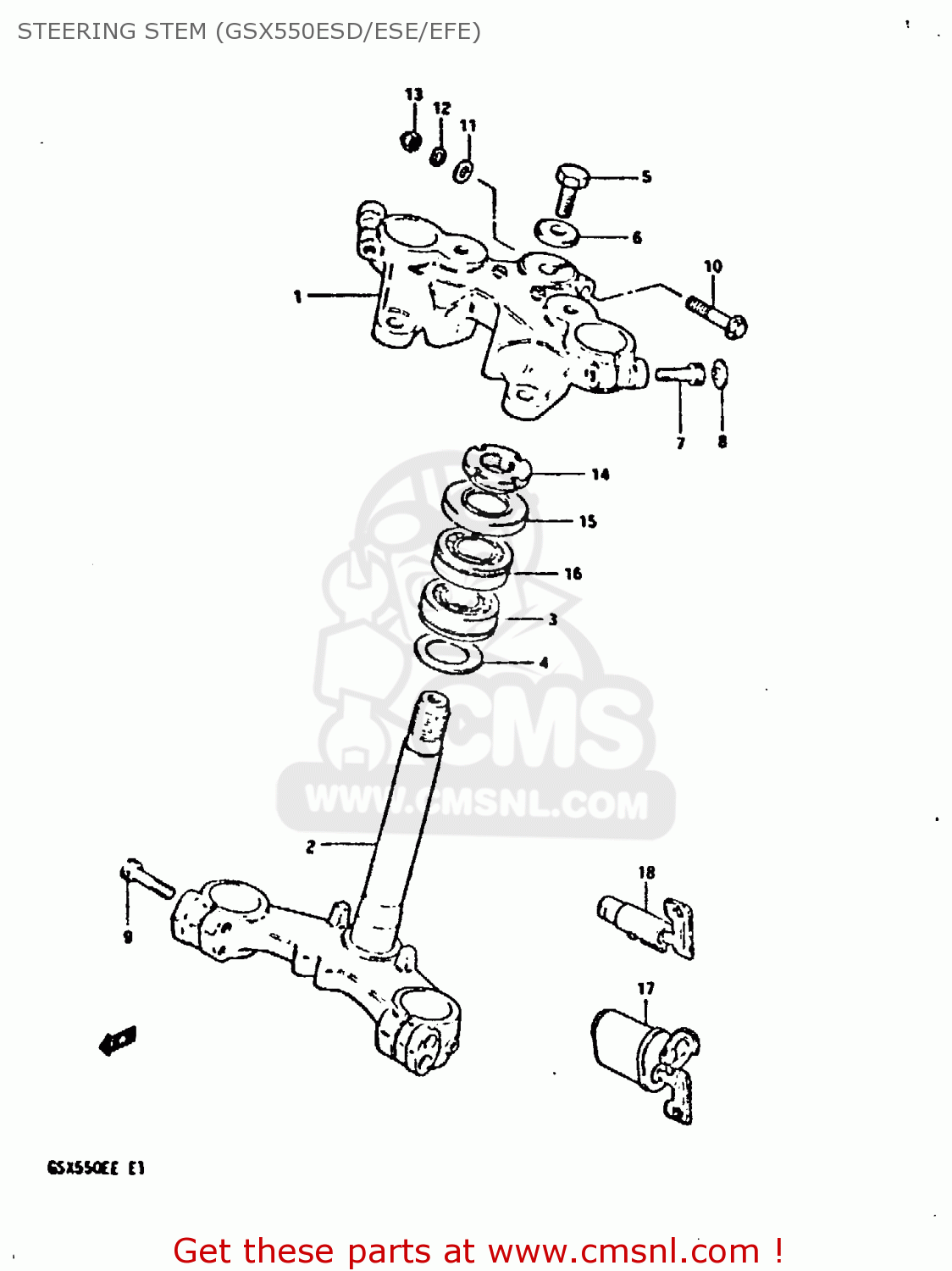

Steering stem (gsx550esd/ese/efe) diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

STEERING STEM (GSX550ESD/ESE/EFE) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

STEERING STEM (GSX550ESD/ESE/EFE) GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

513114340015T
ref: 1

HEAD,STEERING STEM

€ 134.00

2-1

514104340015T
ref: 2-1

STEM,STEERING

€ 217.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0926530005
ref: 3

BEARING

€ 49.50

4

0821130402
ref: 4

WASHER,THRUST

€ 4.00

5-1

5135349300A
ref: 5-1
GSX550ESD

NUT,STEM HEAD

€ 11.50

5-2

5135345380
ref: 5-2
GSX550ESE/EFE

NUT,STEM HEAD

€ 8.50

6

5135649300A
ref: 6

WASHER,STEERING STEM B

€ 4.00

7

0711210355
ref: 7

BOLT

€ 3.50

8

0925008010
ref: 8

CAP(OD:20)

€ 2.50

9

0711008305
ref: 9

BOLT, REAR (8X30)

€ 3.00

10

0151708504
ref: 10

BOLT, UPPER

€ 2.50

11

0832211085
ref: 11

WASHER,8.5X16X

€ 1.50

12

0832121085
ref: 12

LOCK WASHER

€ 2.50

13

0831311085
ref: 13

NUT,M8X1.25X12

€ 2.00

14

5163134200
ref: 14

NUT,STEERING STEM

€ 23.00

15

5164340502
ref: 15

DUST SEAL,STEERING UPR

€ 8.00

16

0926525008
ref: 16

TAPER,ROLLER BEARING

€ 48.50

17

NOTUSED
ref: 17

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

NOTUSED
ref: 18

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
