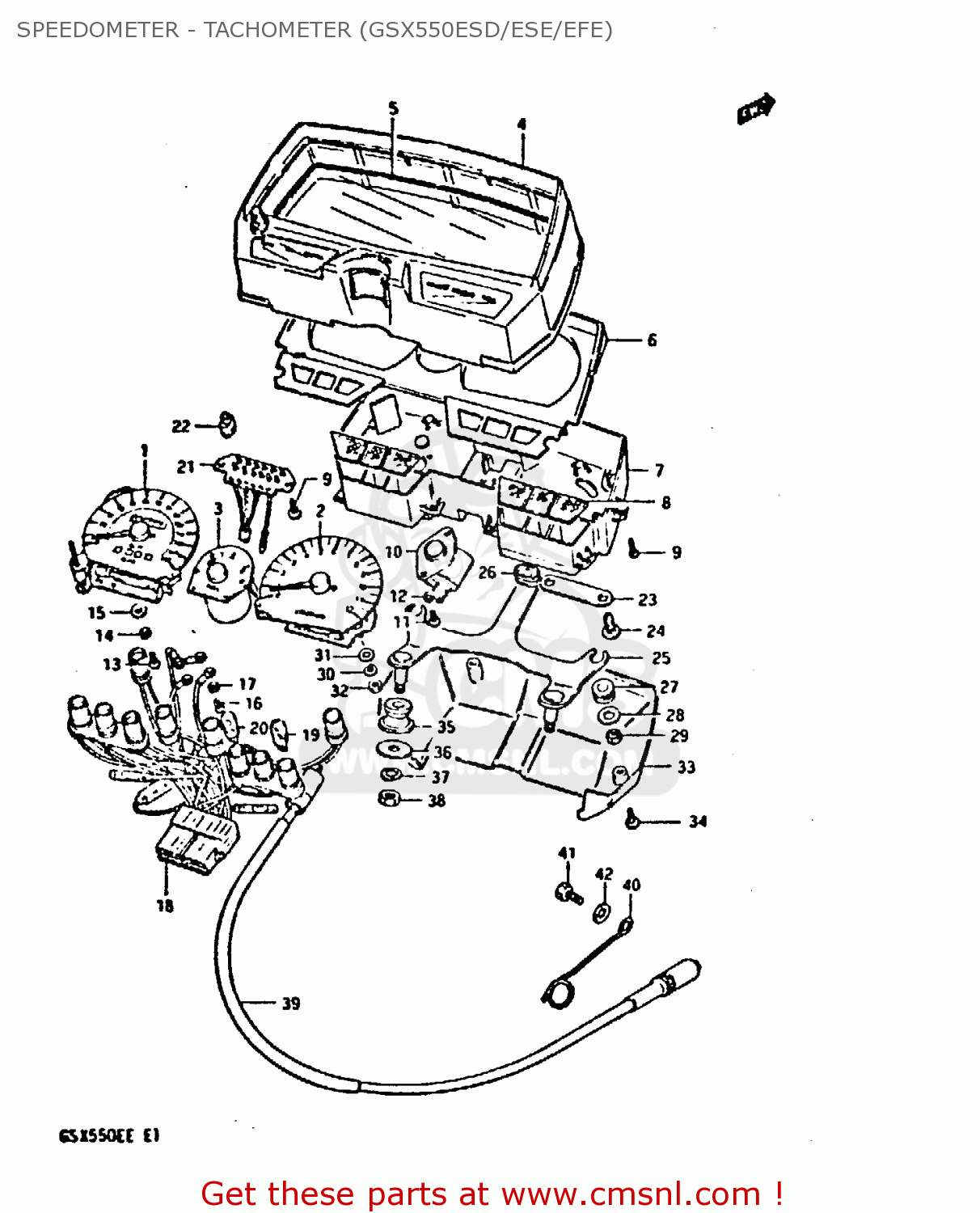

SPEEDOMETER - TACHOMETER (GSX550ESD/ESE/EFE) - GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

ref

part #

description

quantity

1-1

3412043450
ref: 1-1

METER,SPEEDOMETER (KM/MPH)

€ 157.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3422043401
ref: 2

TACHOMETER

€ 459.50

3

3432043410
ref: 3

METER,FUEL

€ 78.50

4-1

3415043410
ref: 4-1

HOOD,METER

€ 72.50

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

3411243410
ref: 5

GLASS,SPEEDOMETER

€ 36.50

6-1

3415343410
ref: 6-1

PLATE,METER WINDOW

€ 17.50

6-2

NOTUSED
ref: 6-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

3411143400
ref: 7

CASE,METER,INNER

€ 51.00

8

3630043810
ref: 8

LENS SET,PILOT

€ 24.00

9

3645634510
ref: 9

SCREW,GEAR INDICATOR

€ 2.00

10

3413143400
ref: 10

BOX,GEAR

€ 121.50

11

0211204108
ref: 11

SCREW 4X10

€ 2.00

12

0832121048
ref: 12

LOCK WASHER

€ 2.00

13

0211203108
ref: 13

SCREW

€ 1.50

14

0832121038
ref: 14

LOCK WASHER

€ 1.50

15

0832221038
ref: 15

WASHER

€ 2.00

16

0211203068
ref: 16

SCREW

€ 2.00

17

0832221038
ref: 17

WASHER

€ 2.00

18-1

3417043400
ref: 18-1

SOCKET,METER

€ 0.00

18-2

NOTUSED
ref: 18-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19

0947112082
ref: 19

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

20

0947112077
ref: 20

BULB(12V1.7W,T10,WB121)

€ 1.00

21

3645343410
ref: 21

SOCKET,GEAR INDICATOR

€ 30.00

22

0947112071
ref: 22

BULB(14V1.12W)

€ 5.00

23

3418243400
ref: 23

PLATE,COUPLER

€ 3.00

24

0321204109
ref: 24

SCREW

€ 2.00

25

3495043410
ref: 25

BRACKET,METER

€ 17.00

26

3499545720
ref: 26

CUSHION,METER

€ 3.00

27

3499643410
ref: 27

CUSHION,METER

€ 3.00

28

3418130520
ref: 28

WASHER,METER

€ 1.50

29

0831022058
ref: 29

NUT

€ 2.50

30

0832121048
ref: 30

LOCK WASHER

€ 2.00

31

3418143400
ref: 31

WASHER,SPEEDOMETER

€ 2.00

32

0831011048
ref: 32

NUT

€ 2.00

33

3419343400
ref: 33

COVER,METER,UNDER

€ 51.00

34

0311204125
ref: 34

SCREW

€ 1.50

35

3495631001
ref: 35

CUSHION,METER BRACKET

€ 4.50

36

0916008057
ref: 36

WASHER (8.5X20X1.6)

€ 2.00

37

0832121085
ref: 37

LOCK WASHER

€ 2.50

38

0831011085
ref: 38

NUT

€ 1.50

39

3491038420
ref: 39

CABLE ASSEMBLY,SPEEDOMETER

€ 22.50

40

3493845100
ref: 40

CLAMP,SPEEDOMETER CABLE

€ 14.50

41

0110706168
ref: 41

BOLT, UPPER

€ 3.00

42

0832221068
ref: 42

WASHER

€ 2.00

SPEEDOMETER - TACHOMETER (GSX550ESD/ESE/EFE)

all assemblies
