CYLINDER

GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

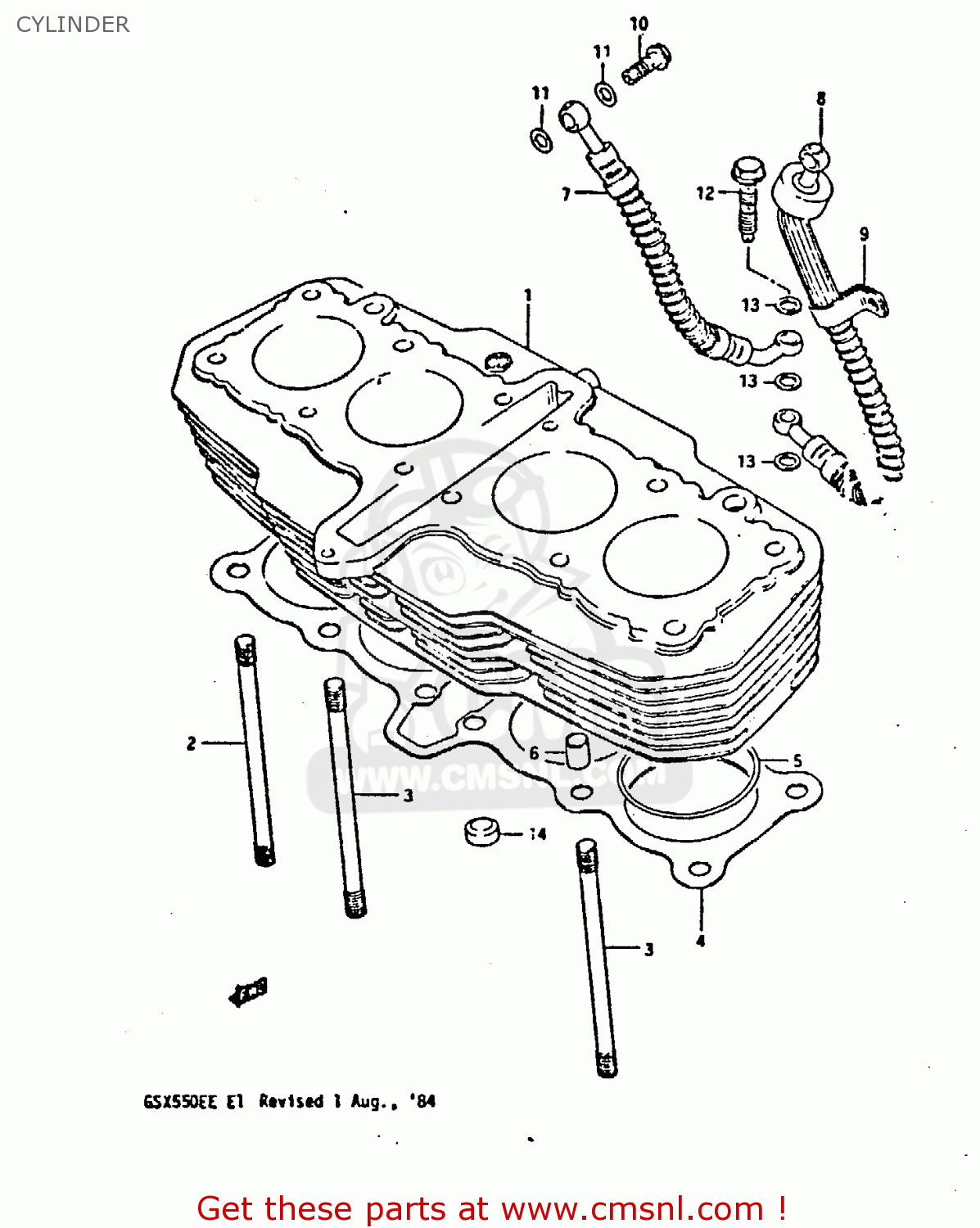

Cylinder diagram GSX550E 1984 (E) (E01 E06 E16 E17 E18 E21 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1121043403
ref: 1

CYLINDER

€ 818.00

0910808058
ref: 2

STUD

€ 6.00

0910808129
ref: 3

STUD

€ 13.00

1124143402
ref: 4
FROM 11241-43401

GASKET,CYLINDER (MCA)

€ 20.00

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

0920611003
ref: 6

PIN

€ 2.00

1128143404
ref: 7

HOSE,OIL CRANKCASE,R

€ 87.00

1128343404
ref: 8
FROM 11282-43404

HOSE,OIL CRANKCASE,L

€ 77.50

1128443400
ref: 9

CLAMP,OIL HOSE CRANKCASE

€ 4.00

0936008008
ref: 10

BOLT UNION

€ 4.00

0916808008
ref: 11

GASKET 8.2X14X1 (NAS)

€ 1.00

1128531301
ref: 12

BOLT,OIL PIPE

€ 12.50

0916110009
ref: 13
FROM 09161-10005

WASHER(10X15X1.5)

€ 2.00

1125202300
ref: 14

PAD,CYLINDER HEAD

€ 6.50
