AIR CLEANER

GSX750 2000 (Y)

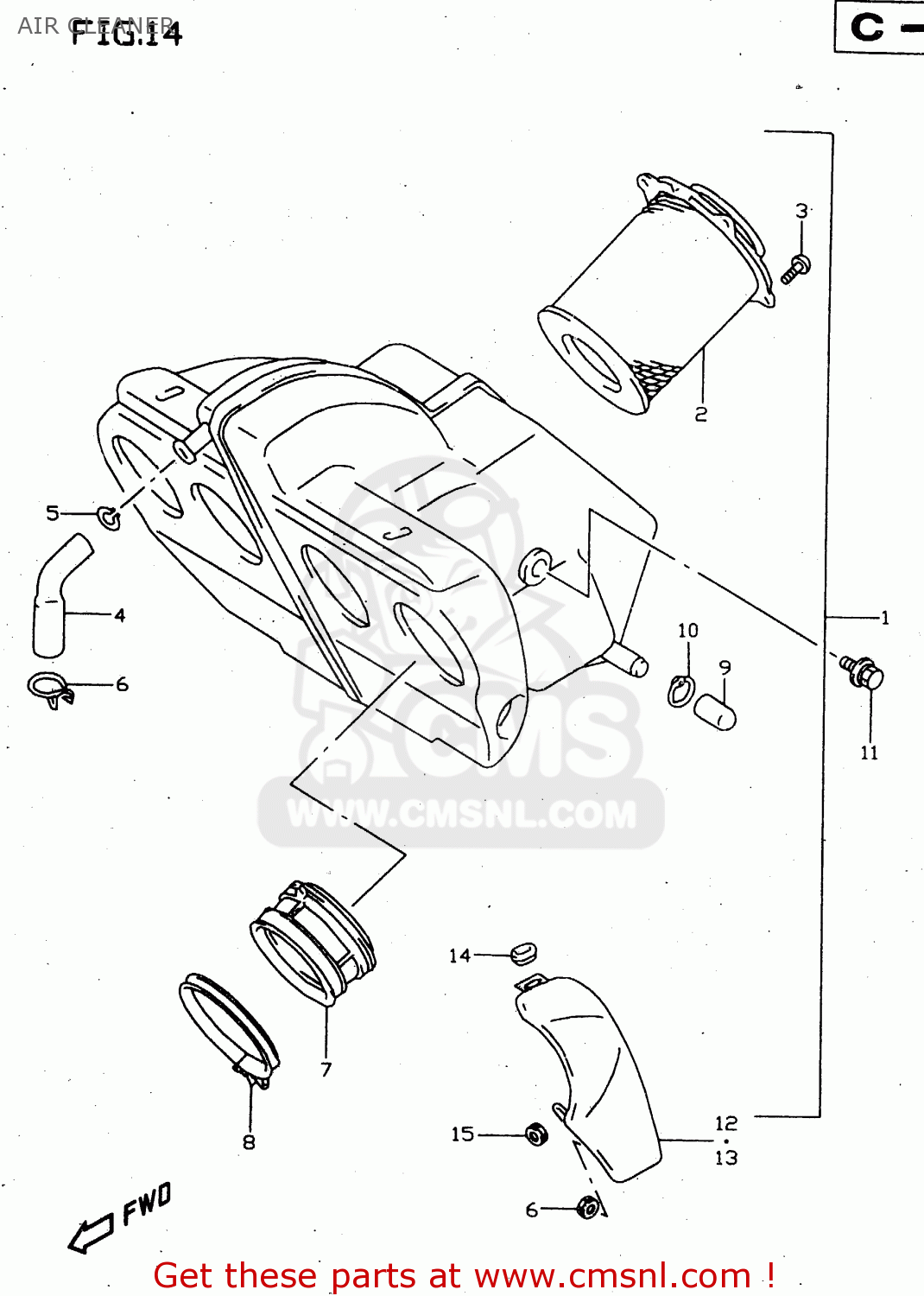

Air cleaner diagram GSX750 2000 (Y)

AIR CLEANER GSX750 2000 (Y)

AIR CLEANER GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1370003F00
ref: 1

CLEANER ASSY, AIR

€ 262.50

2

1378003F00
ref: 2

FILTER ASSY,AIR CLEANER

€ 47.50

3

0214205127
ref: 3

SCREW

€ 1.50

4

1385003F00
ref: 4

TUBE,BREATHER

€ 18.00

5

0940114404
ref: 5

CLIP

€ 2.00

6

0940116401
ref: 6

CLIP

€ 3.00

7

1388126E00
ref: 7

TUBE,OUTLET

€ 28.50

8

0940256208
ref: 8

CLAMP

€ 3.50

9

1385941B10
ref: 9

PLUG

€ 5.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

0158006163
ref: 11

BOLT

€ 2.50

12

1391003F00
ref: 12

COVER,AIR CLEANER,R

€ 86.50

13

1392003F00
ref: 13

COVER,AIR CLEANER,L

€ 86.50

14

0930805019
ref: 14

GROMMET

€ 8.00

15

0932006504
ref: 15

CUSHION

€ 4.00

16

0932008018
ref: 16

CUSHION

€ 4.00
