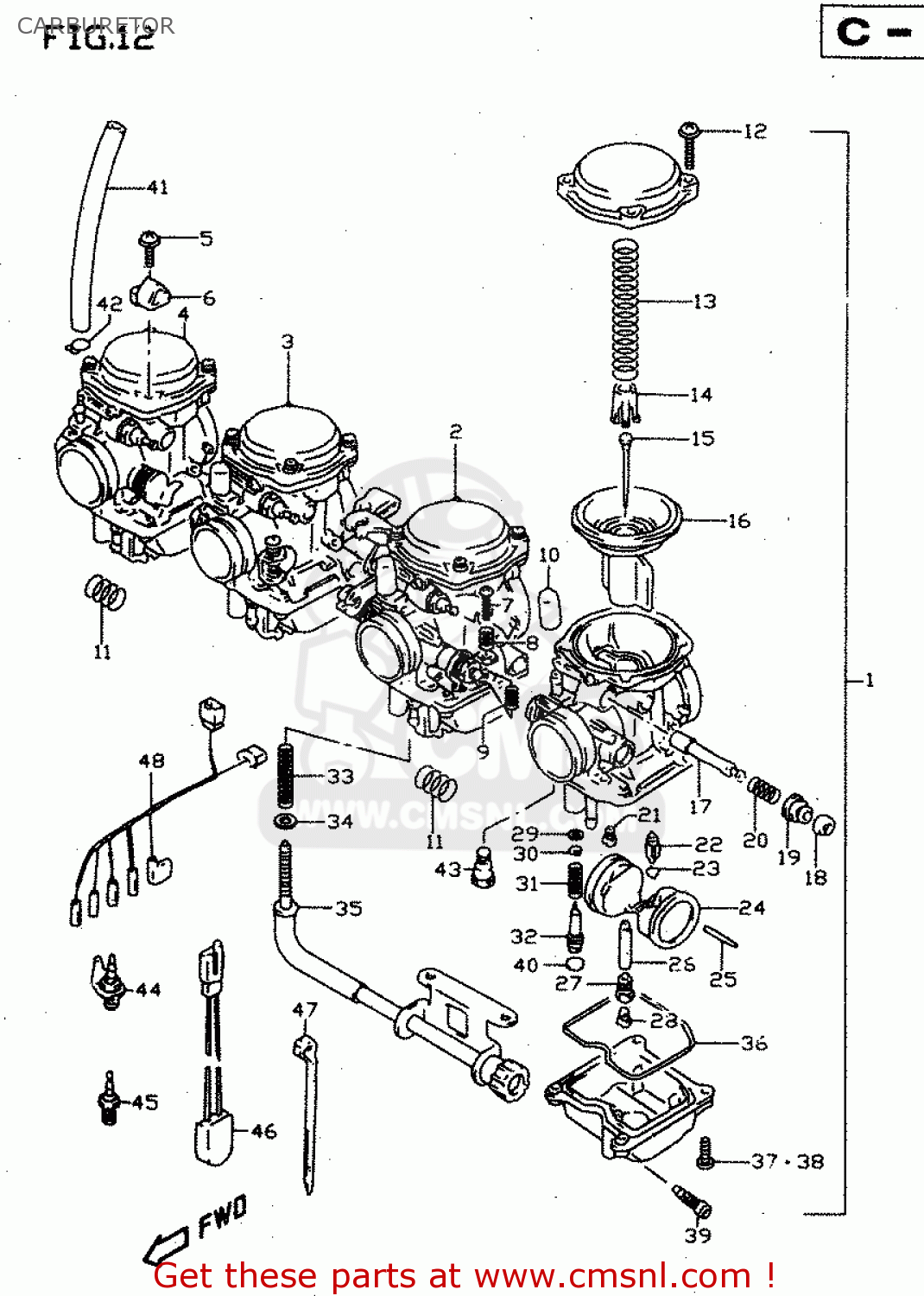

CARBURETOR

ref

part #

description

quantity

1

1320103F40
ref: 1
E2

CARBURETOR ASSY, LH

€ 0.00

1

1320103F10
ref: 1
E4, E25, E34

CARBURETOR

€ 713.50

1

1320103F20
ref: 1
E17, E22,

CARBURETOR ASSY, LH

€ 0.00

1

1320103F30
ref: 1
E18

CARBURETOR ASSY, LH

€ 0.00

2

1320203F40
ref: 2
E2

CARBURETOR ASSY, ML

€ 0.00

2

1320203F10
ref: 2
E4, E25, E34

CARBURETOR

€ 702.00

2

1320203F20
ref: 2
E17, E22

CARBURETOR ASSY, ML

€ 0.00

2

1320203F30
ref: 2
E18

CARBURETOR ASSY, ML

€ 176.00

3

1320303F40
ref: 3
E2

CARBURETOR ASSY, MR

€ 0.00

3

1320303F10
ref: 3
E4, E25, E34

CARBURETOR

€ 702.00

3

1320303F20
ref: 3
E17, E22

CARBURETOR ASSY, MR

€ 0.00

3

1320303F30
ref: 3
E18

CARBURETOR ASSY, MR

€ 0.00

4

1320403F40
ref: 4
E2

CARBURETOR ASSY, RH

€ 0.00

4

1320403F10
ref: 4
E4, E25, E34

CARBURETOR

€ 517.00

4

1320403F20
ref: 4
E17, E22

CARBURETOR ASSY, RH

€ 0.00

4

1320403F30
ref: 4
E18

CARBURETOR ASSY, RH

€ 470.00

5

1360226E30
ref: 5

SCREW

€ 3.00

6

1362426E00
ref: 6

STAY,PLATE

€ 16.00

7

1326726E10
ref: 7

SCREW

€ 3.50

8

1327126E10
ref: 8

SPRING

€ 4.50

9

1326826E10
ref: 9

SPRING

€ 5.00

10

1350826E00
ref: 10

CAP

€ 6.00

11

1327126E20
ref: 11

SPRING

€ 6.00

12

0211204163
ref: 12

SCREW 4X16

€ 1.00

13

1341726EA0
ref: 13

SPRING

€ 5.50

14

1338226E00
ref: 14

SEAT,SPRING

€ 15.00

15

1338326EA0
ref: 15

NEEDLE,JET

€ 19.00

16

1350026EA0
ref: 16

PISTON

€ 131.00

17

1341126E00
ref: 17

VALVE,STARTER

€ 52.50

18

1341926E00
ref: 18

CAP

€ 7.00

19

1341826E00
ref: 19

CAP

€ 7.00

20

1341726E10
ref: 20

SPRING

€ 7.00

21

0949235020
ref: 21

JET,SLOW(35)

€ 13.50

22

1337026E00
ref: 22

VALVE ASSY,NEEDLE

€ 17.50

23

1337526E00
ref: 23

CLIP

€ 5.50

24

1325026E00
ref: 24

FLOAT ASSY

€ 64.00

25

1325426E00
ref: 25

PIN,FLOAT

€ 3.00

26

0949400863
ref: 26

JET,NEEDLE

€ 26.50

26

0949400869
ref: 26
E18

JET,NEEDLE

€ 36.50

27

1333126E00
ref: 27

HOLDER,NEEDLE JET

€ 23.50

28

0949121027
ref: 28

JET,MAIN(105)

€ 16.50

29

1329526E00
ref: 29

O RING

€ 4.50

30

1329126E00
ref: 30

WASHER

€ 3.00

31

1326826E00
ref: 31

SPRING

€ 5.00

32

1327926E00
ref: 32

SCREW,ADJUST

€ 11.00

32

1327926E00
ref: 32
E18

SCREW,ADJUST

€ 11.00

33

1327126EA0
ref: 33

SPRING

€ 4.50

34

1342726E00
ref: 34

WASHER

€ 2.50

35

1327003FA0
ref: 35

ADJUSTER

€ 78.50

36

1325826E00
ref: 36

O RING

€ 8.50

37

1360226E10
ref: 37

SCREW

€ 6.00

38

0211204203
ref: 38

SCREW

€ 1.00

39

1324726E00
ref: 39

PLUG,DRAIN

€ 15.50

40

1328126E00
ref: 40
E18

CAP

€ 6.00

41

0935250903600
ref: 41
L:600->320

HOSE(5X9X600)

€ 28.50

42

1367126E00
ref: 42

CLIP

€ 3.50

43

1361326E70
ref: 43
E2

ADAPTER,HEATER

€ 21.00

44

1365025E01
ref: 44
E2

HEATER ASSY,CARBURETOR(15W)

€ 35.00

45

1365125E01
ref: 45
E2, ->13650-25E01

HEATER, CARB.

€ 35.00

46

1365525E00
ref: 46
E2

THERMO SWITCH,CARB HEATER

€ 36.00

47

0940718402
ref: 47
E2

CLAMP(L:165)

€ 2.50

48

3685603F00
ref: 48
E2

WIRE,CARB HEATER LEAD

€ 28.00

all assemblies
