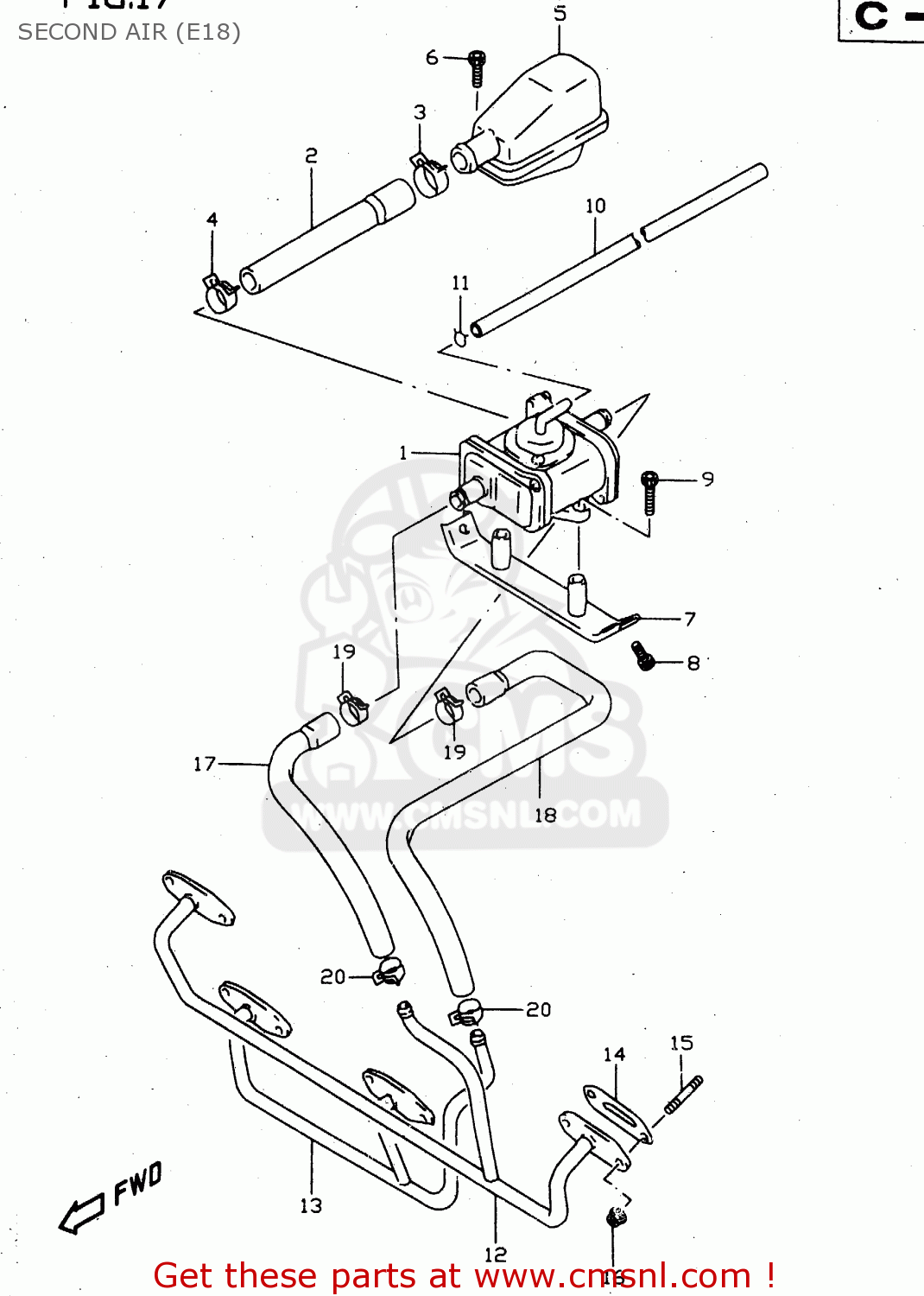

SECOND AIR (E18)

ref

part #

description

quantity

1

1845048E00
ref: 1

VALVE ASSY,2ND AIR

€ 0.00

2

1871103F00
ref: 2

HOSE, 2ND AIR CLEANER

€ 0.00

3

0940120404
ref: 3

CLIP

€ 1.50

4

0940118404
ref: 4

CLIP

€ 2.00

5

1870048E00
ref: 5

CLEANER,2ND AIR

€ 30.50

6

0712006163
ref: 6

BOLT MAGNETO S

€ 2.50

7

1861003F00
ref: 7

BRACKET,2ND AIR VALVE

€ 0.00

8

0712006163
ref: 8

BOLT MAGNETO S

€ 2.50

9

0712006503
ref: 9

BOLT,CYL.OIL P

€ 2.50

10

0935940701600
ref: 10
L:600->350

HOSE(4X7X600)

€ 9.00

11

0940106101
ref: 11

CLIP

€ 2.50

12

1841003F00
ref: 12

PIPE,2ND AIR OUTER

€ 0.00

13

1842003F00
ref: 13

PIPE,2ND AIR INNER

€ 0.00

14

1844117C10
ref: 14

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

15

0142106163
ref: 15

STUD BOLT

€ 2.00

16

0831610063
ref: 16

NUT

€ 2.50

17

1846103F00
ref: 17

HOSE,2ND AIR VALVE FR

€ 0.00

18

1847103F00
ref: 18

HOSE, 2ND AIR VALVE REAR

€ 0.00

19

0940115404
ref: 19

CLIP

€ 2.50

20

0940113417
ref: 20

CLIP

€ 2.50
