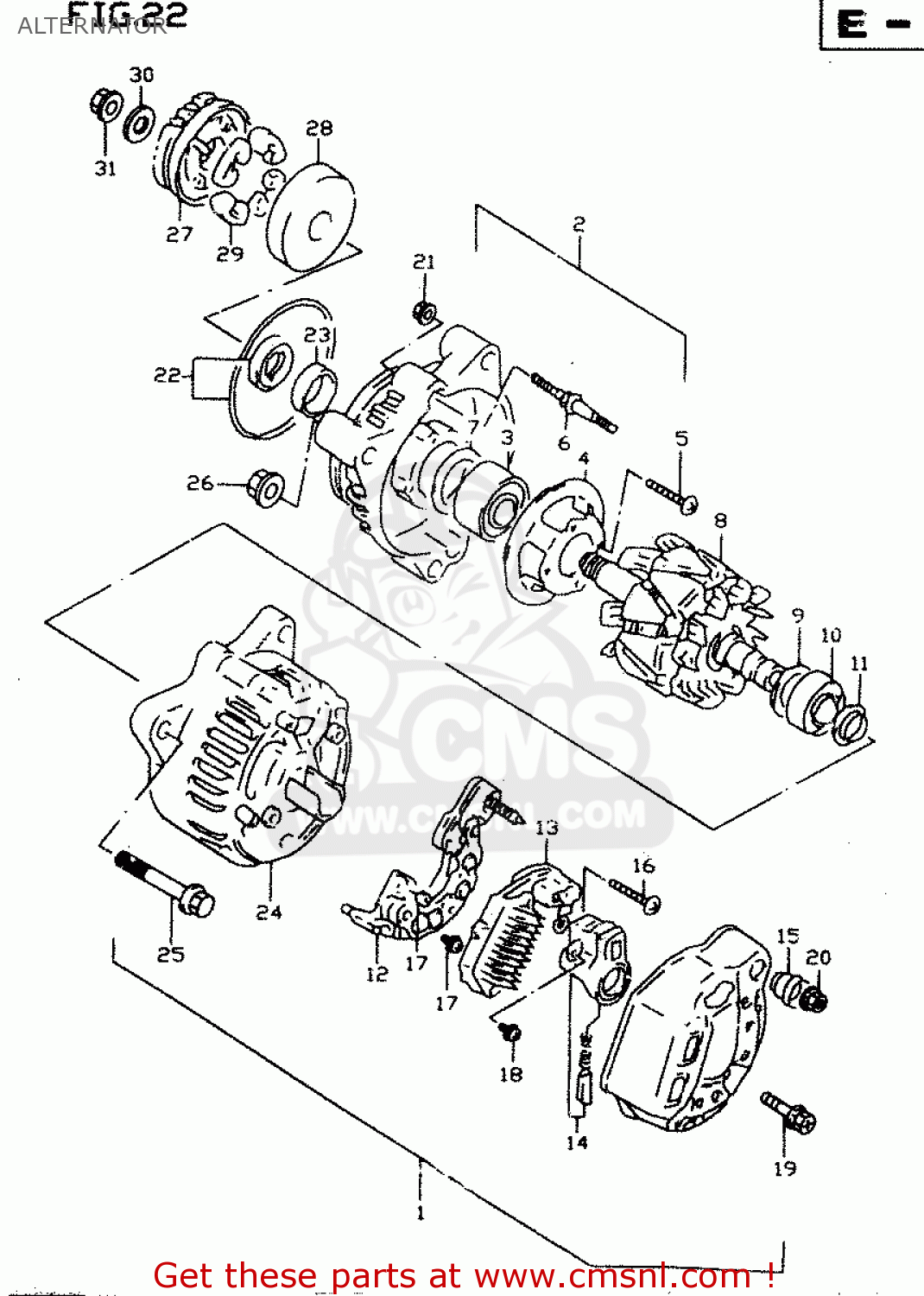

ALTERNATOR

ref

part #

description

quantity

1

3140003F10
ref: 1

ALTERNATOR ASS

€ 1,482.00

2

3158003F00
ref: 2

FRAME,DRIVE END

€ 253.00

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3158503F00
ref: 4

RETAINER

€ 8.00

5

3158603F00
ref: 5

SCREW(4X14)

€ 2.50

6

3158785250
ref: 6

STUD BOLT

€ 9.00

7

3161348B00
ref: 7

COVER,BEARING

€ 5.50

8

3171003F00
ref: 8

ROTOR ASSY

€ 358.50

9

3161382610
ref: 9

COVER,BEARING

€ 3.50

10

3161248B00
ref: 10

BEARING

€ 42.50

11

3161327A10
ref: 11

COVER(2)

€ 5.50

12

3162103F00
ref: 12

HOLDER,RECTIFIER

€ 194.00

13

3250003F00
ref: 13

REGULATOR ASSEMBLY

€ 242.00

14

3165603F00
ref: 14

HOLDER,BRUSH

€ 46.00

15

3151485250
ref: 15

INSULATOR,TERMINAL

€ 8.00

16

0211234253
ref: 16

SCREW

€ 2.00

17

0211204063
ref: 17

SCREW 4X6

€ 2.00

18

0211204087
ref: 18

SCREW

€ 1.50

19

0211204253
ref: 19

SCREW

€ 2.00

20

0836115063
ref: 20

NUT

€ 1.50

21

0831610053
ref: 21

NUT

€ 2.50

22

3178027X50
ref: 22

SERVICE KIT(A)

€ 47.50

23

3177606B00
ref: 23

SPACER

€ 22.00

24

3161103F01
ref: 24
<-31611-03F00

FRAME,END

€ 180.00

25

0155008653
ref: 25

BOLT

€ 3.00

26

0836135068
ref: 26

NUT

€ 2.00

27

2273019C02
ref: 27

GEAR,GENERATOR DRIVEN

€ 112.50

28

2273327A05
ref: 28

HOUSING,GENERATOR GEAR DAMPER

€ 95.00

29

2123106B00
ref: 29

DAMPER,GENERATOR DRIVEN

€ 5.50

30

0821110283
ref: 30

WASHER

€ 3.00

31

0831620103
ref: 31

NUT

€ 3.50
