CYLINDER

GSX750 2000 (Y)

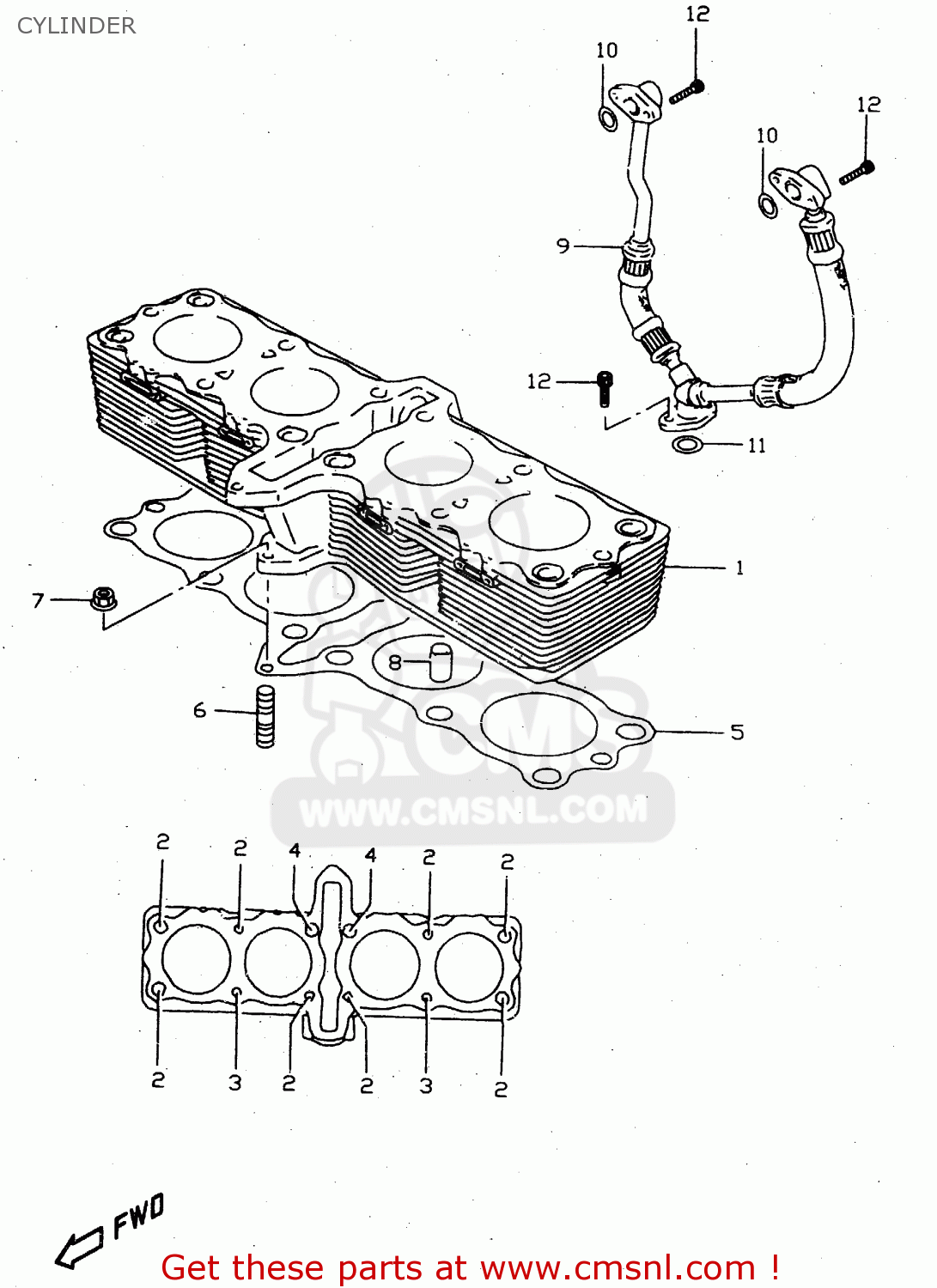

Cylinder diagram GSX750 2000 (Y)

CYLINDER GSX750 2000 (Y)

CYLINDER GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1121003F10
ref: 1

CYLINDER

€ 867.50

1

1121003F20
ref: 1
E18

CYLINDER

€ 867.50

2

0910810109
ref: 2

STUD BOLT (L:150)

€ 11.00

3

0910810073
ref: 3

BOLT,STUD

€ 9.50

4

0910810099
ref: 4

BOLT,STUD

€ 15.50

5

1124127A04
ref: 5

GASKET,CYLINDER (NAS)

€ 20.00

6

0142106203
ref: 6

STUD,M6X1X32

€ 2.50

7

0831610063
ref: 7

NUT

€ 2.50

8

0920613017
ref: 8

PIN(13X10.4X20)

€ 9.00

9

1132827A04
ref: 9

HOSE,OIL HEAD COOLER

€ 241.00

10

0928014011
ref: 10

O RING(D:2.5,ID:13.8)

€ 3.50

11

0928015007
ref: 11

O RING(D:2.4,ID:15.8)

€ 2.00

12

0713006163
ref: 12

BOLT,OIL FILLE

€ 3.00
