HANDLE BAR

GSX750 2000 (Y)

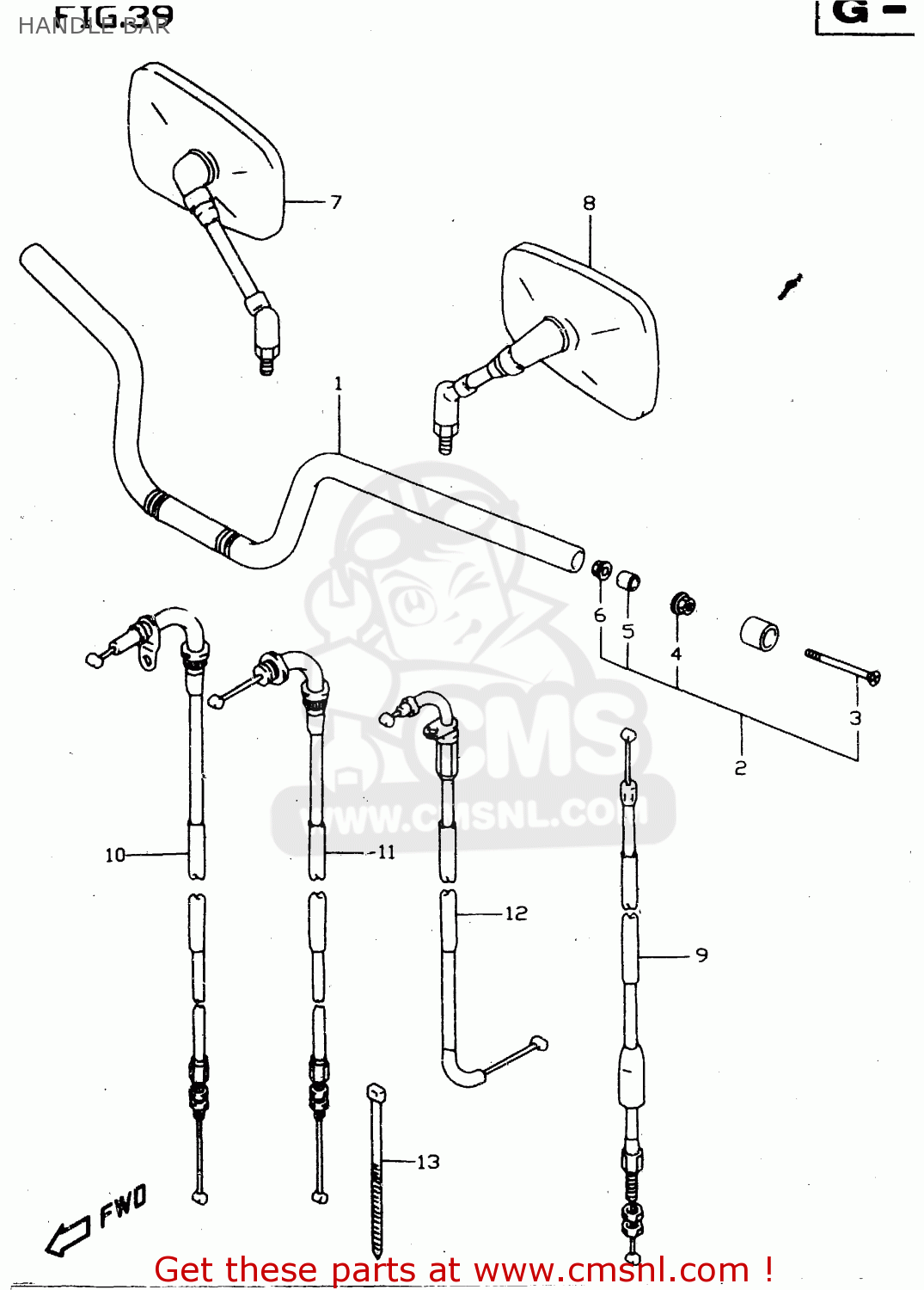

Handle bar diagram GSX750 2000 (Y)

HANDLE BAR GSX750 2000 (Y)

HANDLE BAR GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

5611123E00
ref: 1

HANDLEBAR

€ 113.50

2

5620032821
ref: 2

BALANCER SET,HANDLEBAR

€ 21.00

3

0212206803
ref: 3

SCREW

€ 2.50

4

0831610083
ref: 4

NUT

€ 3.00

5

5627244500
ref: 5

EXPANDER,HANDLE BALANCER

€ 3.00

6

0915906024
ref: 6

NUT

€ 2.00

7

5650003F00
ref: 7

MIRROR ASSY,RR VIEW,R

€ 427.00

8

5660003F00
ref: 8

MIRROR ASSY,RR VIEW,L

€ 90.00

9

5820003F00
ref: 9

CABLE ASSY,CLUTCH

€ 29.00

10

5830003F00
ref: 10

CABLE ASSY,THROTTLE NO.1

€ 38.00

11

5830003F10
ref: 11

CABLE ASSY,THROTTLE NO.2

€ 37.50

12

5841003F00
ref: 12

CABLE,STARTER

€ 40.00

13

0940725401
ref: 13

CLAMP(L:235)

€ 4.00
