FUEL TANK

GSX750 2000 (Y)

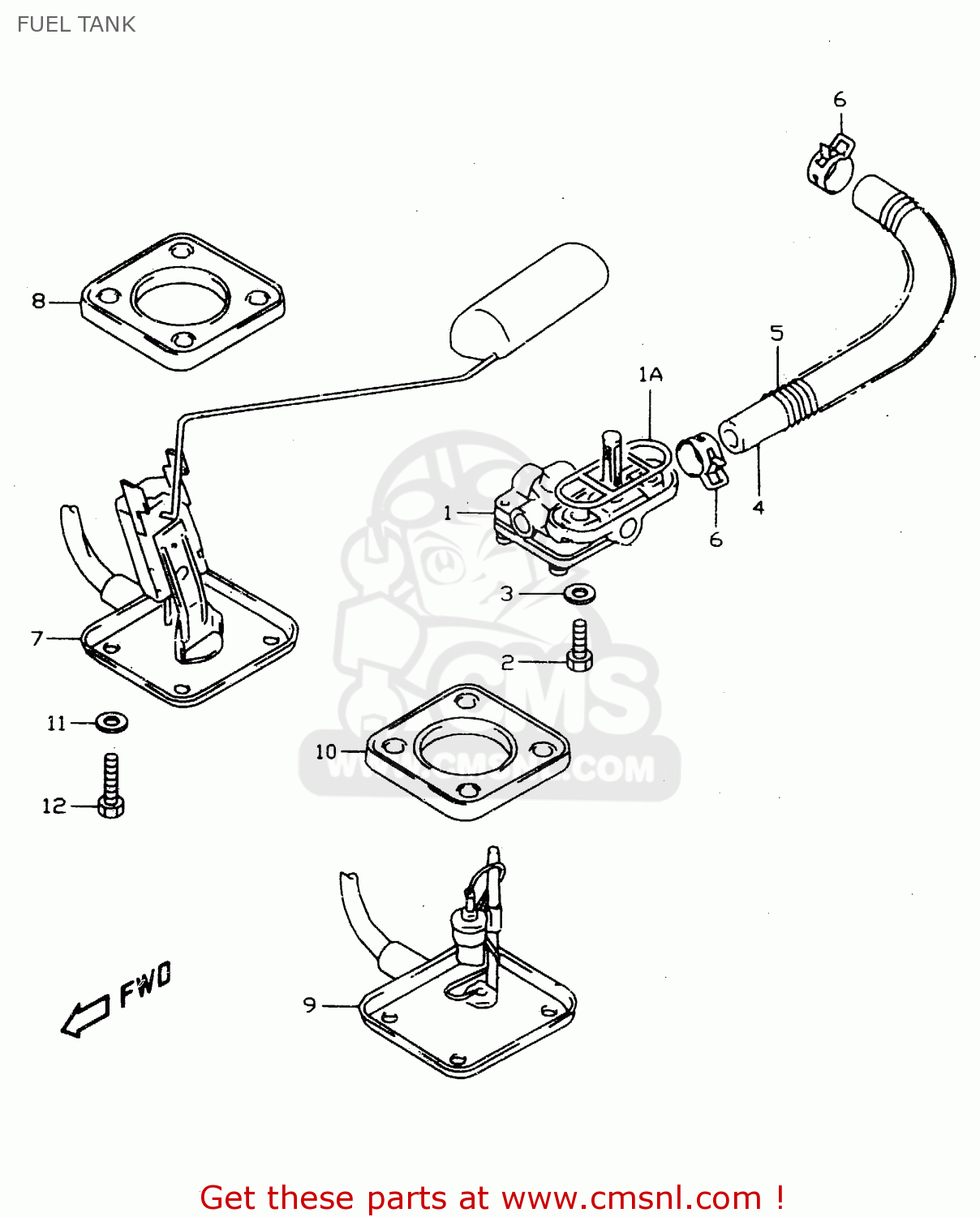

Fuel tank diagram GSX750 2000 (Y)

FUEL TANK GSX750 2000 (Y)

FUEL TANK GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

4430003F00
ref: 1

COCK ASSY, FUEL

€ 123.50

1A

4435133E00
ref: 1A

O RING,JOINT

€ 5.50

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

0935570125600
ref: 4

HOSE(7X12X600)

€ 26.00

5

0944014047
ref: 5

SPRING

€ 13.50

6

0940111407
ref: 6

CLIP

€ 2.50

7

3481003F00
ref: 7

GAUGE ASSY,FUEL LEVEL

€ 120.00

8

3482503F00
ref: 8

PACKING (NAS)

€ 8.50

9

3481003F20
ref: 9

GAUGE ASSY,FUEL LEVEL

€ 123.00

10

3482503F00
ref: 10

PACKING (NAS)

€ 8.50

11

0916806026
ref: 11

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

12

0912806057
ref: 12

BOLT(6X20)

€ 2.00
