SIGNAL GENERATOR

GSX750 2000 (Y)

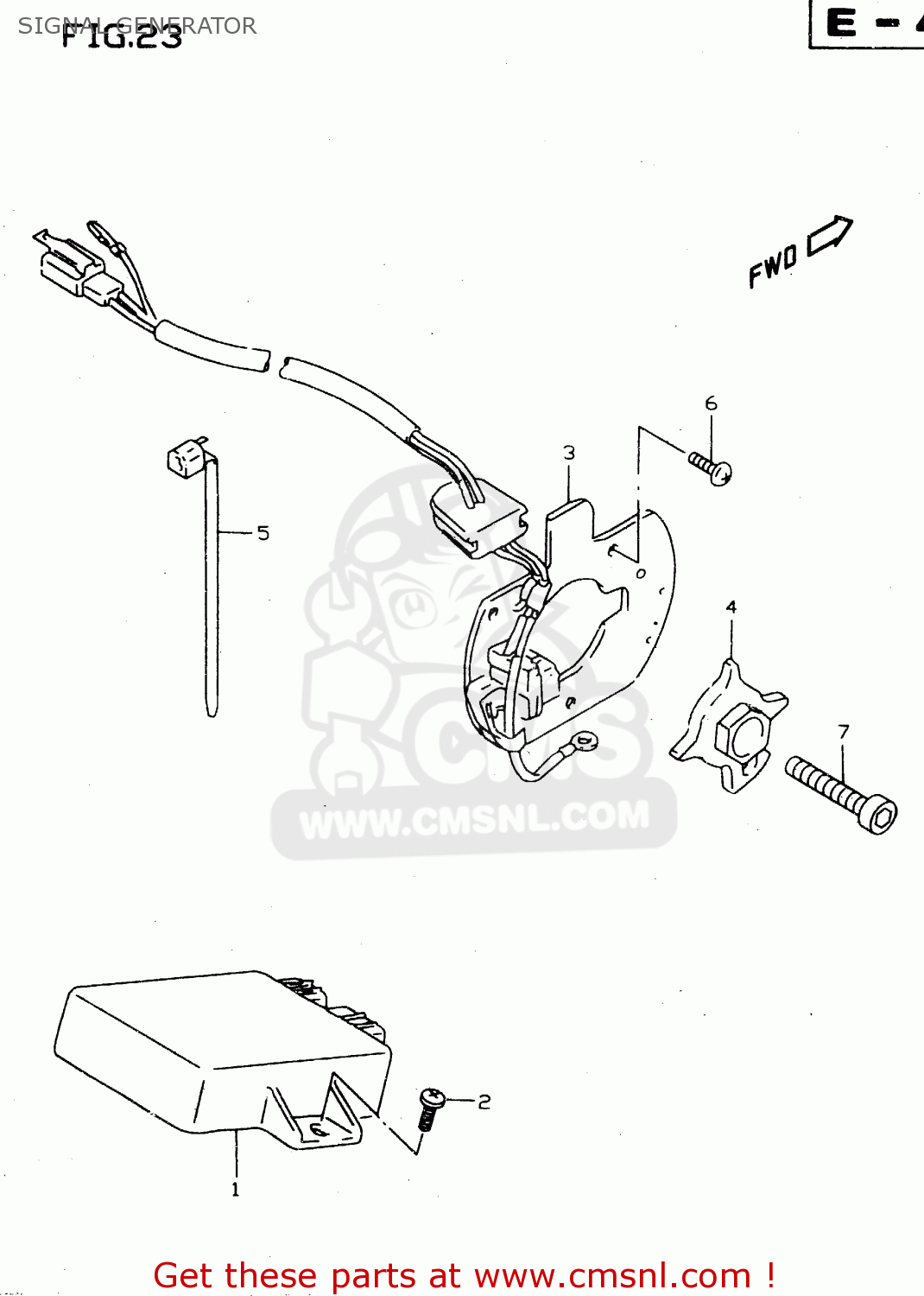

Signal generator diagram GSX750 2000 (Y)

SIGNAL GENERATOR GSX750 2000 (Y)

SIGNAL GENERATOR GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3290003F10
ref: 1

IGNITOR ASSY

€ 497.50

2

0214206123
ref: 2

SCREW 6X12

€ 2.00

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

0211205103
ref: 6

SCREW

€ 2.00

7

0713008303
ref: 7

BOLT

€ 3.00
