BATTERY

GSX750 2000 (Y)

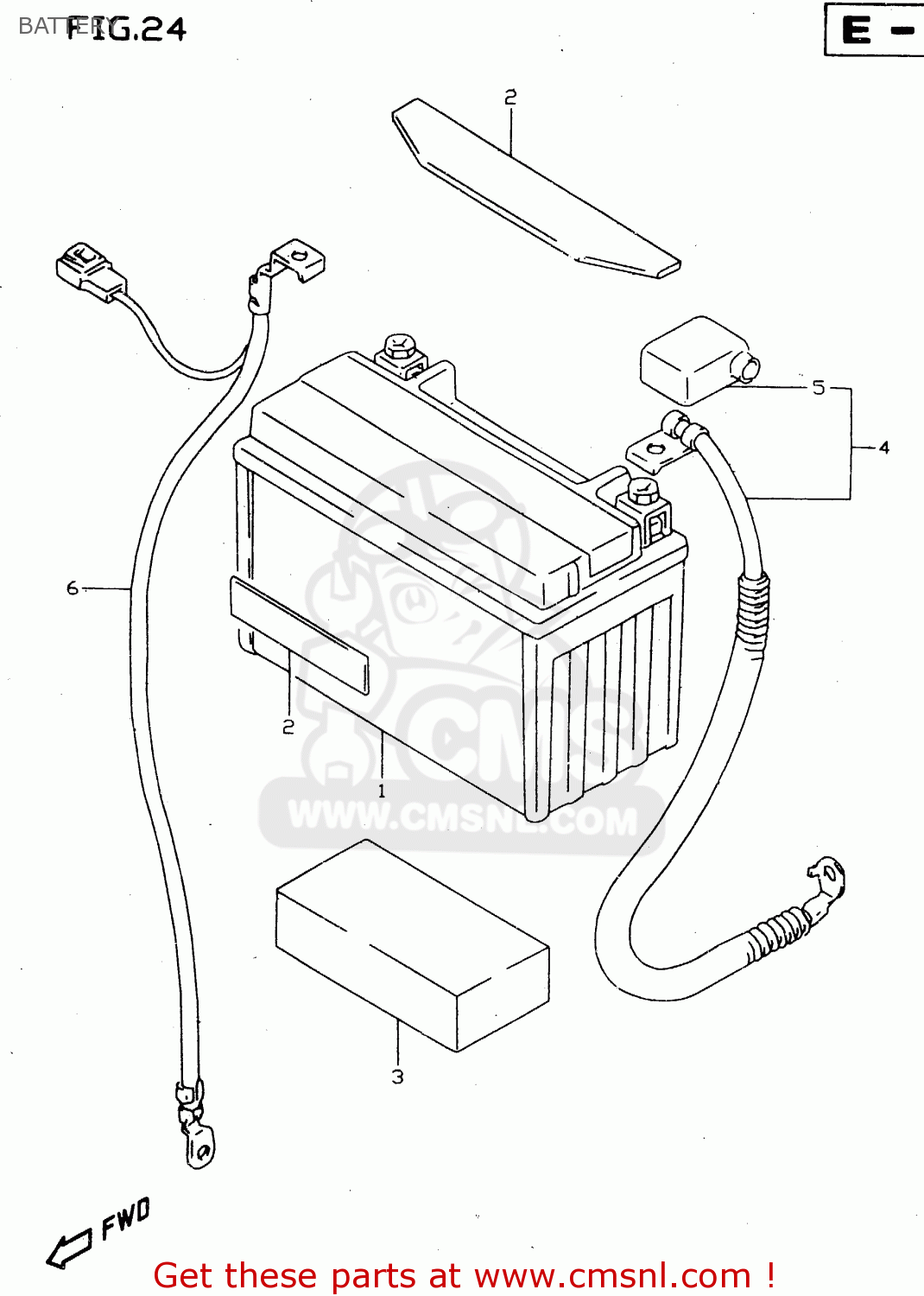

Battery diagram GSX750 2000 (Y)

BATTERY GSX750 2000 (Y)

BATTERY GSX750 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365247D01
ref: 3

CUSHION,BATTERY

€ 7.00

4

3382003F00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 22.00

5

3362410D00
ref: 5

CAP,BATTERY PLUS

€ 4.00

6

3386003F00
ref: 6

WIRE,BATT. MIN

€ 17.50
