CUSHION LEVER

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

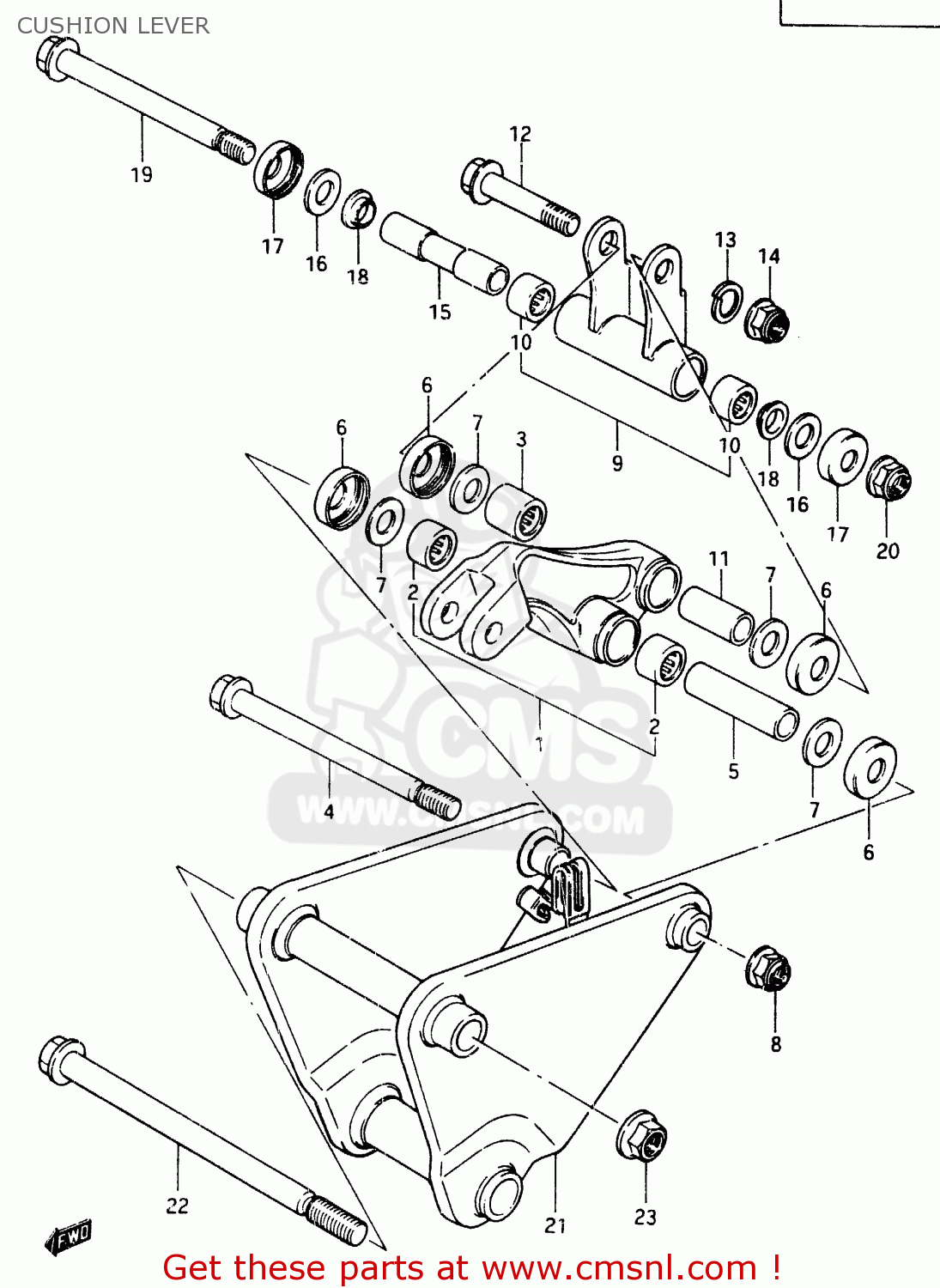

Cushion lever diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

CUSHION LEVER GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

CUSHION LEVER GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

6260033811
ref: 1

LEVER SET,REAR CUSHION

€ 0.00

2

0926317011
ref: 2

ROLLER BEARING (17X24X2

€ 13.50

3

0926317020
ref: 3

ROLLER BEARING (17X24X25)

€ 19.00

4

6262131300
ref: 4

SHAFT,RR CUSHION LEVER

€ 15.50

5

6262315500
ref: 5

SPACER,REAR CUSHION LEVER

€ 11.50

6

6126241500
ref: 6

COVER,RR SWGARM DUST SEAL

€ 7.50

7

0821112281
ref: 7

WASHER

€ 2.00

8

0831931125
ref: 8

NUT 12MM

€ 3.00

9

6260031810
ref: 9

ROD SET,REAR CUSHION

€ 47.50

10

0926317011
ref: 10

ROLLER BEARING (17X24X2

€ 13.50

11

6264615500
ref: 11

SPACER,RR CUSHION LEVER ROD UP

€ 11.50

12

6264815500
ref: 12

BOLT, UPPER

€ 7.00

13

0832121125
ref: 13

WASHER

€ 2.50

14

0831921125
ref: 14

NUT

€ 3.50

15

6265615500
ref: 15

SPACER,RR CUSHION LVR ROD LOW

€ 187.00

16

0821112281
ref: 16

WASHER

€ 2.00

17

6126241500
ref: 17

COVER,RR SWGARM DUST SEAL

€ 7.50

18

6262631301
ref: 18

SPACER,REAR CUSHION ROD

€ 8.00

19

6265731301
ref: 19

BOLT,CUSHION ROD

€ 19.00

20

0831931125
ref: 20

NUT 12MM

€ 3.00

21

6241031310
ref: 21

BRACKET,REAR SHOCK ABSORBER

€ 0.00

22

6241331300
ref: 22

SHAFT,SHOCK ABSORBER BRACKET

€ 0.00

23

0831616125
ref: 23

NUT

€ 2.50
