CYLINDER

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

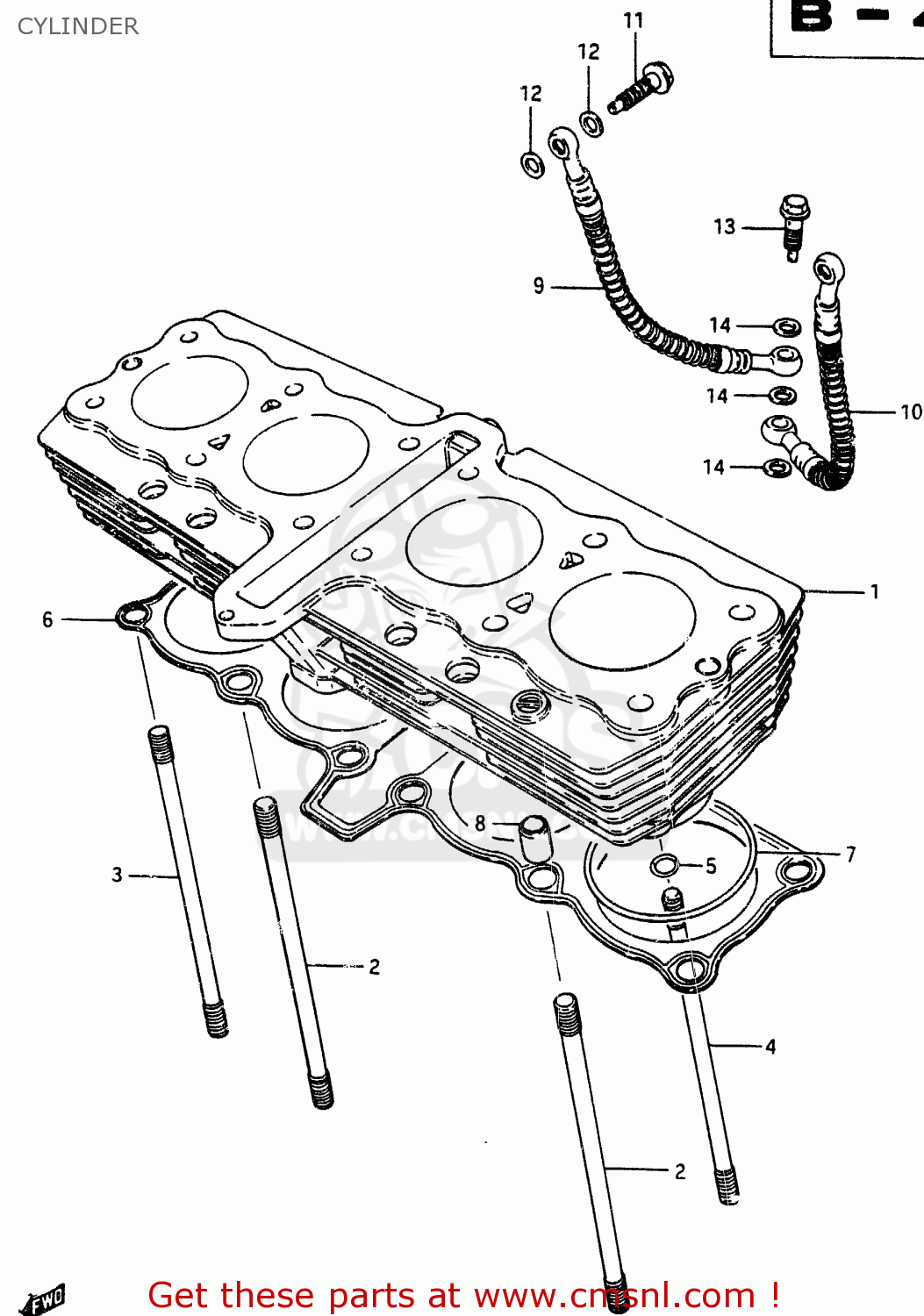

Cylinder diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

1121031308
ref: 1

CYLINDER

€ 793.00

0910810069
ref: 2

BOLT,STUD

€ 7.00

0910810047
ref: 3

STUD

€ 8.50

0910810062
ref: 4

STUD

€ 8.50

0928011005
ref: 5

O RING(D:2.4,ID:11)

€ 4.50

1124106A01
ref: 6

GASKET,CYLINDER (NAS)

€ 13.50

0928070001
ref: 7

O RING(D:2,ID:70)

€ 7.50

0920613006
ref: 8

PIN

€ 9.00

1128131304
ref: 9

HOSE,OIL

€ 73.00

1128231304
ref: 10

HOSE,OIL

€ 73.00

0936008008
ref: 11

BOLT UNION

€ 4.00

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

1128531301
ref: 13

BOLT,OIL PIPE

€ 12.50

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
