GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

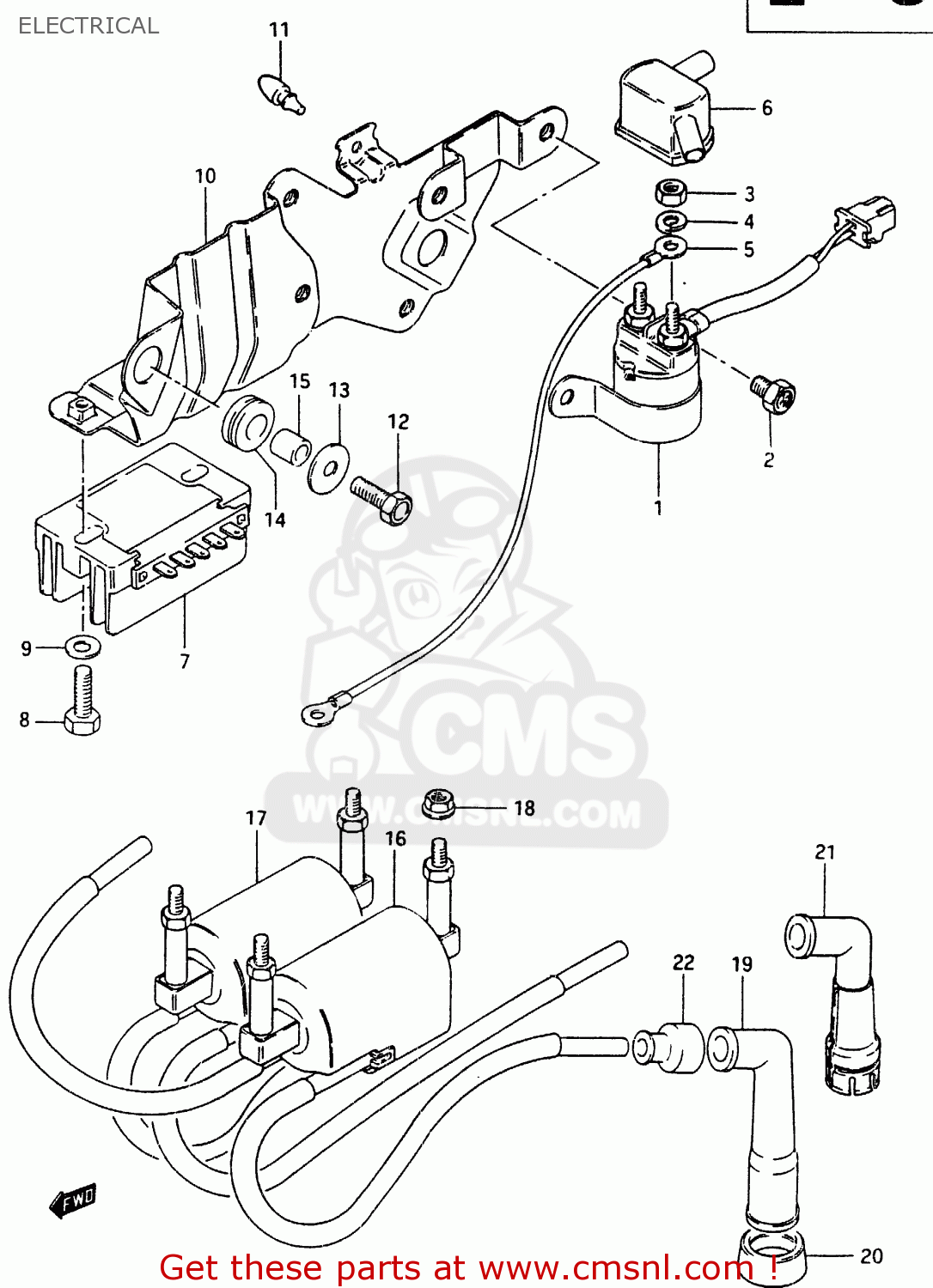

Electrical diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

ELECTRICAL GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
ELECTRICAL GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
ELECTRICAL GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3180015500
ref: 1
RELAY ASSEMBLY,STARTING MOTOR
€ 78.00
2
0912806004
ref: 2
SCREW(6X10)
0912806004
€ 1.50
3
0831011066
ref: 3
NUT
€ 2.00
4
0832121066
ref: 4
WASHER,LOCK
0832121066
€ 2.00
5
3385031310
ref: 5
WIRE,STARTER MOTOR LEAD
€ 24.00
6
3186131300
ref: 6
CAP,STARTER RELAY TERMINAL
3186131300
€ 5.00
7
3280009300
ref: 7
RECTIFIER ASSEMBLY
3280009300
€ 306.50
8
0912806006
ref: 8
BOLT(6X20)
0912806006
€ 2.00
9
0832221067
ref: 9
WASHER
0832221067
€ 2.00
10
4741031301
ref: 10
PLATE,ELECTRIC PARTS H
€ 0.00
11
0932106023
ref: 11
CUSHION
0932106023
€ 2.00
12
0110706166
ref: 12
BOLT
€ 2.00
13
0916006027
ref: 13
WASHER (6.5X20X1.2)
0916006027
€ 2.00
14
0932008007
ref: 14
CUSHION
0932008007
€ 4.00
15
0918006038
ref: 15
SPACER(6.1X9X7.5)
0918006038
€ 2.00
16
3341031310
ref: 16
COIL ASSEMBLY,IGNITION
3341031310
€ 182.00
17
3342031310
ref: 17
COIL ASSEMBLY,IGNITION NO
€ 182.00
18
0831616066
ref: 18
NUT
€ 2.50
19
3351011410
ref: 19
CAP,SPARK PLUG
3351011410
€ 24.50
20
3354124510
ref: 20
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
21
3351045411
ref: 21
E16
CAP, SPARK PLUG
3351045411
€ 29.50
22
3354298000
ref: 22
SEAL,SPARK PLU
3354298000
€ 4.50
