STEERING STEM

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

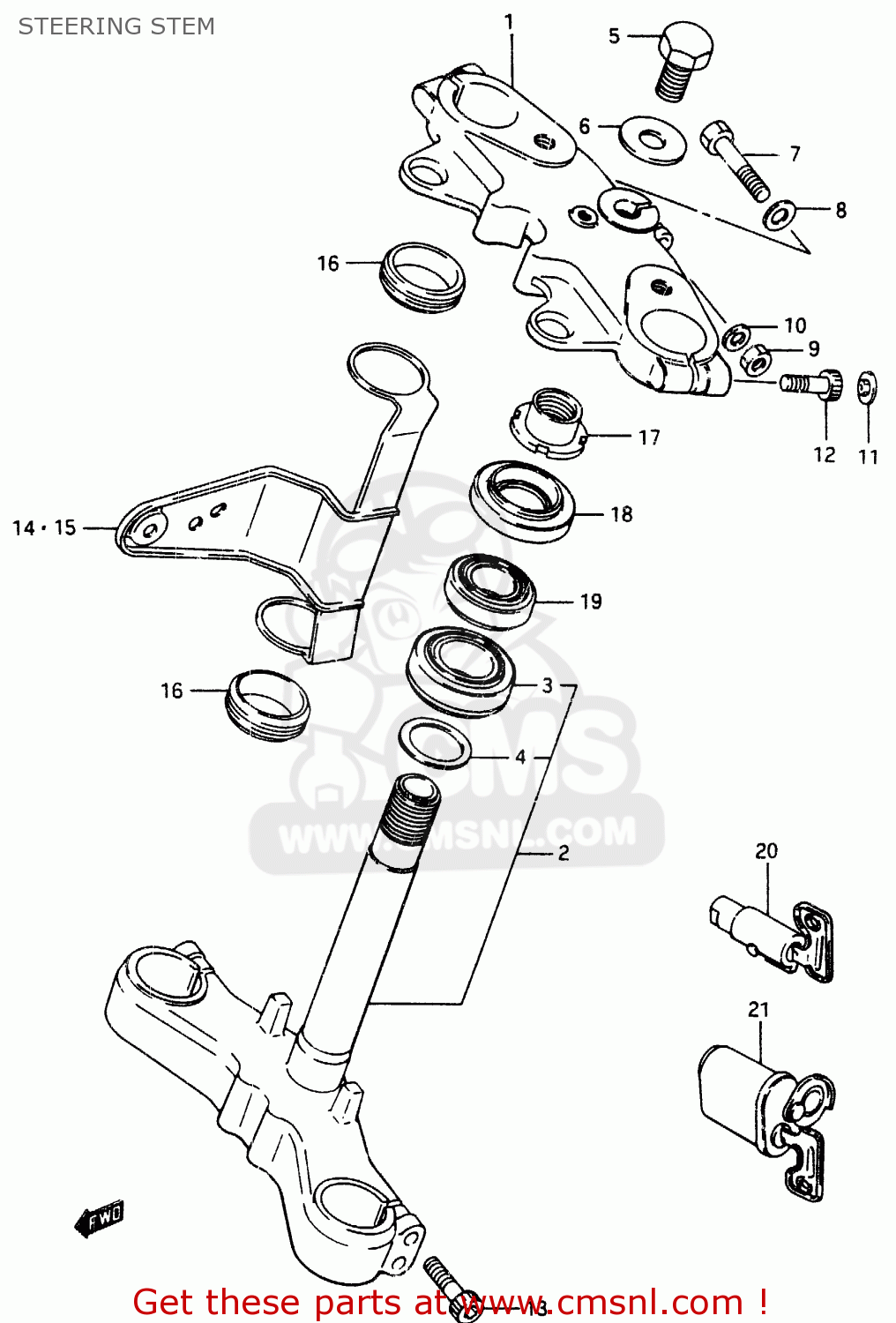

Steering stem diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

STEERING STEM GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

STEERING STEM GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

513113131515T
ref: 1

HEAD,STEERING STEM

€ 148.50

2

514103136515T
ref: 2

STEM,STEERING

€ 349.00

3

0926530005
ref: 3

BEARING

€ 49.50

4

0821130402
ref: 4

WASHER,THRUST

€ 4.00

5

5135231305
ref: 5

BOLT

€ 11.50

6

5135631305
ref: 6

WASHER,STEM HEAD

€ 4.00

7

0110708505
ref: 7

BOLT

€ 3.00

8

0832211084
ref: 8

WASHER

€ 1.50

9

0831022085
ref: 9

NUT 8MM

€ 2.00

10

0832121084
ref: 10

WASHER,LOCK,8.

€ 2.50

11

0925008010
ref: 11

CAP(OD:20)

€ 2.50

12

5135309310
ref: 12

NUT,STEM HEAD

€ 3.50

13

0711008355
ref: 13

BOLT 8X35

€ 4.00

14

515303131515T
ref: 14
GSX750EF

BRACKET, HEADLAMP RH (BLACK)

€ 29.50

15

515403131515T
ref: 15
GSX750EF

BRACKET, HEADLAMP LH (BLACK)

€ 33.00

16

5155334300
ref: 16
GSX750EF

CUSHION,HEADLAMP BRACKET

€ 4.50

17

5163134200
ref: 17

NUT,STEERING STEM

€ 23.00

18

5164340502
ref: 18

DUST SEAL,STEERING UPR

€ 8.00

19

0926525008
ref: 19

TAPER,ROLLER BEARING

€ 48.50

20

5190022662
ref: 20
E15,E22,E26

LOCK ASSEMBLY,STEERING (NEI

€ 168.50

21

5190045400
ref: 21
E17

LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE

€ 0.00

all assemblies
