GENERATOR

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

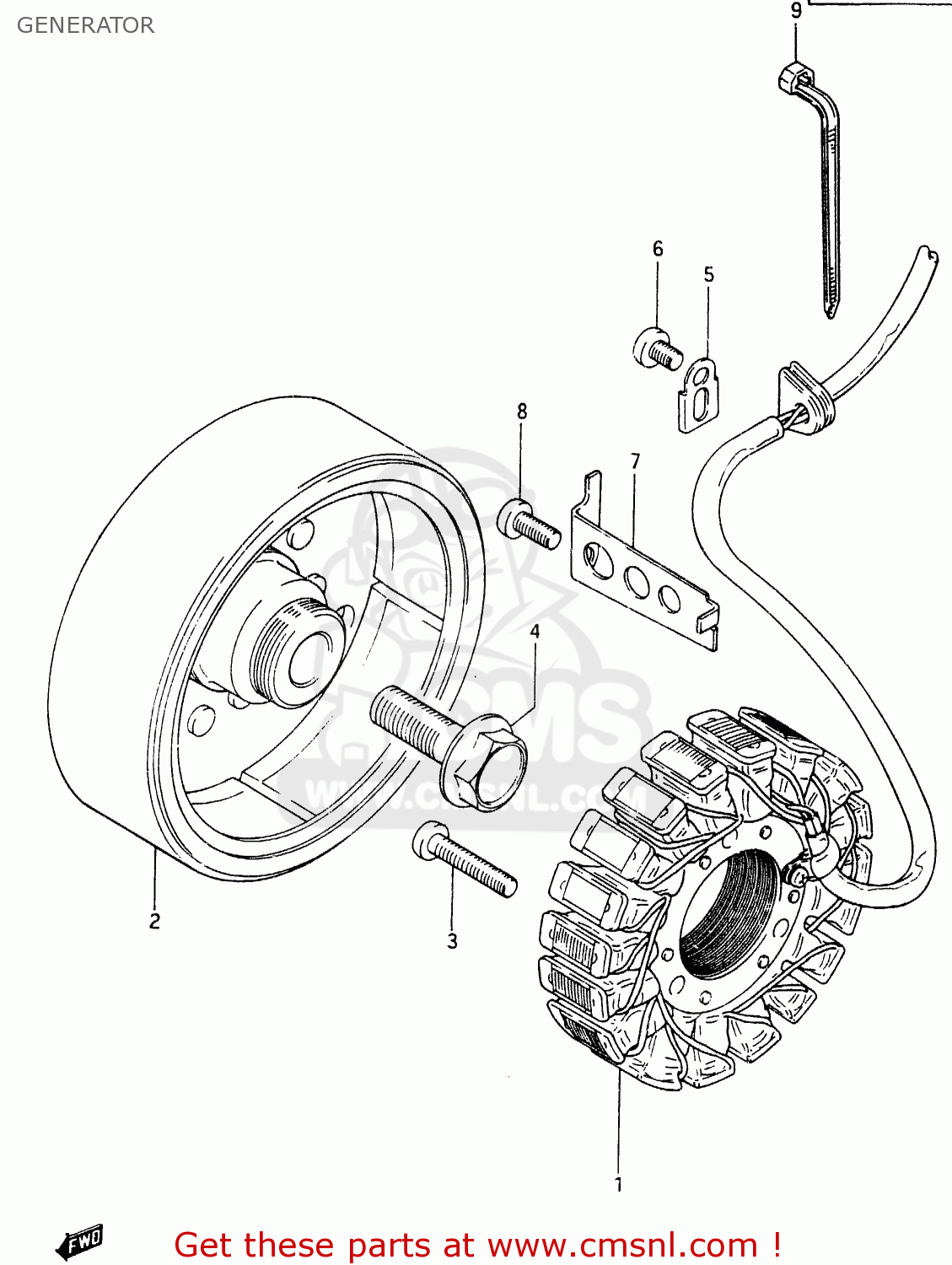

Generator diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

3140108A00
ref: 1

STARTER ASSY

€ 341.00

3140208A00
ref: 2

ROTOR ASSEMBLY

€ 403.50

0211206308
ref: 3

SCREW 6X30

€ 2.50

0910314001
ref: 4

BOLT(14X43)

€ 7.00

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205088
ref: 6

SCREW

€ 2.00

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 8

SCREW

€ 1.50

0940711401
ref: 9

CLAMP(L:95)

€ 2.50
