Buy Suzuki GSX Parts Online


OIL COOLER

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

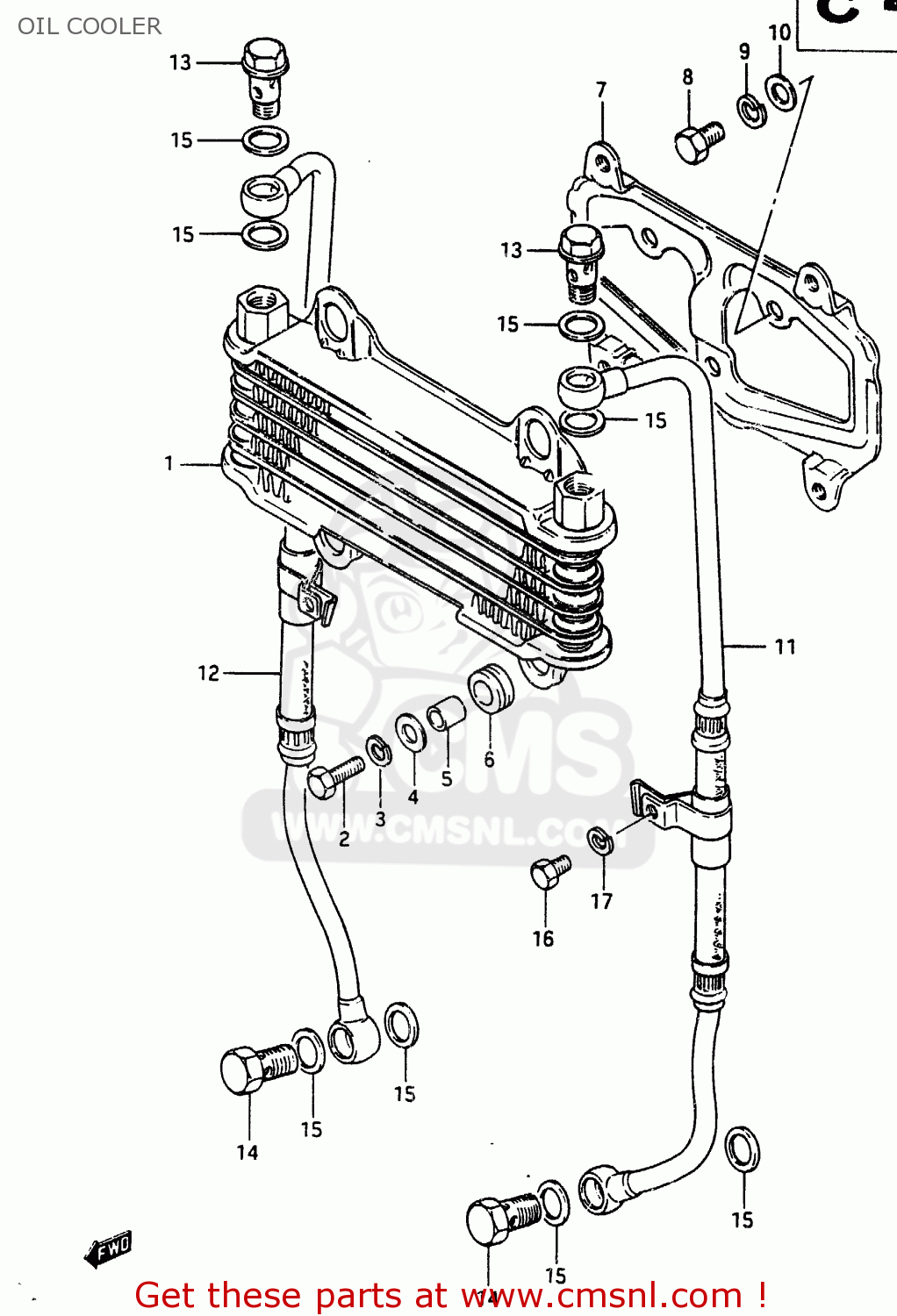

Oil cooler diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

OIL COOLER GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
OIL COOLER GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
OIL COOLER GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1660031300
ref: 1
COOLER ASSEMBLY,ENGINE OIL
1660031300
€ 349.00
2
0110706205
ref: 2
BOLT
0110706205
€ 2.00
3
0832121064
ref: 3
WASHER,LOCK
0832121064
€ 2.00
4
0916006039
ref: 4
WASHER (6.5X18X1.6)
0916006039
€ 2.00
5
0918006030
ref: 5
SPACER (6.8X10X10)
0918006030
€ 2.00
6
0932010015
ref: 6
CUSHION
0932010015
€ 2.50
7
1662031300
ref: 7
BRACKET,OIL COOLER
1662031300
€ 18.50
8
0110708205
ref: 8
BOLT
€ 2.00
9
0832121084
ref: 9
WASHER,LOCK,8.
0832121084
€ 2.50
10
0832211084
ref: 10
WASHER
0832211084
€ 1.50
11
1646031301
ref: 11
HOSE,ENGINE OIL,LEFT
1646031301
€ 102.50
12
1647031301
ref: 12
HOSE,ENGINE OIL,RIGHT
€ 123.00
13
0936012004
ref: 13
BOLT UNION
€ 13.50
14
0936014005
ref: 14
BOLT UNION
0936014005
€ 20.50
15
0916814011
ref: 15
GASKET(14X20X1.5) (NAS)
0916814011
€ 2.00
16
0110706125
ref: 16
BOLT
€ 2.00
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
