FOOTREST

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

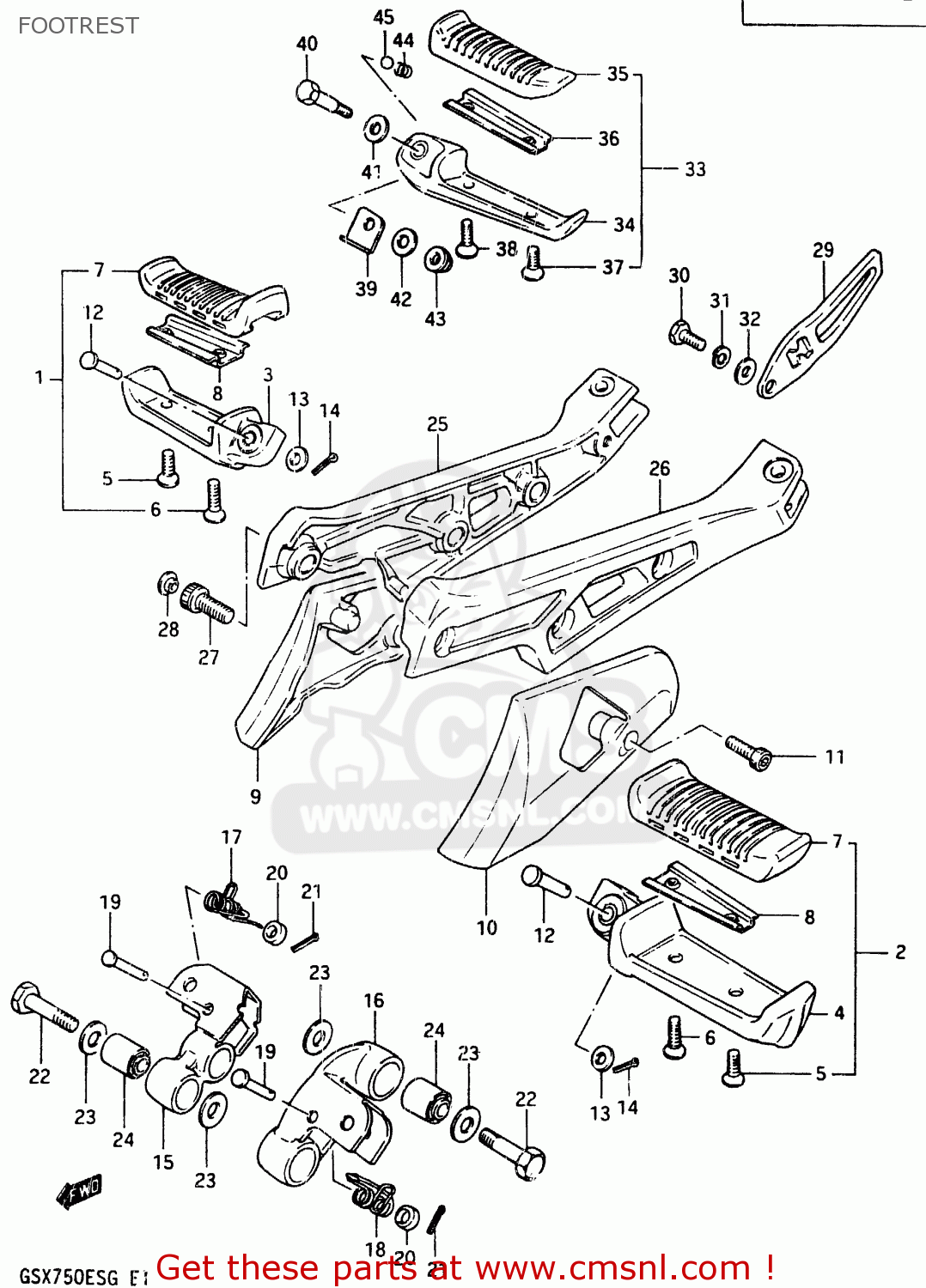

Footrest diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

FOOTREST GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
FOOTREST GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
FOOTREST GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4350131300
ref: 1
FOOTREST ASSEMBLY,FRONT,RIGHT
4350131300
€ 54.50
2
4350231300
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
4350231300
€ 50.00
3
4351031300
ref: 3
BAR,FRONT FOOTREST,RIGHT
4351031300
€ 18.00
4
4352031300
ref: 4
BAR,FR FOOTREST,L
€ 48.00
5
0211205128
ref: 5
SCREW
€ 2.50
6
0211205168
ref: 6
SCREW
0211205168
€ 2.50
7
4355131300
ref: 7
RUBBER,FOOTREST
4355131300
€ 15.50
8
4358033301
ref: 8
PLATE,FR FOOTREST RUBBER
4358033301
€ 4.50
9
4358531300
ref: 9
COVER,FRONT FOOTREST,RIGHT
€ 47.50
10
4359531300
ref: 10
COVER,FRONT FOOTREST,LEFT
4359531300
€ 33.50
11
0711006205
ref: 11
BOLT
€ 3.00
12
0920008034
ref: 12
PIN
0920008034
€ 2.00
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
0411120208
ref: 14
PIN 20X20
0411120208
€ 1.50
15
4353031300
ref: 15
HOLDER,FRONT FOOTREST,RIGHT
4353031300
€ 14.50
16
4354031300
ref: 16
HOLDER,FRONT FOOTREST,LEFT
4354031300
€ 13.00
17
0944812013
ref: 17
SPRING
0944812013
€ 6.00
18
0944812014
ref: 18
SPRING
0944812014
€ 4.50
19
0920006010
ref: 19
PIN
0920006010
€ 2.50
20
0918006074
ref: 20
SPACER (6.5X12X5.5)
0918006074
€ 2.50
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
22
0910010191
ref: 22
BOLT 10X40
0910010191
€ 2.00
23
0916010005
ref: 23
WASHER(10.5X20X3.2)
0916010005
€ 2.00
24
0931910047
ref: 24
BUSH
0931910047
€ 8.00
25
4381131300
ref: 25
BRACKET,MUFFLER,RIGHT
€ 119.00
26
4382131300
ref: 26
BRACKET,MUFFLER,LEFT
€ 77.50
27
0711010255
ref: 27
BOLT 10X25
0711010255
€ 3.50
28
4357534500
ref: 28
CAP
4357534500
€ 1.50
29
4367131300
ref: 29
GUIDE,REAR FOOT
€ 27.50
30
0110708167
ref: 30
BOLT,8X16
0110708167
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
0832121088
€ 2.00
32
0832211088
ref: 32
WASHER
0832211088
€ 2.00
33
4360031300
ref: 33
FOOTREST ASSY,PILLION,R
4360031300
€ 39.50
33
4370031300
ref: 33
FOOTREST ASSEMBLY,PILLION
4370031300
€ 27.50
34
4361045501
ref: 34
BAR,PILLION FOOTREST,RIGHT
4361045501
€ 17.00
34
4371045501
ref: 34
BAR,PILLION FOOTREST,LEFT
4371045501
€ 16.00
35
4361231300
ref: 35
RUBBER,RR FOOTREST
4361231300
€ 8.00
36
4363245501
ref: 36
PLATE,RUBBER STOPPER
4363245501
€ 2.50
37
0213205127
ref: 37
SCREW 5X12
0213205127
€ 2.50
38
0213205167
ref: 38
SCREW 5X16
0213205167
€ 2.00
39
4363509300
ref: 39
PLATE,SPRING STOP,R
4363509300
€ 3.50
39
4373509300
ref: 39
PLATE,SPRING STOP
4373509300
€ 3.00
40
0911106035
ref: 40
BOLT
0911106035
€ 4.50
41
0918108004
ref: 41
SHIM(8.2X22X0.2)
0918108004
€ 2.50
42
0832211088
ref: 42
WASHER
0832211088
€ 2.00
43
0831931067
ref: 43
NUT
0831931067
€ 2.50
44
0944005003
ref: 44
SPRING
0944005003
€ 1.50
45
0611207004
ref: 45
BALL
€ 1.50
