STARTER CLUTCH

GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

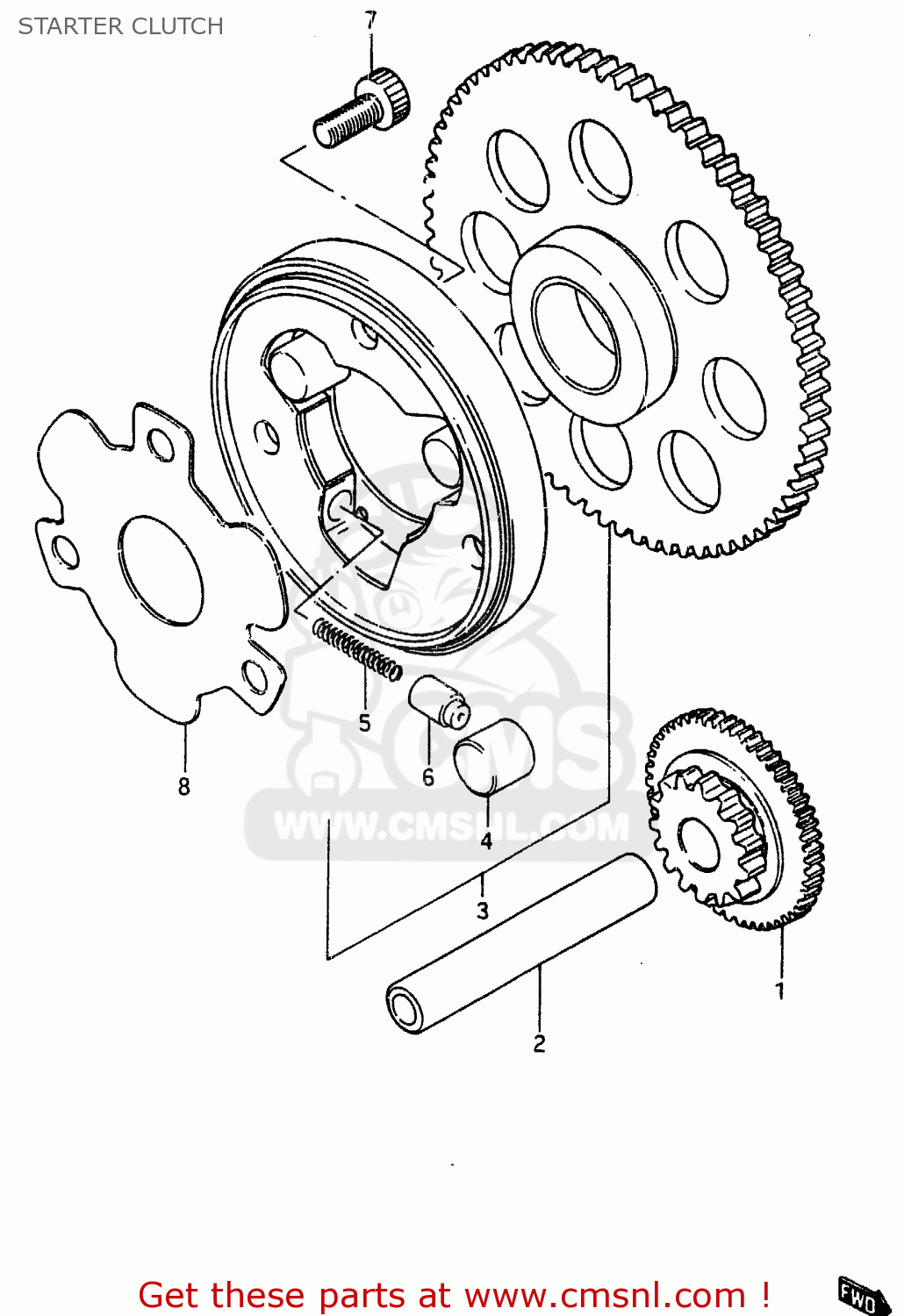

Starter clutch diagram GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

STARTER CLUTCH GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

STARTER CLUTCH GSX750ES 1985 (F) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1261131301
ref: 1

GEAR,STARTER IDLE

€ 80.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260031840
ref: 3

CLUTCH SET,STARTER

€ 152.50

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608043
ref: 7

BOLT

€ 3.00

8

1264909301
ref: 8

SHIM,STARTER CLUTCH HUB

€ 8.50
