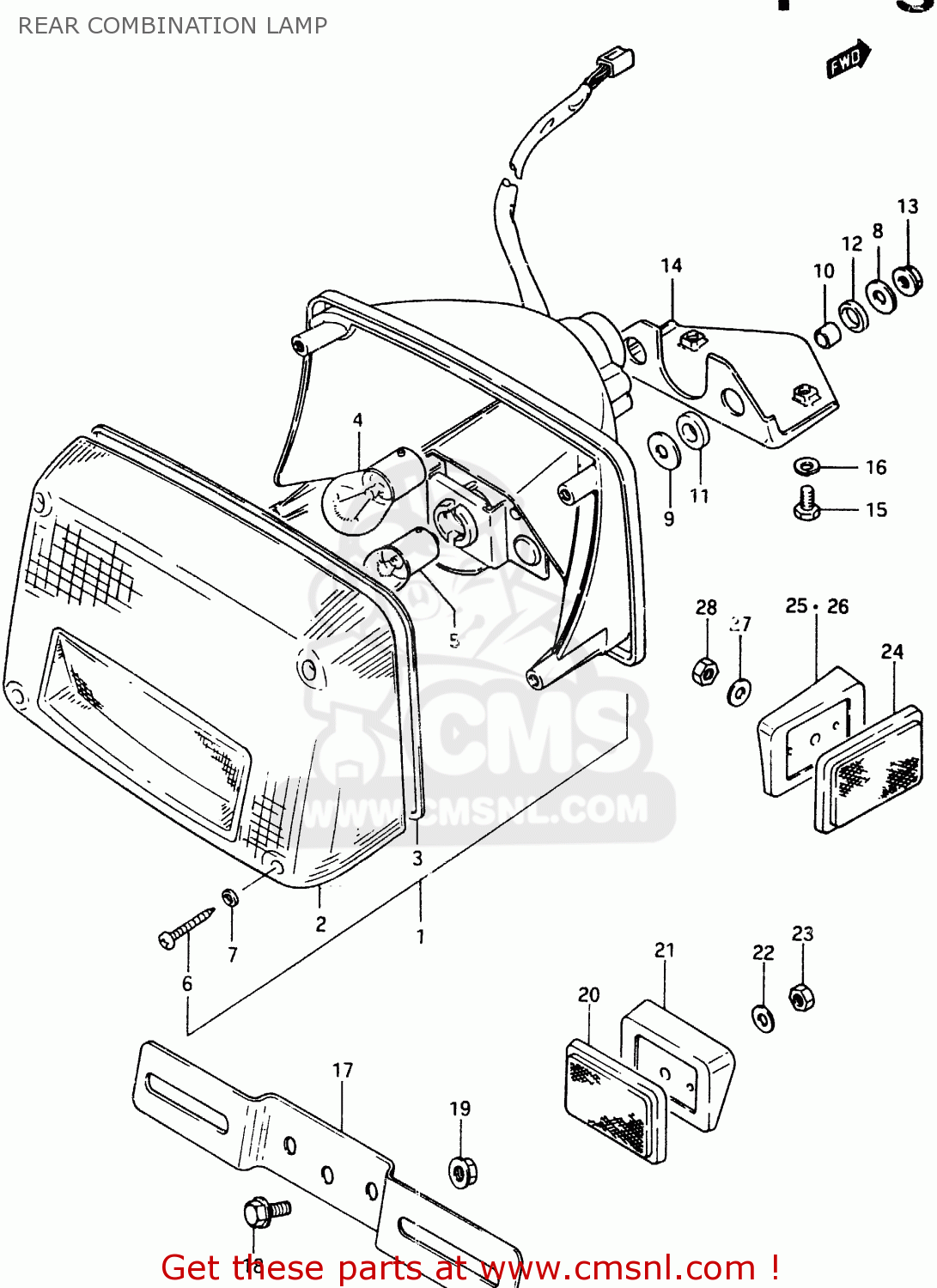

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571031330
ref: 1
E1,E6,E24

LAMP ASSEMBLY,REAR COMBINATION

€ 209.50

1

3571031380
ref: 1
MODEL F E2,E4,E16,E1

LAMP ASSY, REAR COMBINATION

€ 161.00

1

3571031350
ref: 1
MODEL F E15,E26

LAMP ASSY, REAR COMBINATION

€ 0.00

1

3571031370
ref: 1
MODEL F E17

LAMP ASSY, REAR COMBINATION

€ 161.00

1

3571031360
ref: 1
MODEL F E34,E53

LAMP ASSY, REAR COMBINATION

€ 161.00

1

3571031351
ref: 1
MODEL G E2,E15,E17,E

LAMP ASSY, REAR COMBINATION

€ 161.00

1

3571031321
ref: 1
MODEL G E4,E16,E21,E

LAMP ASSY, REAR COMBINATION

€ 161.00

1

3571031391
ref: 1
E22,E25

LAMP ASSY,RR C

€ 161.00

2

3571249031
ref: 2
E1,E6,E24

LENS

€ 43.50

2

3571249084
ref: 2
MODEL F E2,E4,E15,E1

LENS,RR COMBI

€ 43.50

2

3571249071
ref: 2
MODEL F E17

LENS

€ 44.00

2

3571249062
ref: 2
MODEL F E34,E53

LENS

€ 49.00

2

3571231321
ref: 2
MODEL G E2,E4,E15,E1

LENS

€ 53.50

2

3571249091
ref: 2
E22,E25

LENS

€ 37.50

3

3571349030
ref: 3

GASKET (NAS)

€ 13.50

4

0947112035
ref: 4
E1,E6,E24

BULB(12V23W)

€ 5.50

4

0947112046
ref: 4
E2,E4,E15,E16,E17,E1

BULB(12V21/5W)

€ 1.50

5

0947112037
ref: 5
E1,E6,E24

BULB

€ 7.00

5

0947112059
ref: 5
E2,E4,E15,E16,E17,E1

BULB

€ 4.00

6

3562749030
ref: 6

SCREW,REAR COMBINATION LAMP

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0916006057
ref: 8

WASHER

€ 2.00

9

0916006012
ref: 9

WASHER(6,5X22X1.6)

€ 2.00

10

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

11

0932009003
ref: 11

CUSHION

€ 2.00

12

0932009004
ref: 12

CUSHION

€ 2.50

13

0831626066
ref: 13

NUT

€ 2.00

14

3572631301
ref: 14

BRACKET,REAR COMBINATION LAMP

€ 8.00

15

0110706126
ref: 15

BOLT

€ 2.00

16

0832121066
ref: 16

WASHER,LOCK

€ 2.00

17

3592744110
ref: 17

PLATE,RR LICENSE

€ 22.50

18

0151706164
ref: 18

BOLT

€ 2.50

19

0831626066
ref: 19

NUT

€ 2.00

20

3597049330
ref: 20
E22,E25,MODEL F E17

REFLEX REFLECTOR,RR

€ 16.50

20

3597001A40
ref: 20
E22,E25,MODEL F E17

REFLEX REFLECTOR, REAR (RR018)

€ 0.00

21

3597731370
ref: 21
E22,E25,MODEL F E17

SPACER

€ 2.50

22

0916005013
ref: 22
E22,E25,MODEL F E17

WASHER(5.2X16X1)

€ 1.50

23

0831011056
ref: 23
E22,E25,MODEL F E17

NUT

€ 2.50

24

3595049330
ref: 24
E39

REFLECTOR,REFLEX

€ 15.00

24

3595002130
ref: 24
E39

REFLEX REFLECTOR, REAR SIDE (RR018Y)

€ 9.00

25

3597731310
ref: 25
E39

SPACER, RH

€ 3.50

26

3597831310
ref: 26
E39

SPACER, LH

€ 0.00

27

0916005013
ref: 27
E39

WASHER(5.2X16X1)

€ 1.50

28

0831011056
ref: 28
E39

NUT

€ 2.50

all assemblies
