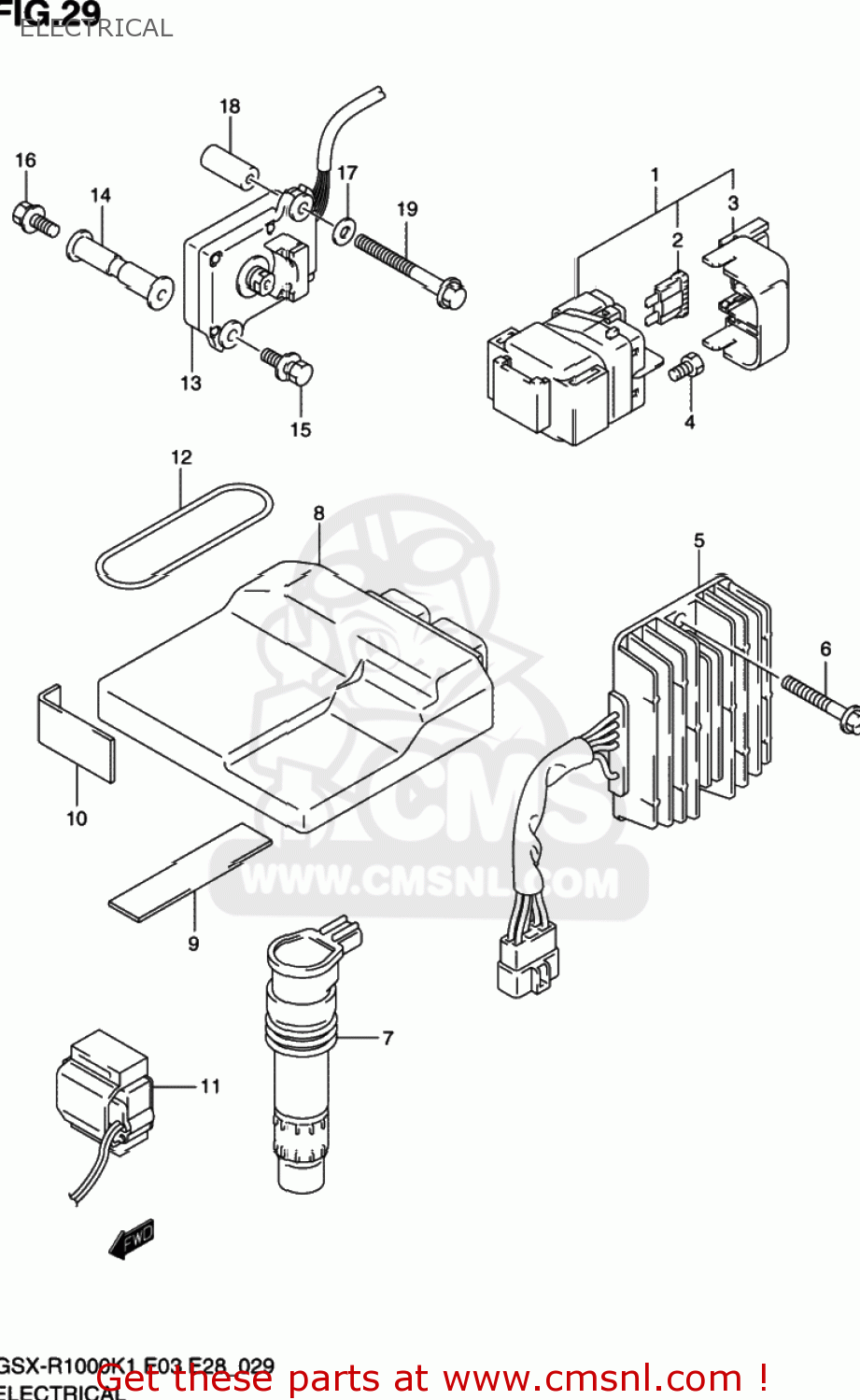

ELECTRICAL

ref

part #

description

quantity

1

3180035F00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 113.50

2

0948130101
ref: 2

FUSE(30A)

€ 6.00

3

3186126E00
ref: 3

COVER,STARTER RELAY

€ 3.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5-1

3280033E10
ref: 5-1
32800-33E21

RECTIFIER ASSEMBLY

€ 371.00

5-2

3280033E20
ref: 5-2
32800-33E21

RECTIFIER ASY

€ 371.00

6

0155006203
ref: 6
01550-0620A

BOLT

€ 2.50

7-1

3341035F00
ref: 7-1

COIL ASSY,IGNITION

€ 146.00

7-2

3341035F10
ref: 7-2

COIL ASSY,IGNITION

€ 122.50

8-1

3292040F30
ref: 8-1

CONTROL UNIT,FI

€ 0.00

8-2

3292040FD0
ref: 8-2

CONTROL UNIT,FI

€ 0.00

9

3365207D00
ref: 9

PROTECTOR(80X80X2)

€ 4.50

9

3365207D00
ref: 9

PROTECTOR(80X80X2)

€ 4.50

10

3365137000
ref: 10

PROTECTOR(170X95X3.0)

€ 5.00

10

3365137000
ref: 10

PROTECTOR(170X95X3.0)

€ 5.00

11

3396002F00
ref: 11

SENSOR ASSY,FUEL CUT

€ 85.00

12

0928070004
ref: 12

O RING(D:3.53,ID:69.44)

€ 3.50

13

3397019D10
ref: 13

ACTUATOR ASSY

€ 546.00

14

3397140F00
ref: 14

SPACER,ACTUATOR

€ 25.00

15

0911606025
ref: 15

BOLT(6X25)

€ 2.50

16

0911606184
ref: 16

BOLT(6X16)

€ 0.00

17

0916006109
ref: 17

WASHER(6.5X18X1.6)

€ 2.00

18

0918006323
ref: 18

SPACER(6.2X15.5X35)

€ 5.00

19

0155006703
ref: 19
01550-0670B

BOLT

€ 2.50

all assemblies
