SEAT TAIL BOX (MODEL K2)

GSXR1000 2002 (K2) USA (E03)

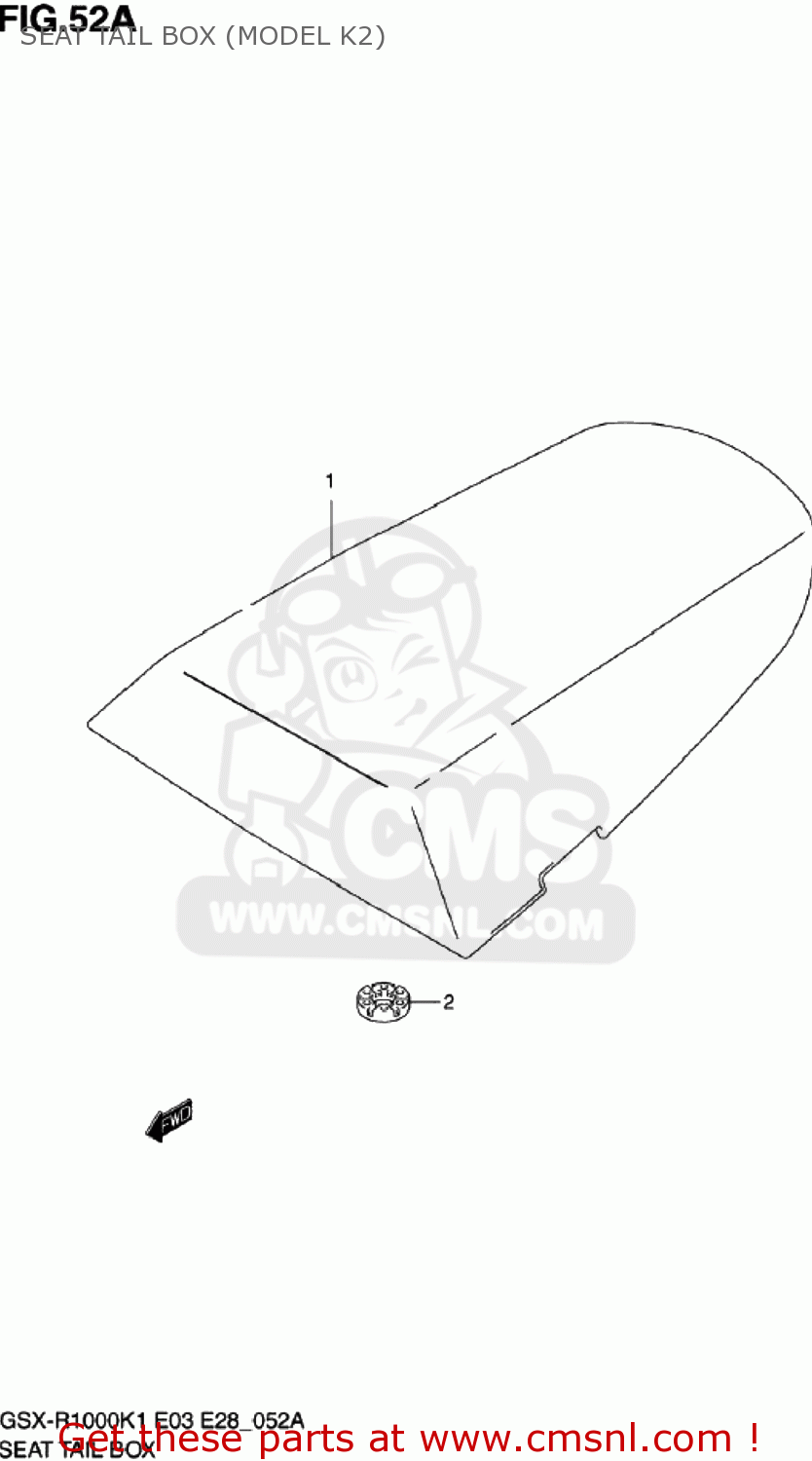

Seat tail box (model k2) diagram GSXR1000 2002 (K2) USA (E03)

SEAT TAIL BOX (MODEL K2) GSXR1000 2002 (K2) USA (E03)

SEAT TAIL BOX (MODEL K2) GSXR1000 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4555040F10019
ref: 1-1

BOX,SEAT TAIL

€ 57.50

1-2

4555040F1033J
ref: 1-2

BOX,SEAT TAIL

€ 167.50

1-3

4555040F10Y7L
ref: 1-3

BOX,SEAT TAIL(BLACK)

€ 178.00

2

4521331300
ref: 2

CUSHION

€ 1.50
