FRAME

GSXR1000 2002 (K2) USA (E03)

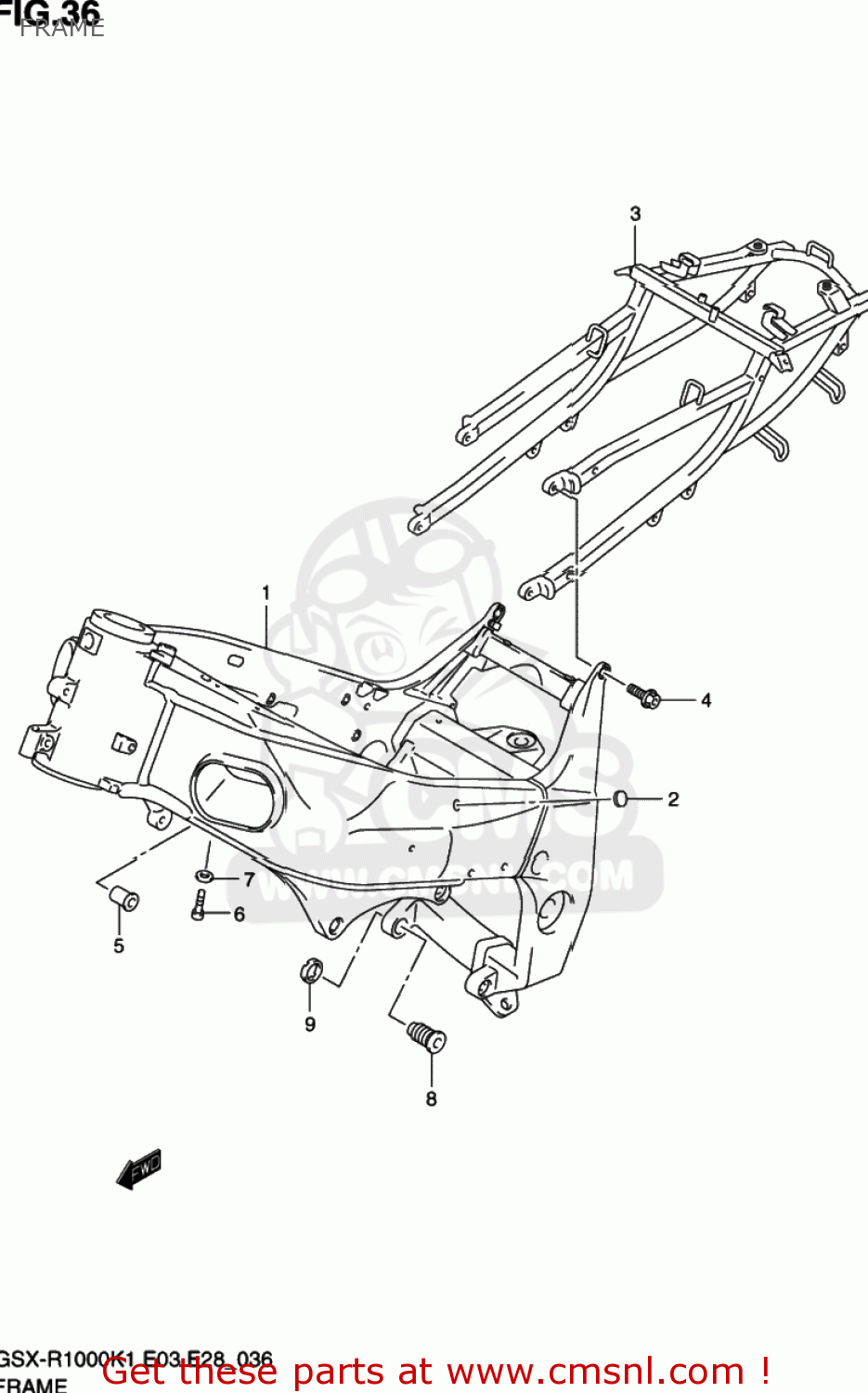

Frame diagram GSXR1000 2002 (K2) USA (E03)

FRAME GSXR1000 2002 (K2) USA (E03)

FRAME GSXR1000 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110040F00
ref: 1-1
41100-40F01

FRAME COMP

€ 1,668.00

1-2

4110040F10
ref: 1-2
41100-40F11

FRAME COMP

€ 976.00

2

4358533E00
ref: 2

CAP,TANK RAIL

€ 9.00

3-1

4120040F00
ref: 3-1
41200-40F02

RAIL,SEAT

€ 978.00

3-2

4120035F20
ref: 3-2
41200-35F24

RAIL COMP,SEAT

€ 892.50

4

4123335F00
ref: 4
41233-35F0V

BOLT,SEAT RAIL

€ 9.50

5-1

4191133E00
ref: 5-1
41911-40F01

SPACER,ENGINE MOUNTING

€ 16.50

5-2

4191140F01
ref: 5-2

SPACER,ENGINE MOUNTING

€ 16.50

6

0910608149
ref: 6
09106-08170

BOLT

€ 3.00

7

0916408022
ref: 7

WASHER

€ 4.00

8

4192135F00
ref: 8

BOLT,CRANK CASE ADJUST

€ 35.00

9

4192233E00
ref: 9

NUT,CRANK CASE ADJUST BOLT

€ 18.50
