FUEL PUMP (MODEL K2)
GSXR1000 2002 (K2) USA (E03)

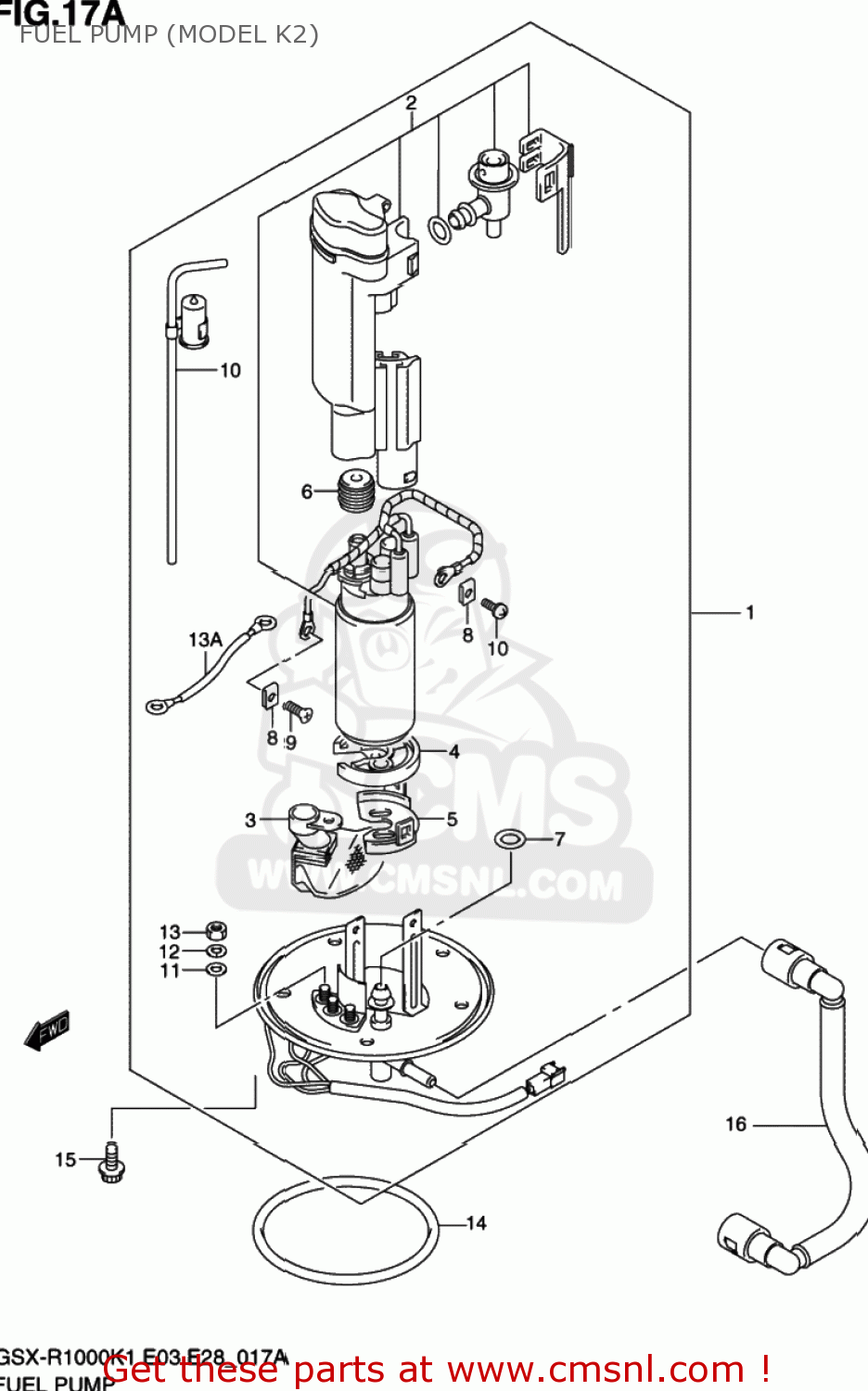

Fuel pump (model k2) diagram GSXR1000 2002 (K2) USA (E03)
FUEL PUMP (MODEL K2) GSXR1000 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510035F10
ref: 1
PUMP ASSY,FUEL
€ 1,096.50
2
1541042F00
ref: 2
FILTER ASSY,FUEL
€ 320.00
3
1542035F01
ref: 3
STRAINER,FUEL PUMP
€ 55.00
4
1511135F00
ref: 4
CUSHION
€ 8.50
5
1511242F00
ref: 5
HOLDER,FUEL PUMP
€ 18.50
6
1511435F00
ref: 6
BUSH,FUEL PUMP
€ 17.00
7
1511335F00
ref: 7
O RING
€ 7.50
8
1511535F00
ref: 8
NUT
€ 10.50
9
1511635F10
ref: 9
SCREW
€ 6.00
10
1517035F10
ref: 10
THERMISTOR
€ 267.00
11
1517135F00
ref: 11
WASHER
€ 6.00
12
1517235F00
ref: 12
WASHER,SPRING
€ 4.00
13
1517335F00
ref: 13
NUT
€ 4.50
13A
1511935F10
ref: 13A
WIRE
€ 19.50
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
0712006123
ref: 15
07120-0612B
BOLT
€ 3.50
16
1581035F00
ref: 16
HOSE,FUEL
€ 70.50
