TURN SIGNAL LAMP (MODEL K1)
GSXR1000 2002 (K2) USA (E03)

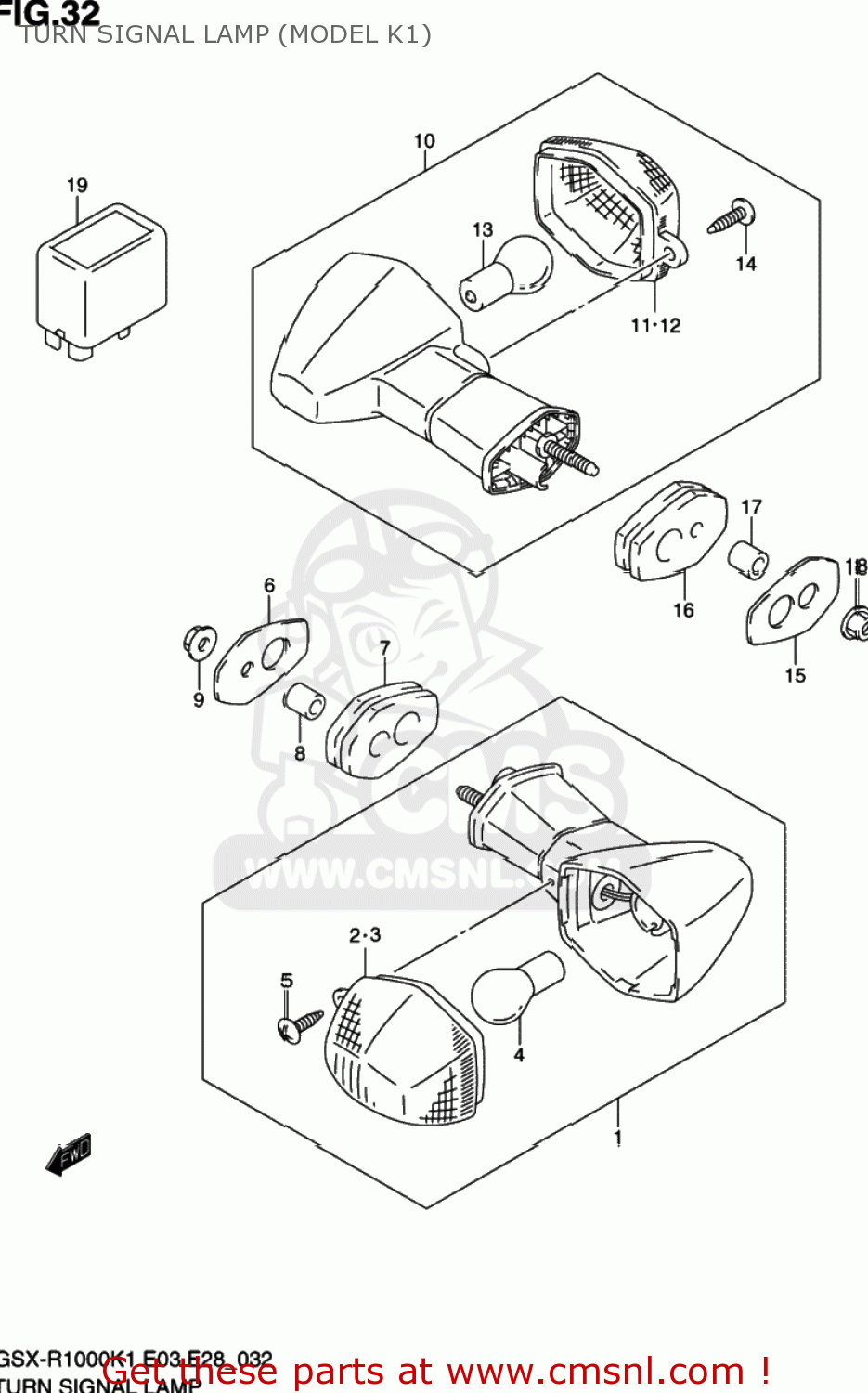

Turn signal lamp (model k1) diagram GSXR1000 2002 (K2) USA (E03)
TURN SIGNAL LAMP (MODEL K1) GSXR1000 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560131F10
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
€ 69.00
1-2
3560231F10
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
€ 69.00
2
3561231F30
ref: 2
LENS
€ 7.00
3
3563231F30
ref: 3
LENS
€ 7.00
4
0947112045
ref: 4
BULB(12V21W)
€ 5.00
5
0324204163
ref: 5
03242-0416B
SCREW
€ 4.50
6
3562931F00
ref: 6
PLATE,FR TURNSIGNAL
€ 4.00
7
3569031F00
ref: 7
CUSHION,FR TURNSIGNAL
€ 19.50
8
0918005301
ref: 8
SPACER(5.5X9.5X10)
€ 2.50
9
0831610053
ref: 9
08316-1005A
NUT
€ 2.50
10-1
3560331F30
ref: 10-1
LAMP ASSY,RR TURNSIGNAL,R
€ 81.50
10-2
3560431F30
ref: 10-2
LAMP ASSY,RR TURNSIGNAL,L
€ 69.00
11
3563231F30
ref: 11
LENS
€ 7.00
12
3561231F30
ref: 12
LENS
€ 7.00
13
0947112045
ref: 13
BULB(12V21W)
€ 5.00
14
0324204163
ref: 14
03242-0416B
SCREW
€ 4.50
15
3562931F00
ref: 15
PLATE,FR TURNSIGNAL
€ 4.00
16
3569031F00
ref: 16
CUSHION,FR TURNSIGNAL
€ 19.50
17
0918005301
ref: 17
SPACER(5.5X9.5X10)
€ 2.50
18
0831610053
ref: 18
08316-1005A
NUT
€ 2.50
19
3861003F00
ref: 19
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
