MUFFLER
GSXR1000 2002 (K2) USA (E03)

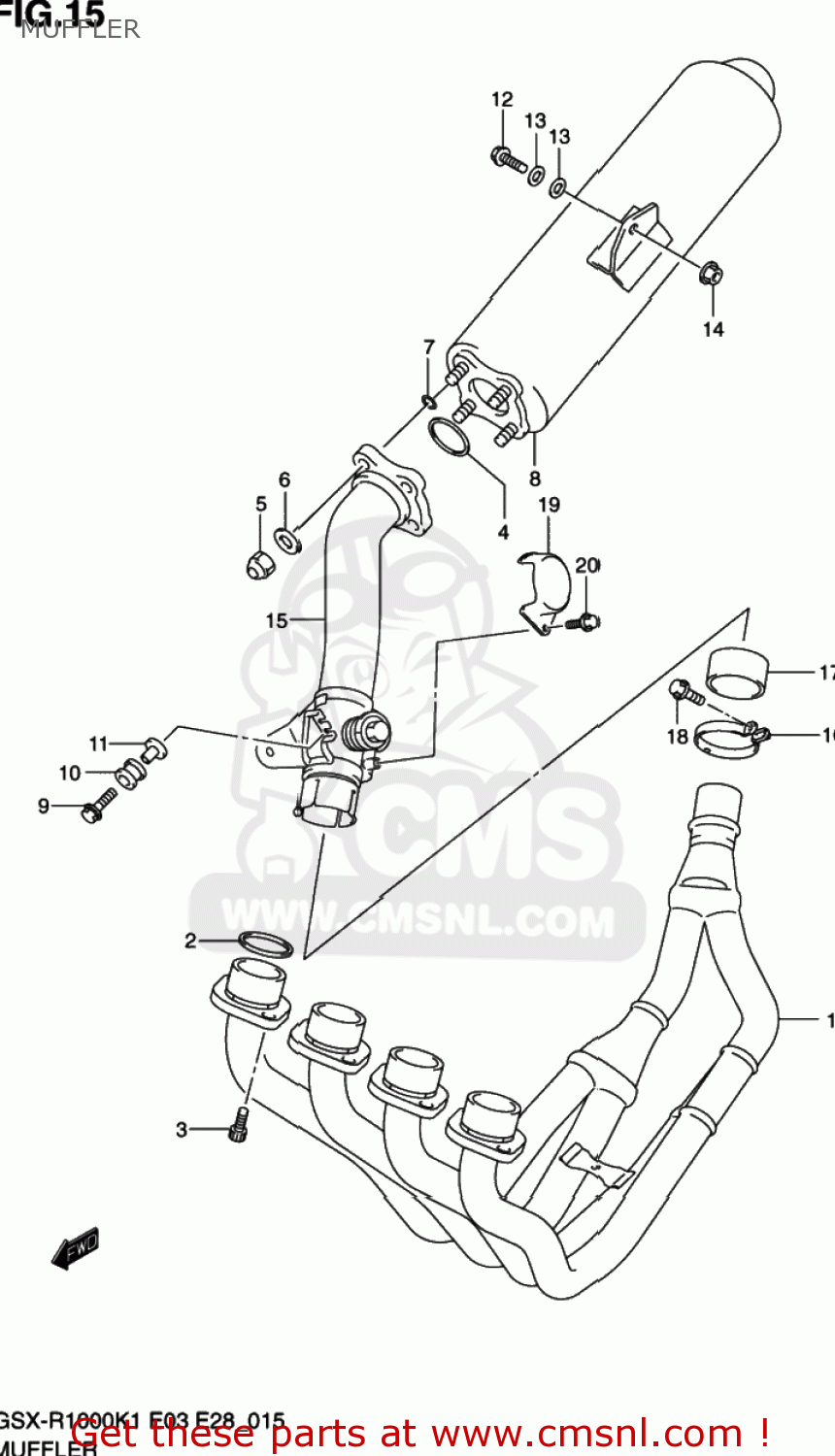

Muffler diagram GSXR1000 2002 (K2) USA (E03)
MUFFLER GSXR1000 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410040F00
ref: 1
EXHAUST
€ 1,124.50
2
1418146E00
ref: 2
GASKET,EXHAUST PIPE
€ 6.50
3
0713008253
ref: 3
07130-0825B
BOLT
€ 3.50
4
1418102F00
ref: 4
GASKET,MUFFLER JOINT (NAS)
€ 7.00
5
0915908116
ref: 5
NUT
€ 7.50
6
0916008059
ref: 6
WASHER(8.5X18X1.6)
€ 2.00
7
0928008012
ref: 7
O RING(D:1.9,ID:7.8)
€ 4.00
8
1431040F00H01
ref: 8
BODY,MUFFLER
€ 774.00
9
0911808152
ref: 9
09118-08152-A05
BOLT 8X45
€ 5.00
10
0932012048
ref: 10
CUSHION
€ 5.00
11
0918008152
ref: 11
SPACER(8.6X12X24.2)
€ 6.00
12
0910308365
ref: 12
BOLT(8X35)
€ 3.50
13-1
0916008131
ref: 13-1
09160-08130
WASHER (8.5X24X1.6)
€ 2.00
13-2
0916008081
ref: 13-2
WASHER(8.5X23X1.5)
€ 3.00
14
0836125088
ref: 14
08361-2508A
NUT
€ 2.50
15-1
1420040F00
ref: 15-1
JOINT
€ 260.00
15-2
1420040F10
ref: 15-2
JOINT
€ 638.50
16
1445940F00
ref: 16
CLAMP,CONNECTOR
€ 15.50
17-1
1477146E00
ref: 17-1
CONNECTOR,MUFFLER
€ 13.50
17-2
1477140F00
ref: 17-2
CONNECTOR,JOINT
€ 18.50
18
0155008403
ref: 18
01550-0840A
BOLT
€ 3.50
19
1428040F00
ref: 19
COVER,EXHAUST VALVE
€ 9.00
20-1
0910306078
ref: 20-1
BOLT(6X8)
€ 2.00
20-2
0910606075
ref: 20-2
BOLT(6X12)
€ 2.50
