RADIATOR

GSXR1000 2002 (K2) USA (E03)

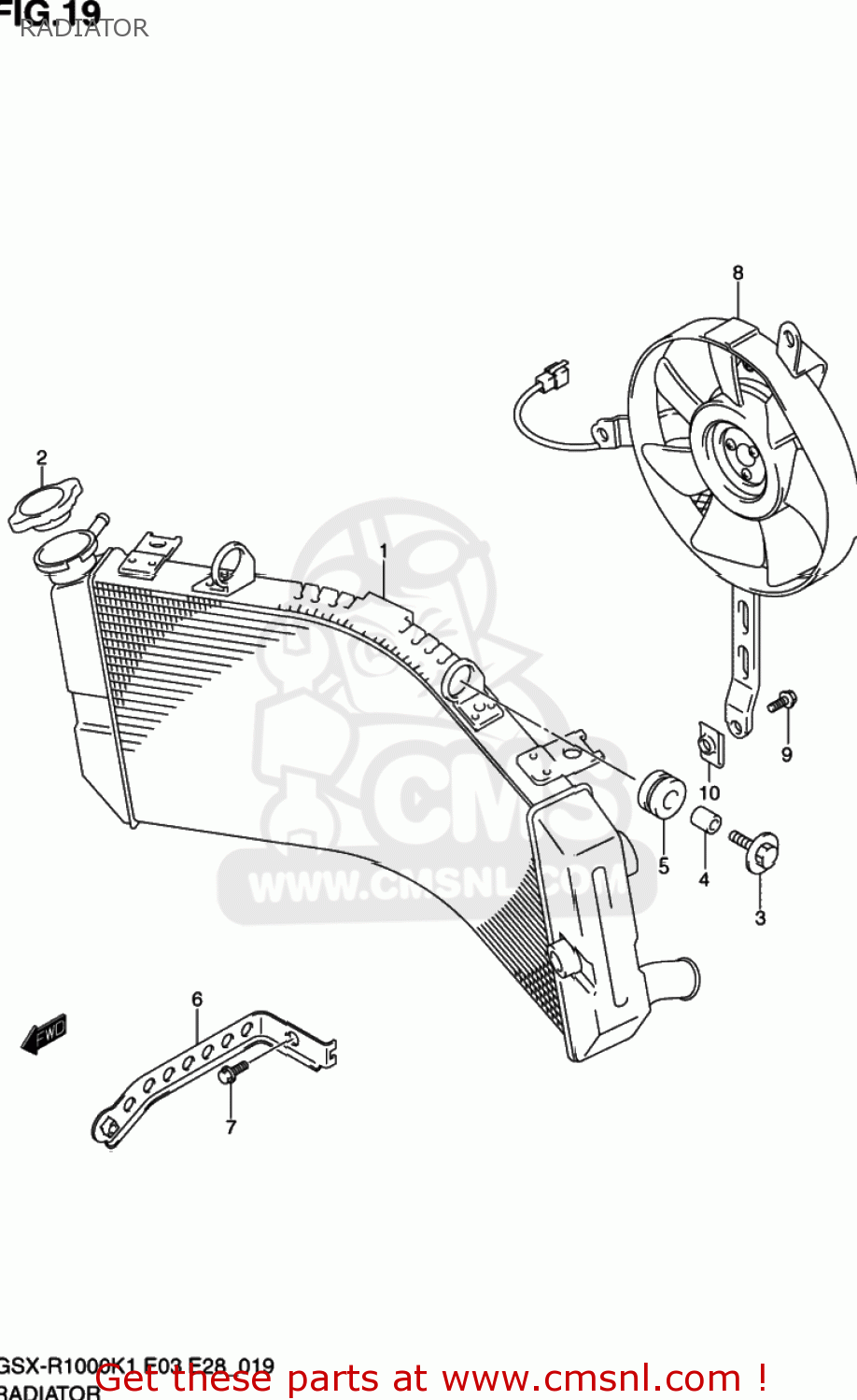

Radiator diagram GSXR1000 2002 (K2) USA (E03)

RADIATOR GSXR1000 2002 (K2) USA (E03)

RADIATOR GSXR1000 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1771040F00
ref: 1-1
17710-40F10

RADIATOR ASSY,

€ 756.50

1-2

1771040F10
ref: 1-2

RADIATOR ASSY,WATER

€ 756.50

2

1773012C20
ref: 2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4-1

0918006290
ref: 4-1

SPACER(6.5X10X12)

€ 2.50

4-2

0918006293
ref: 4-2

SPACER(6.5X10X14)

€ 2.00

5

0932010042
ref: 5

CUSHION

€ 4.00

6

1775035F01
ref: 6

BRACKET,RADIATOR

€ 11.00

7

0155006123
ref: 7
01550-0612A

BOLT

€ 2.50

8

1781040F00
ref: 8

FAN ASSY,RADIATOR,R

€ 491.50

9

0155006103
ref: 9
01550-0610A

BOLT

€ 2.50

10

0914806015
ref: 10

NUT

€ 3.50
